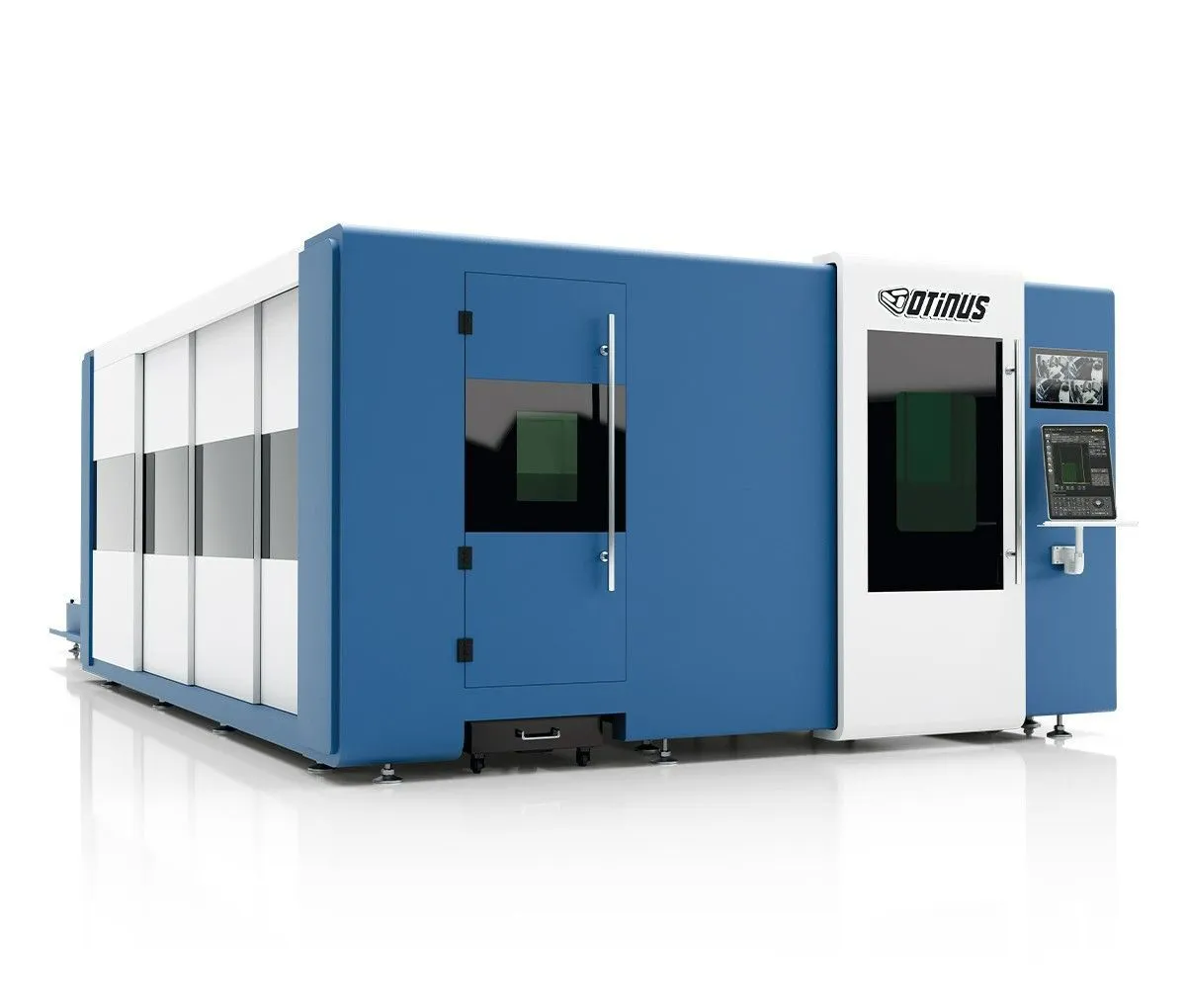

NEW OTINUS FLD-3015-2000W

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specifications
Max sheet size: 120 x 60 in
Positioning accuracy of X/Y axes: ±0.05 mm
Positioning repeatability of X/Y axes: ±0.03 mm
Max idle speed: 120000 mm/min
Max travel acceleration: 1.5 G
Max load capacity: 2667 lb
Nominal power output: 2.0 kW
Power consumption: 15.0 kW
Source brand: MAX Photonics and Raycus as available options for selection
Power supply: ~3x480 V 60 Hz or other
Ingress protection rating: IP54

Max cutting thickness
Mild steel: 8 mm
Stainless steel: 5 mm
Aluminum: 3 mm
Brass: 2 mm

Turntable for cutting sections

The machine is equipped with a turntable that features pneumatic and self-centering chucks at the front and rear of the device. The turntable was designed to position sections relative to the laser head. This solution ensures easy cutting of sections including cutting through walls.

Parameters

Maximum length of a section: 240 in
Chuck diameter: 9 in
Maximum turntable load capacity: 667 lb

Note: Images provided in the quote are for reference only, and the actual machines may appear differently.

Max sheet size: 120 x 60 in
Positioning accuracy of X/Y axes: ±0.05 mm
Positioning repeatability of X/Y axes: ±0.03 mm
Max idle speed: 120000 mm/min
Max travel acceleration: 1.5 G
Max load capacity: 2667 lb
Nominal power output: 2.0 kW
Power consumption: 15.0 kW
Source brand: MAX Photonics and Raycus as available options for selection
Power supply: ~3x480 V 60 Hz or other
Ingress protection rating: IP54
