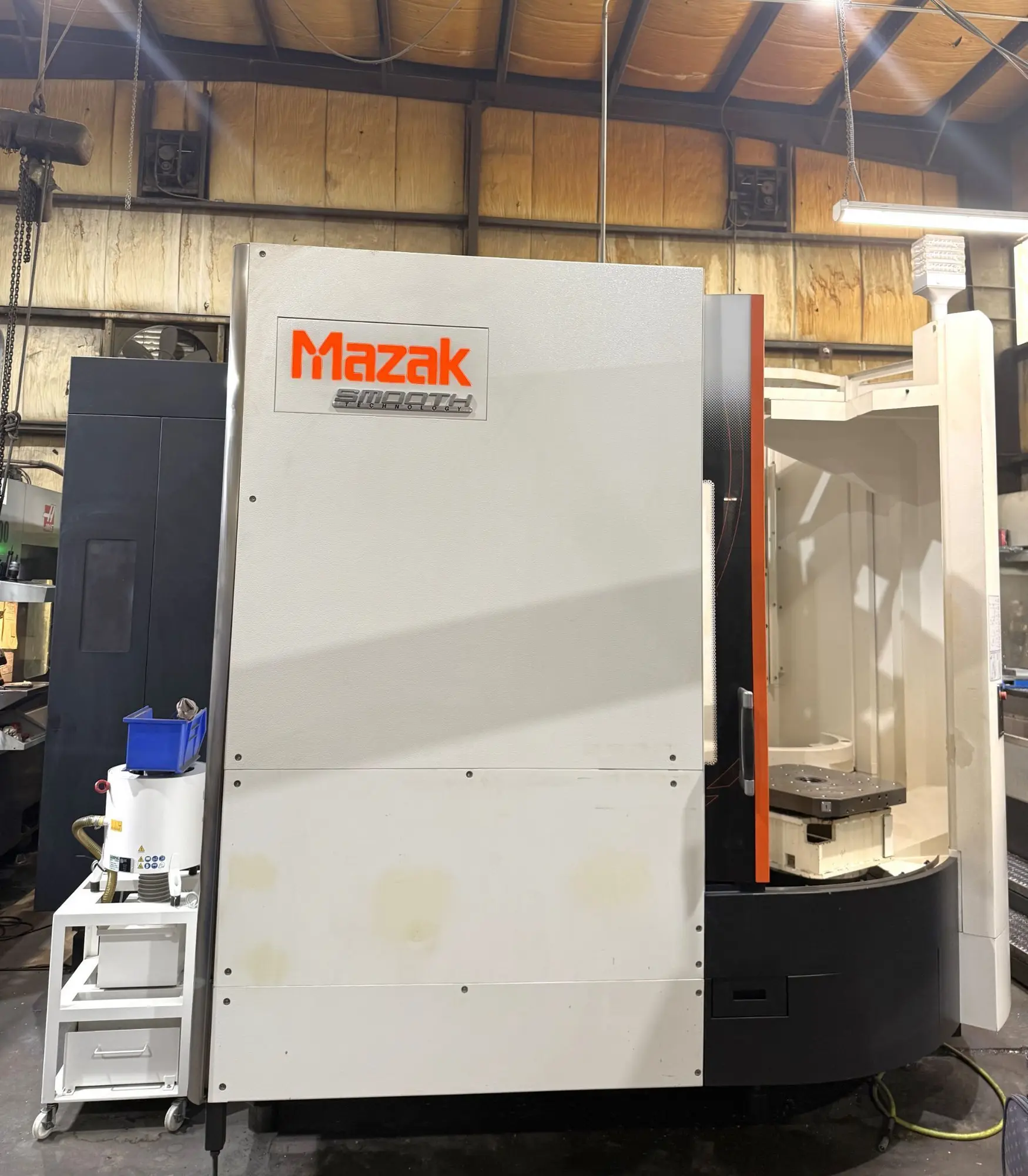

2019 MAZAK HCR 5000/5 AXIS Horizontal Machining Center, features 28.74" travel in X, Y, Z axes, 47 hp, 18,000 RPM, 120 ATC, and CAT 40 Taper (Big Plus). Comes with 19.67" square pallet and 5-axis capability. A reliable choice for complex machining tasks. MACHINE IS COMING OUT OF PRECISION SHOP, SINGLE SHIFT ENVIRONMENT.
HOURS OF USE (AS OF 6/6/2025):
- AUTO OPERATING: 3,337 HOURS
- AUTO CUT: 2,726 HOURS
- TOTAL CUT: 1,065 HOURS
| X | 28.74" | 730 mm |
| Y | 28.74" | 730 mm |
| Z | 28.74" | 730 mm |
| Power | 47 hp | 35 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 40 (Big Plus) | CAT 40 (Big Plus) |
| Pallet-W | 19.67" | 499.62 mm |
| Pallet-L | 19.67" | 499.62 mm |
| # Axis | 5 | 5 |
| Weight | 33,907lbs. | 33,907lbs. |
Specifications:
PALLET SIZE 19.67"
NUMBER OF PALLETS 2
X-AXIS TRAVEL 28.74"
Y-AXIS TRAVEL 28.74"
Z-AXIS TRAVEL 28.74"
A-AXIS (TILT) TRAVEL 225 DEGREES
C-AXIS (ROTATION) TRAVEL 360,000 DEGREES
SPINDLE SPEED 18,000 RPM
SPINDLE MOTOR 47 hp
SPINDLE TAPER CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC) 120
Weight 33,907
SMOOTH X FULL 5-AXIS SIMULTANEOUS CONTROL
120 TOOL CAPACITY
AUTOMATIC PALLET CHANGER
THROUGH SPINDLE COOLANT
1000 PSI SUPER FLOW V8A HIGH PRESSURE PUMP
RENISHAW RMP600 PROBE AND MEASURING SYSTEM
MIST COLLECTOR
CONCEPT DUAL BELT CHIP CONVEYOR
SMOOTH ENGRAVING FUNCTION
