USED HITACHI UX2-D160W

Hitachi UX2-D160W Ink Jet Printer with Print Head and Stainless Steel Stand
Hitachi UX2-D160W continuous ink jet printer with print head and stainless steel mobile stand. Designed for high-speed coding and marking applications with multi-line printing capability and support for barcodes and 2D codes. Suitable for industrial and washdown environments with IP65 protection rating.
Printer Specifications

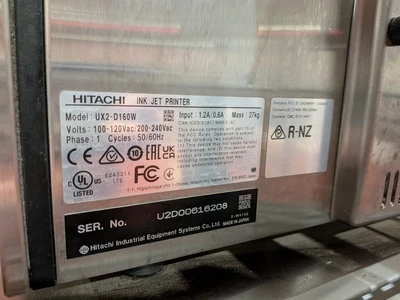

Manufacturer: Hitachi
Model: UX2-D160W

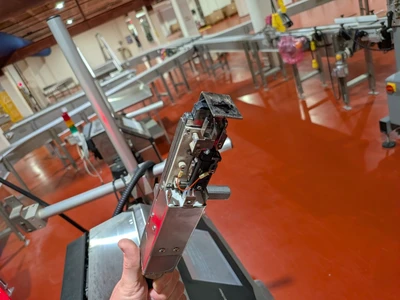

Includes print head
Maximum print lines: Up to 6 lines
Nozzle size: 65 μm
Character height: 2–10 mm
Maximum print speed:
Standard: up to 1,538 characters per second
Optional high-speed configuration: up to 3,076 characters per second
Message storage capacity: 300 messages (expandable up to 2,000)
Barcode & Code Capabilities
Code39, ITF, NW-7, JAN-13, Code128, UPC-A / UPC-E, Data Matrix, QR codes
Interface & Controls

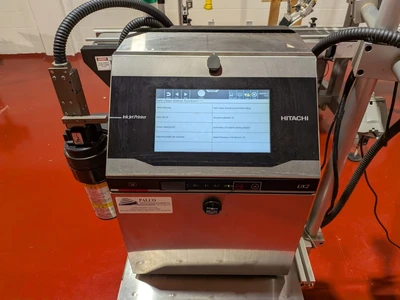

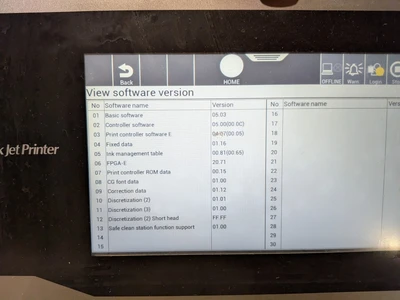

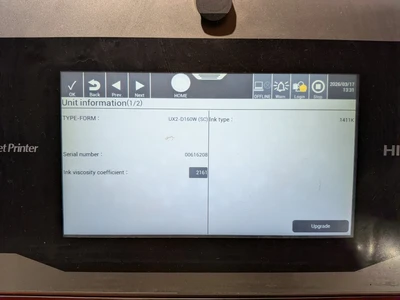

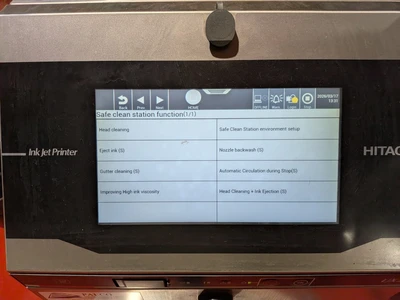

10.1 in. color TFT LCD touchscreen
Resolution: 1024 × 600
Communication: Ethernet (Modbus, EtherNet/IP, OPC-UA)
Serial: RS-232C
Construction
Protection rating: IP65
Suitable for washdown environments

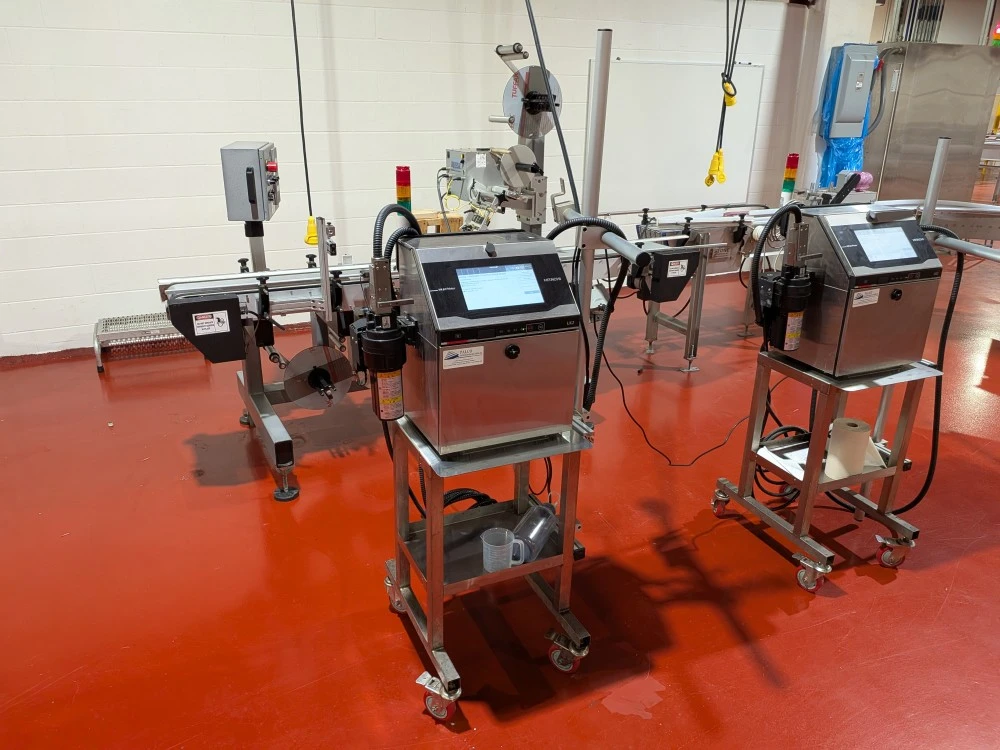

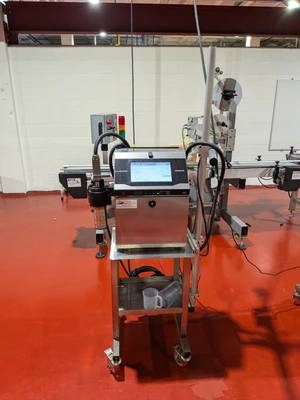

Stainless steel stand with casters

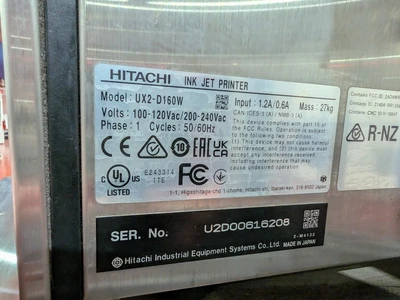

Electrical Requirements
100–120 Volt or 200–240 Volt
Single phase
50/60 Hz
Overall Dimensions & Weight
18.1 in. L x 16.7 in. W x 21.0 in. H
Approximate weight: 60 lbs
