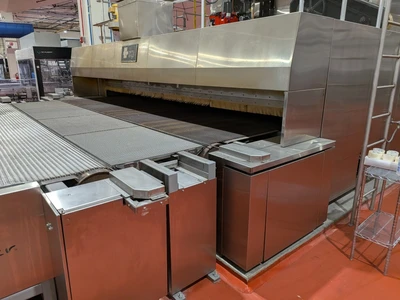

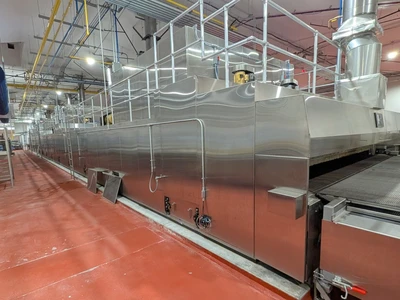

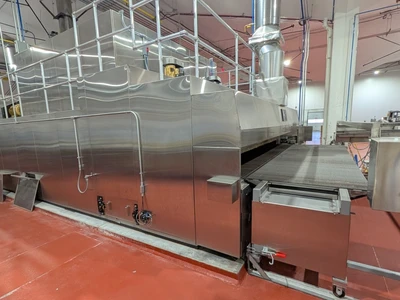

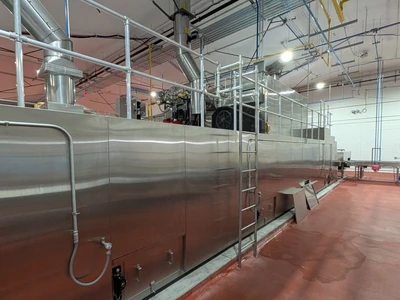

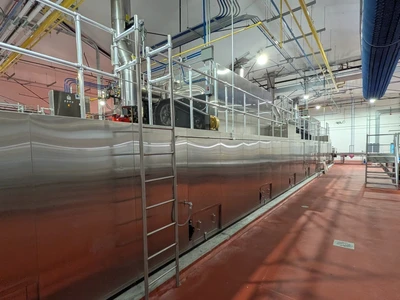

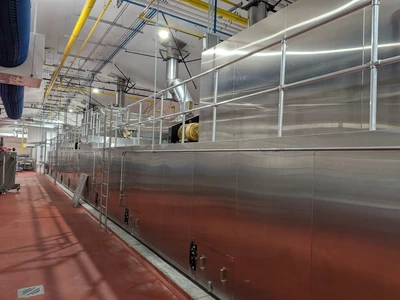

2024 Henry Group 5-zone indirect fired tunnel oven with loader and unloader

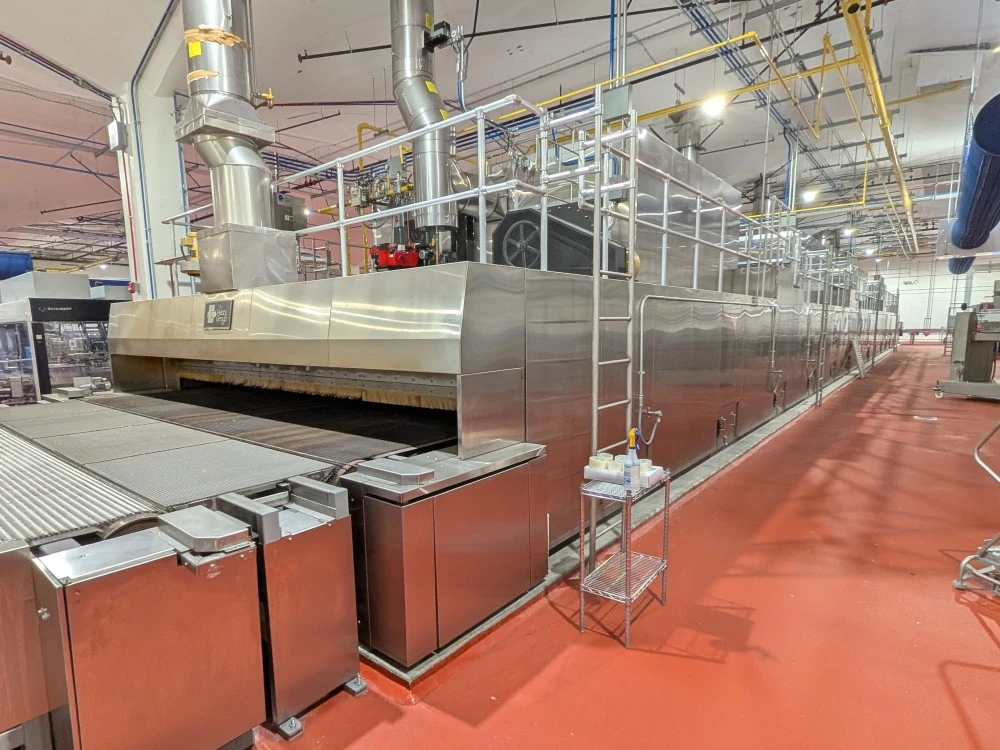

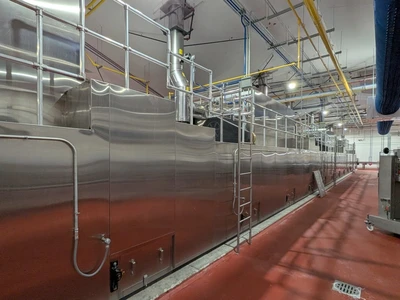

2024 Henry Group 5-Zone Indirect Fired Tunnel Oven with 4-Row Loader and Unloader – 15 ft 6 in. Wide x 180 ft Long Baking Chamber
Complete Henry Group indirect fired tunnel oven system featuring a 5-zone natural gas oven, integrated 4-row tray loader and unloader, and wide 15 ft 6 in. weave wire mesh bake band. Designed for high-capacity continuous baking operations using foil or cardboard tray loading systems.
Oven Specifications
Manufacturer: Henry Group
Year: 2024
Type: Indirect fired tunnel oven

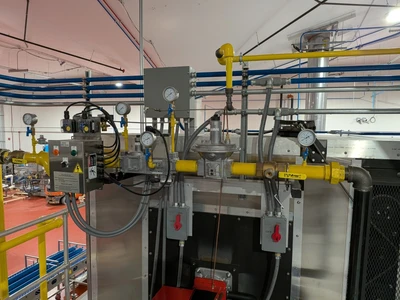

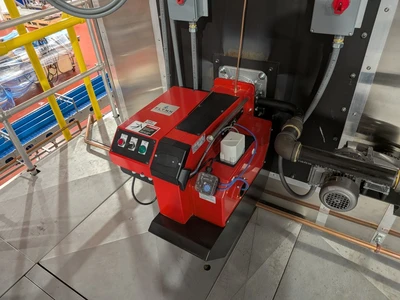

Fuel: Natural gas
Zones: 5 towers (30 / 30 / 40 / 40 / 40)

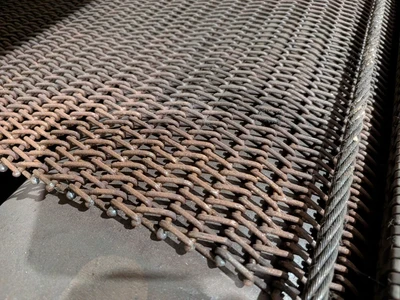

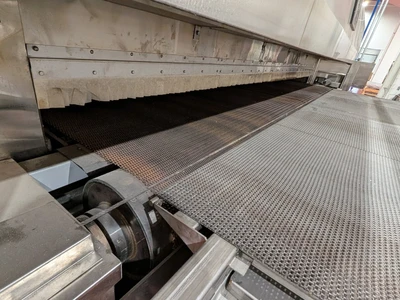

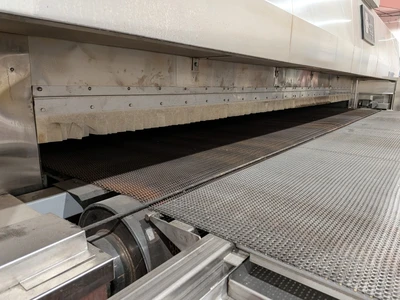

Bake band: Weave wire mesh
Belt width: 15 ft 6 in.
Baking chamber length: 180 ft
Oven style: IDGF 15 ft 6 in. x 180 ft hearth with turbulence

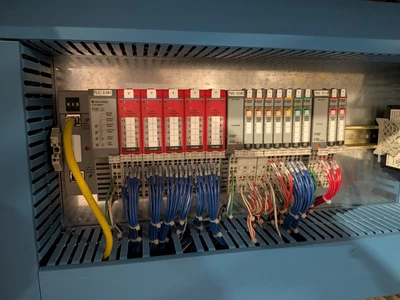

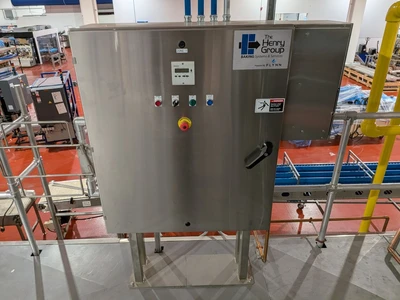

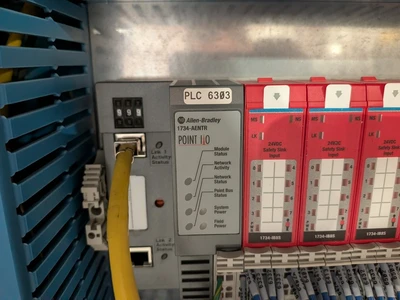

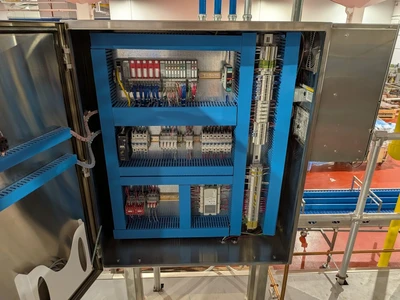

Controls: Allen Bradley control panel

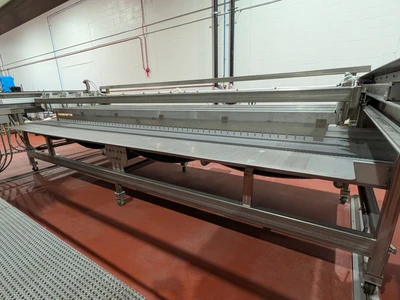

Oven Loader – 48 in. 4-Row Loader
Designed for foil and cardboard tray loading applications
Stainless steel tubular frame construction
Closed grid Habisat belting
Close-radius transfers at infeed and discharge
Stainless steel guarding
Infeed photo-eyes for accurate grouping
Pusher arm length: 15 ft
Steel frame with stainless steel panels
Stationary casters with offset for positioning away from oven
Light curtain safety system

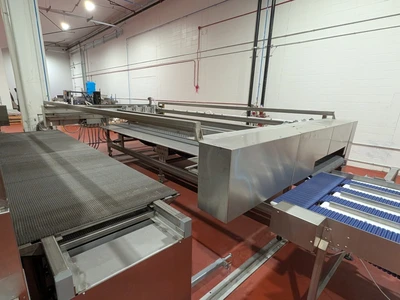

Oven Unloader – 4-Row
Lightweight vertical tray guides
Cross conveyor with high-temperature plastic discharge belt
Steel frame construction (Steel-It coated)
Stainless steel guarding
Pusher arm length: 15 ft
Light curtain safety system
Transfer Conveyor (Oven to Cooling Conveyor)
Length: 34 in.
Belt: Weave wire mesh
Width: 15 ft 6 in.
Frame: Steel
