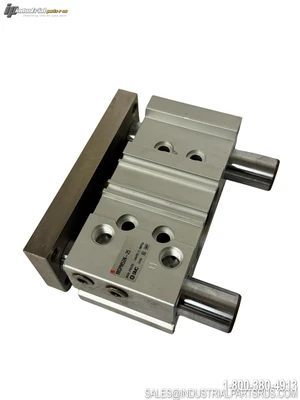

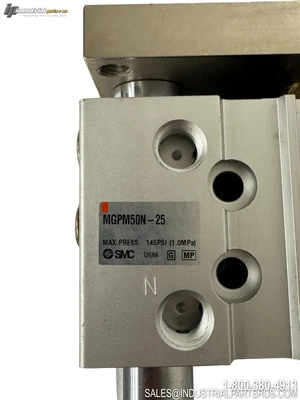

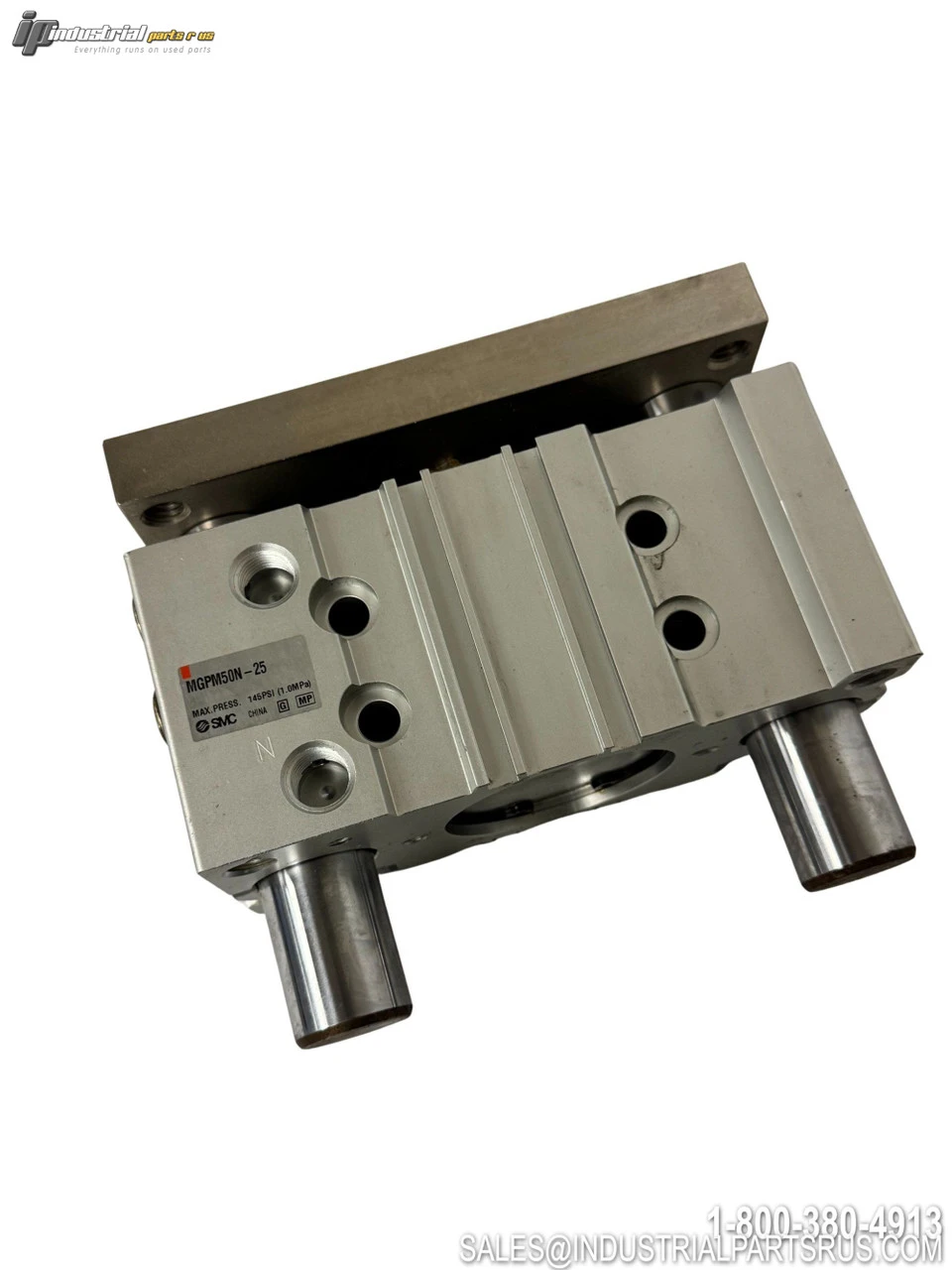

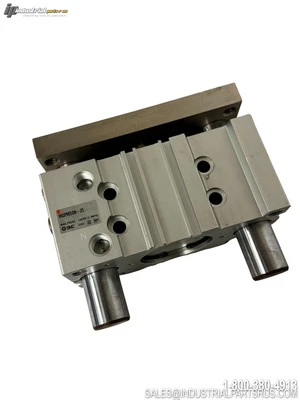

USED SMC MGPM50N-25

The SMC MGPM50N-25 is a compact guided pneumatic cylinder from the MGP series, designed for high side load applications including material handling, lifting, and stopping operations. This double-acting cylinder features an ultra-compact design by incorporating the cylinder body as part of the guide body, providing enhanced load bearing capacity and lateral stability through its slide bearing design.
Specification
Value
Brand
SMC
Model/Part Number
MGPM50N-25
Series
MGP Series
Cylinder Type
Compact Guide Cylinder
Action
Double Acting
Bore Diameter
50mm
Stroke Length
25mm
Bearing Type
Slide Bearing
Port Thread Type
NPT
Port Size
1/4" NPT
Maximum Operating Pressure
1.0 MPa (145 psi)
Proof Pressure
1.5 MPa (218 psi)
Minimum Operating Pressure
0.15 MPa (22 psi)
Operating Temperature
-10°C to +60°C (14°F to 140°F)
Piston Speed
50-500 mm/s
Fluid
Compressed Air
Seals Material
NBR (Nitrile Rubber)
Cushion
Rubber Bumpers (Both Ends)
Lubrication
Non-lube (Factory Lubricated)
Application
Material Handling, Lifting, Stopping
We warranty all items for 30 days from date of purchase.

SKU: AI1286
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 6.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: MGPM50N-25
Shelf: B-11
Bore Diameter: 50 mm
Model: MGPM50N-25
MPN: MGPM50N-25
Type: Pneumatic Cylinder
