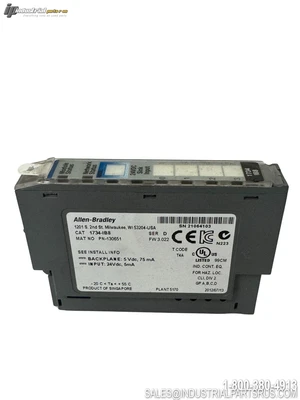

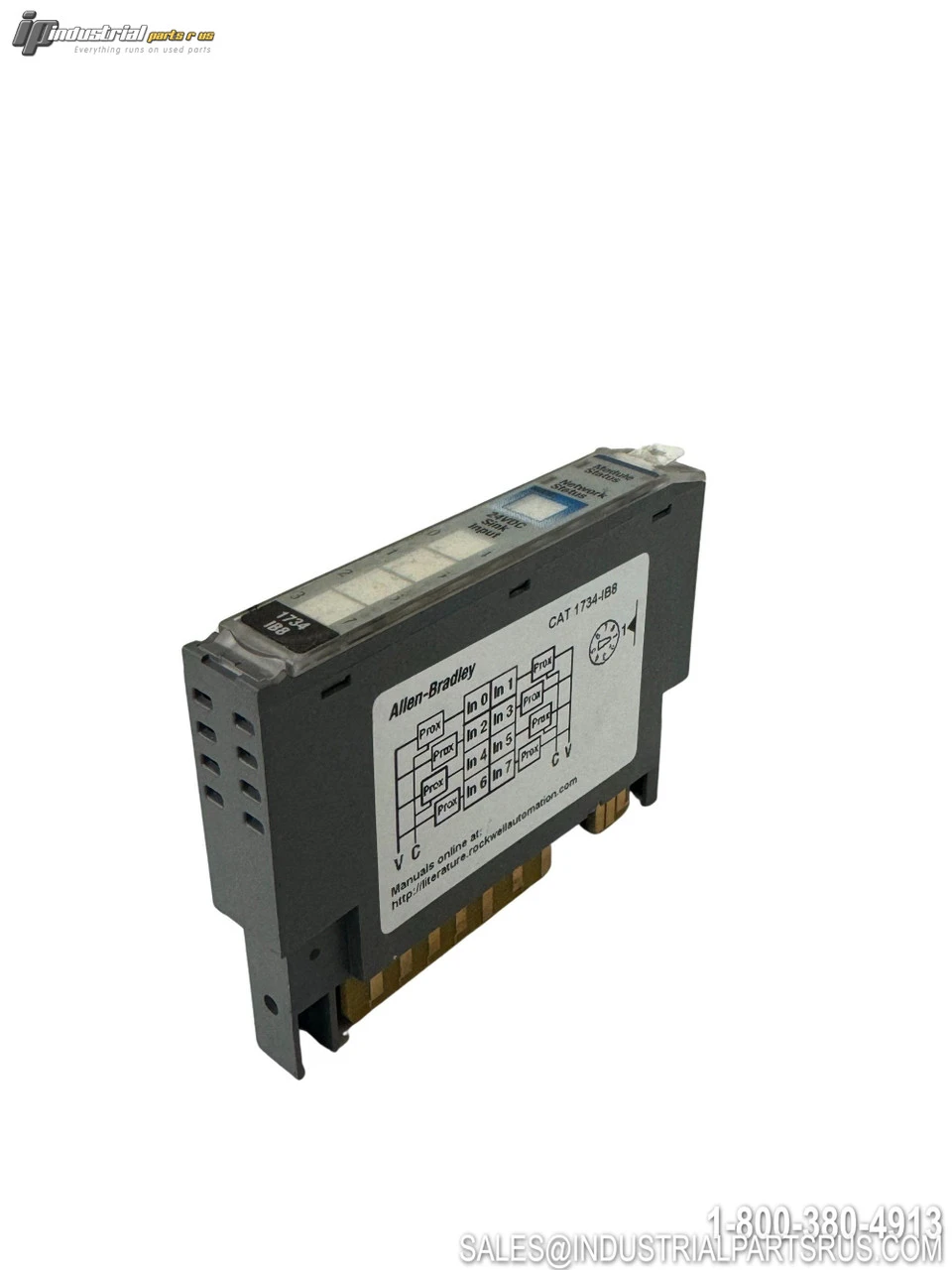

USED ALLEN-BRADLEY 1734-IB8 SER.D

The Allen-Bradley 1734-IB8 Series D is a POINT I/O digital input module designed for industrial automation applications. This module provides 8 channels of digital DC input with sinking configuration, operating at 24 volts DC nominal with a wide input voltage range from 10 to 28.8 volts DC.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1734-IB8 Ser.D
Platform
POINT I/O
Series
D
Input Points
8
Input Type
Digital DC Sinking
Input Voltage (Nominal)
24VDC
Input Voltage Range
10-28.8VDC
On-State Current (Min)
2mA
On-State Current (Max)
5mA
On-State Current (Nominal)
4mA @ 24VDC
Off-State Voltage (Max)
5VDC
Off-State Current (Min)
1.5mA
Input Impedance (Nominal)
3.6 kΩ
Input Impedance (Max)
4.7 kΩ
POINTBus Current (Max)
75mA @ 5VDC
Power Dissipation (Max)
1.6W @ 28.8VDC
Thermal Dissipation
5.5 BTU/hr @ 28.8VDC
Isolation Voltage
50VDC (continuous)
LED Indicators
1 Network Status, 1 Module Status, 8 Input Status
Enclosure Type
Open Style
Mounting Type
DIN Rail
Compatible Terminal Base
1734-TB, 1734-TBS
Bulletin
1734
UPC
612598308576
We warranty all items for 30 days from date of purchase.

SKU: AI1288
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 2mA
Manufacturer: Allen-Bradley
Enclosure Type: Open Style
Part Number: 1734-IB8 SER.D
Controller Platform: POINT I/O
Shelf: F-3 Tub11
Model: 1734-IB8 SER.D
MPN: 1734-IB8 SER.D
Type: I/O Module
