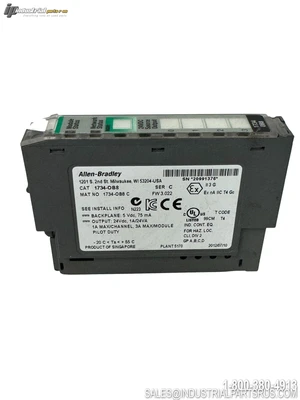

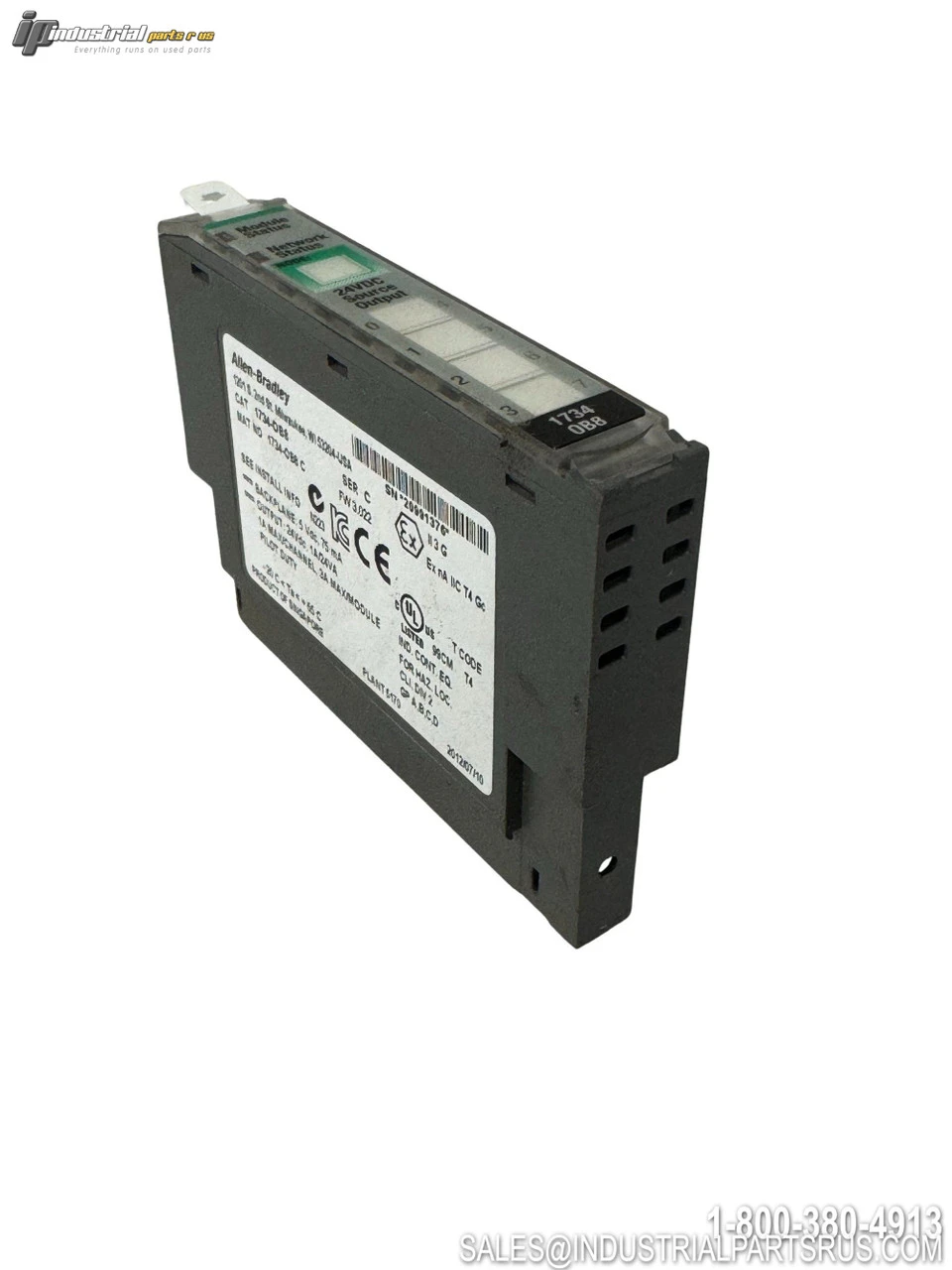

USED ALLEN-BRADLEY 1734-OB8 SER.C

The Allen-Bradley 1734-OB8 Series C is a POINT I/O digital output module that provides eight discrete, non-isolated sourcing output channels for industrial automation applications. This module delivers 24VDC nominal actuating voltage and is designed to energize electrical loads such as relays, pilot lamps, and solenoid-actuated devices operating in the 10-28.8 VDC range.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1734-OB8 Ser.C
Product Type
I/O Module
Platform
POINT I/O
Series
C
Number of Outputs
8
Output Type
Digital DC Sourcing
Output Voltage
24VDC
Voltage Range
10-28.8 VDC
Current Rating
1.0 A per channel, 3.0 A max per module
Isolation
Non-isolated
Dimensions
56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in)
Mounting
DIN Rail
POINTBus Current
75 mA
Power Dissipation
2 Watts
Operating Temperature
-25 to 55°C (-13 to 131°F)
Wiring Base Required
1734-TB or 1734-TBS
Communication Compatibility
DeviceNet, ProfiBus, ControlNet, Ethernet
We warranty all items for 30 days from date of purchase.

SKU: AI1289
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Digital DC Sourcing
Full Load Amps: 75 mA
Manufacturer: Allen-Bradley
Part Number: 1734-OB8 SER.C
Controller Platform: POINT I/O
Shelf: F-3 Tub 11
Model: 1734-OB8 SER.C
MPN: 1734-OB8 SER.C
Type: I/O Module
