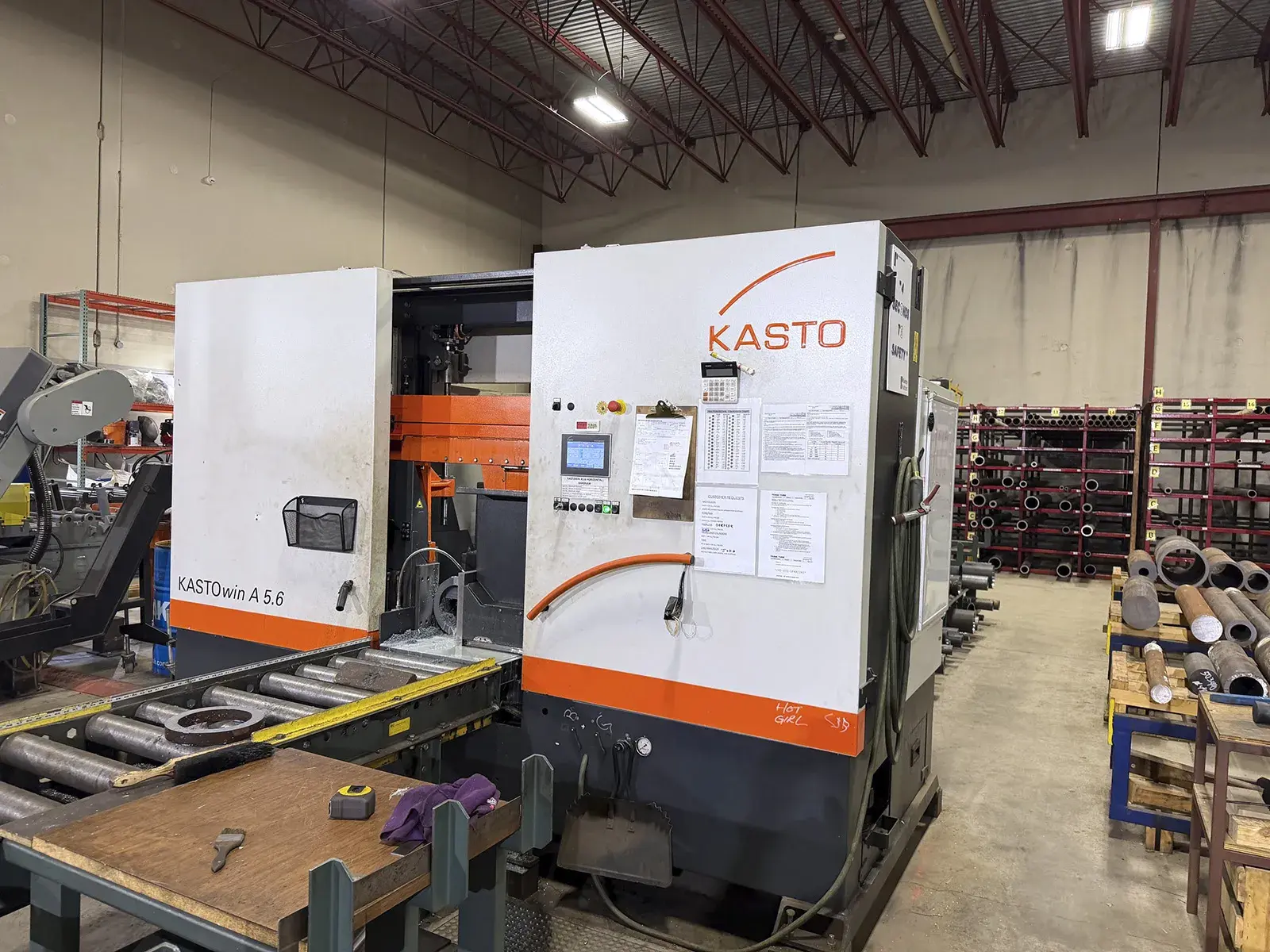

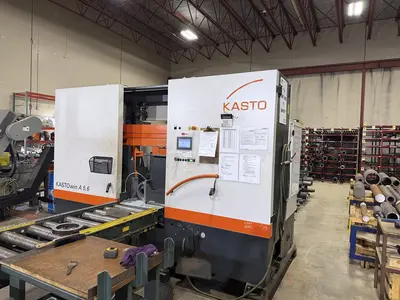

USED 2014 KASTO KASTOWIN A 5.6

Cutting range 90° round: 560 mm (22.05 in)
Cutting range 90° flat (W × H): 560 × 560 mm (22.05 × 22.05 in)
Clamping range: 0–560 mm
Smallest cut-off length: 10 mm (0.39 in)
Smallest dimension to be cut: 25 × 25 mm (0.98 × 0.98 in)
Shortest remnant length (automatic operation): 35 mm (1.38 in)
Shortest remnant length (individual cut): 10 mm (0.39 in)
Length: 1,650 mm (64.96 in)
Width: 3,300 mm (129.92 in)
Height: 2,280 mm (89.76 in)
Material support height : 700 mm (27.56 in)
Weight: 3,800 kg (8,377.57 lbs)
Saw motor (frequency controlled): 5.5 kW (7.38 hp)
Total Power: 8 kW (10.73 hp)
Cutting speed (infinitely adjustable): 12–150 m/min (39–492 ft/min)
Saw Blade Dimensions: 7,067 × 54 × 1.6 mm (278.23 × 2.13 × 0.06 in)
Material feed length (individual cut): 500 mm (19.69 in)
Multiple Feed: 9,999 mm (393.66 in)
Machine roller conveyor length: 1,100 mm (43.31 in)
Transport rollers: 8 ball-bearing massive rollers, 70 mm diameter, spaced 135 mm apart
Cutting Feed: Electrically adjustable via ball bearing spindle
Material feed: Ball bearing spindle
Material clamping: Hydraulic
Saw blade cleaning: Self-adjusting chip brush, driven by electric motor
