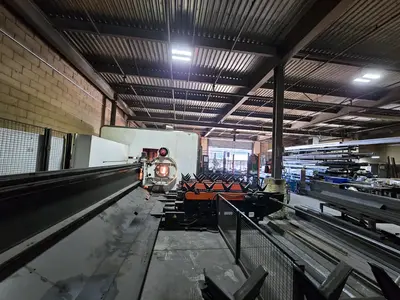

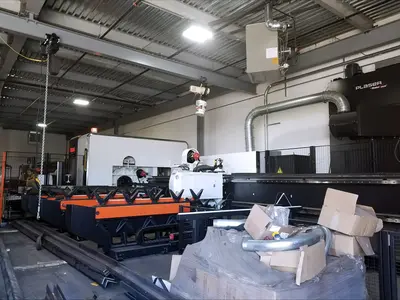

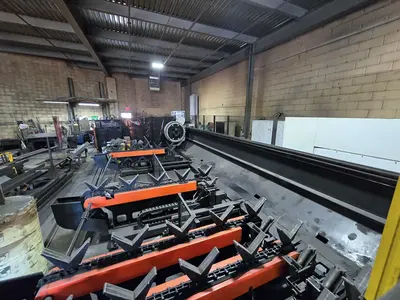

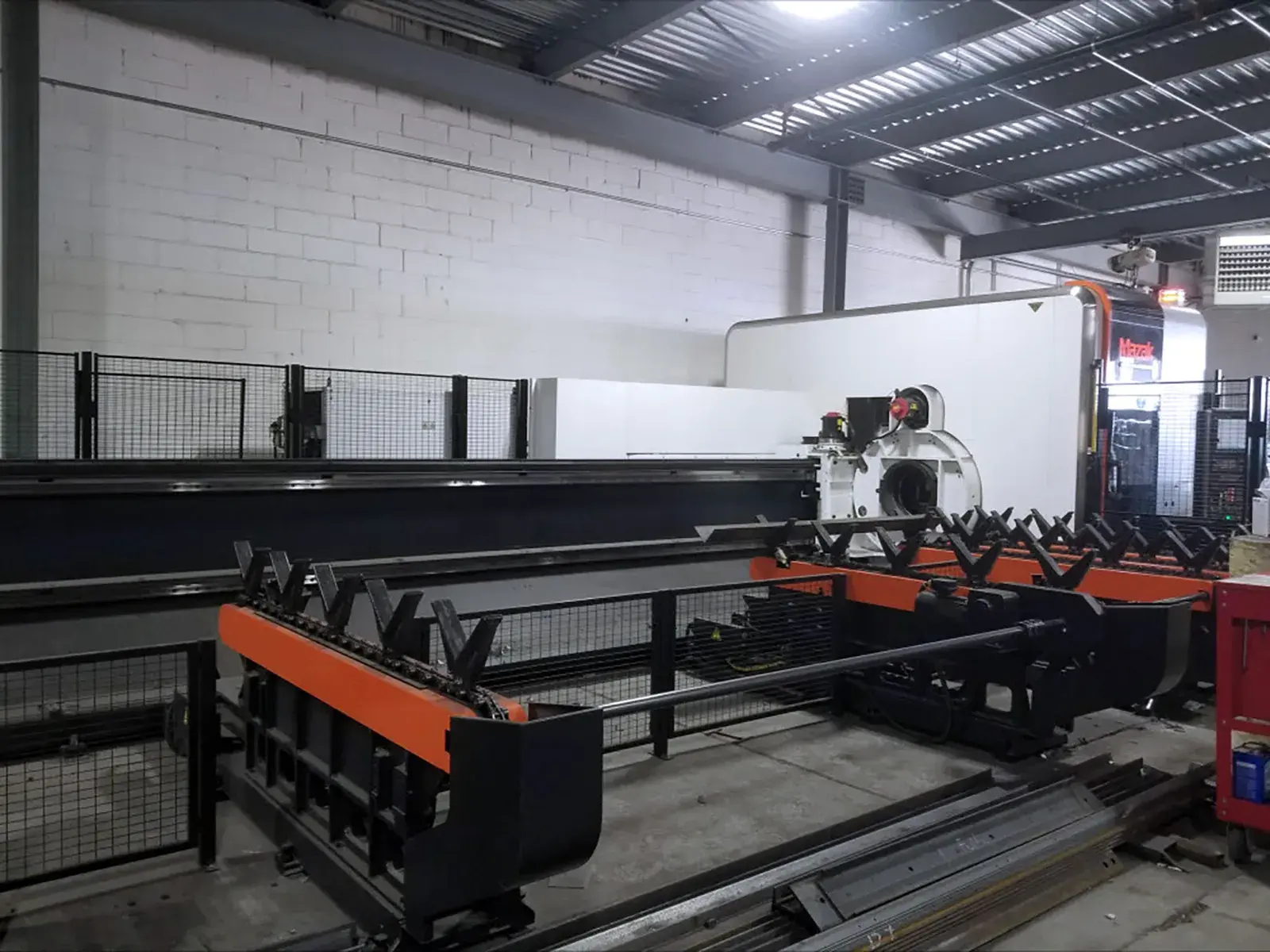

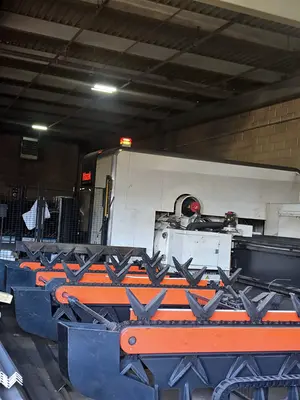

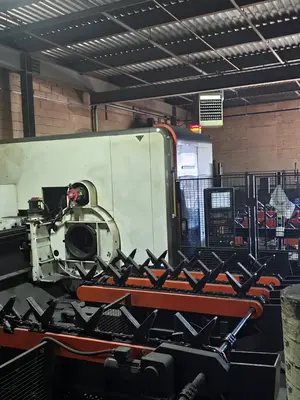

USED 2016 MAZAK 3D FABRI-GEAR 400 II
Overview
Description
4000 Watt| CO2 Tube Laser
Boost productivity with this Mazak 3D Fabri-Gear 400 II CNC tube laser (2016), engineered for precision cutting of long, heavy pipes and structural materials. Achieve complex 3D cuts, beveling, drilling, and tapping in one setup. Its automated loading system supports continuous, high-volume production with minimal labor, making it ideal for fabrication, construction, and industrial manufacturing applications.
Specifications
Workpiece Shape: Round, square, L/H/I beam and channel
Workpiece Material: Mild steel / Stainless steel
Round Pipe: .79" - 16"
Square Pipe: .79" x .79" - 10" x 10"
H/I Beam: .79" x .79" - 11.81" x 11.81"
Channel: .79" x .79" - 11.81" x 5.51"
Max Material Length for Loading: 314.96"
Min Material Length for Loading: 135.83"
Max Workpiece Weight: 1764 lbs
X Chuck Left / right: 346.06"
U Chuck Left / right: 366.14"
V Chuck Left / right: 99.02"
Y Head back / forth: 50"
Z Head up / down: 14.57"
A head rotation: ±99999.999 deg
B head swing: ±135 deg
X, U, V: 1181 IPM
Max. Traverse Rate Y: 945 IPM
Max. Traverse Rate Z: 945 IPM
Max. Traverse Rate A, B: 9600 deg/min
C (chuck rotation): 6000 deg/min
Machine Weight: 77,160 lbs
Equipped With

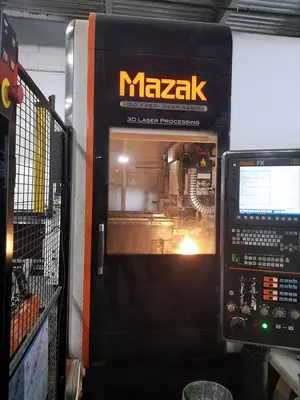

Mazak FX 15" color LCD Control
8 meter loading equipment
8 meter unloading equipment
Touch Probe
4000 W Laser
Additional Loading System
Tapping Unit
Automatic Material Measurement Function
Small Diameter Work Support Jaws
Weld Seam Detector
Dust Collector
Premium Fire Suppression
Mazak FX Tube
