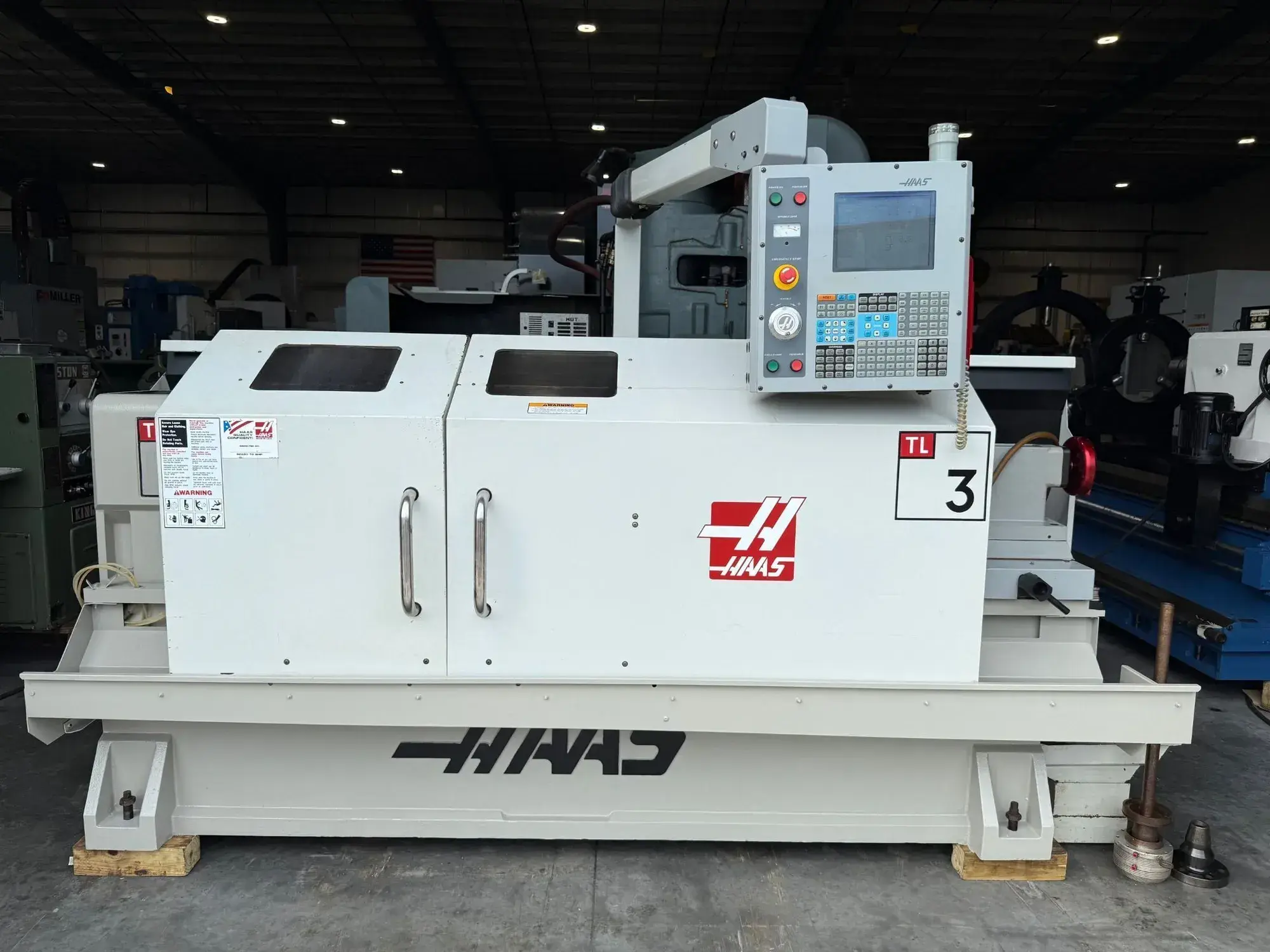

2006 HAAS TL-3 CNC Lathe, 20" swing, 60" machining length, 12" chuck, 18 hp, 1,800 RPM max. Equipped with HAAS CNC control, 3 jaw chuck, collet chuck, and more. Tailstock included.
| Swing | 20" | 508 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Power | 18 hp | 13.4 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 20" | 508 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (HAAS) | CNC (HAAS) |
Spindle bore- 3.5”
HAAS CNC control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code, Brushless Barfeeder Interface, Intuitive Programming Systems
Tailstock
12” BTC 3 Jaw Chuck “Adjust-Tru” Type
5-C Collet chuck & Pneumatic draw tube
Coolant tank & pump
Chuck wrench
