Hyundai KH80G – 2011

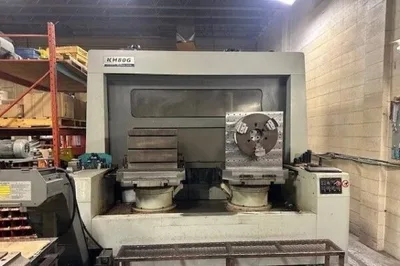

Hyundai KH80G CNC Horizontal Machining Center
Spec Sheet

Pallet Size: 31.5” x 31.5”

Pallet Indexing: 1 degree

X – Axis Travel: 49.2”

Y – Axis Travel: 39.4”

Z – Axis Travel: 33.5”

Tool Magazine Capacity: 80 ATC

Spindle Speed: 4,500 RPM

Spindle Taper: Cat 50

Spindle HP: 35

Spindle Torque: 1,106.3 ft/lbs

X – Rapid: 709 IPM

Y – Rapid: 709 IPM

Z – Rapid: 709 IPM

Dimensions: 218” x 130” x 128”

Weight: 47,500 lbs
Fanuc 18iMB Controller

Chip Conveyor

1,000 PSI Coolant Through Spindle

Rigid Tapping

3 Speed Geared Head

Automatic Pallet Charger with 2 Pallets

Work Light

Flood Coolant

All AVailable Tooling
