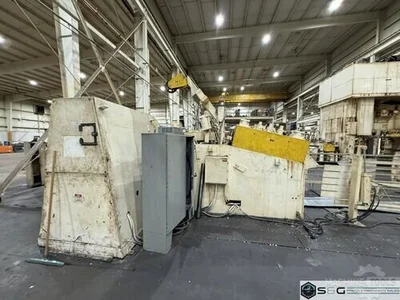

USED COE PRESS EQUIPMENT CPR-PO-30072 / CPPS-PO-50072 / CPRF-872

30,000 lbs. x 72" Coe Press Equipment Coil Feed Line, 3 Complete Lines Available for Sale!

Coil Weight: 30000 pounds
Coil Width: 72 inches
Coil Thickness: .187 inches

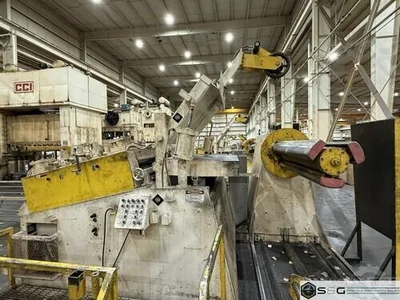

72" Coe Press Equipment: Coil Processing
Conventional Coil Feed Line
Model CPPR-PO-30072 / CPPS-PO-50072 / CPRF-872

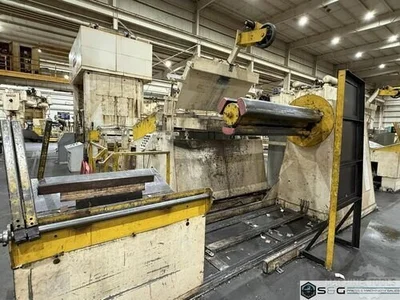

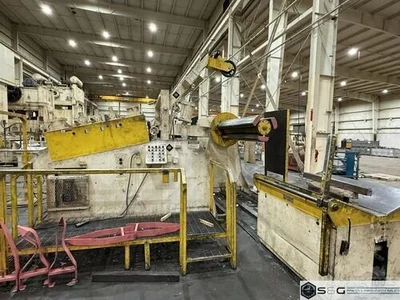

30,000 lbs. Maximum Coil Weight at Full Width72" Maximum Coil Width.187" Stock Thickness Capacity at 72" Wide.250" Stock Thickness Capacity at 36" Wide23"-27" I.D. Mandrel Expansion Range72" Maximum Coil O.D.Right to Left Feed DirectionEquipment and Features: Coe Press Equipment Coil Reel Model No. CPER-PO-30072
Three leaf mandrel
Hydraulic mandrel expansionHeavy Duty Wedge Type Expansion
Air brake mounted on main spindle
Jog drive for threading Set of Coil Keepers

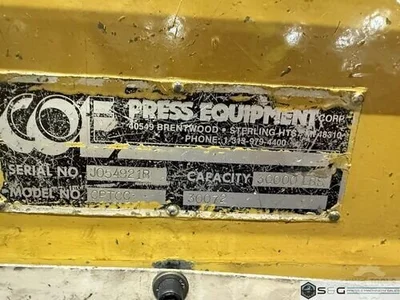

Coe Travelling Coil Load Car Model CPTCC-30072
Hydraulic Lift for Coils

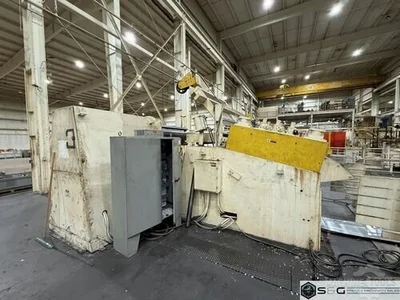

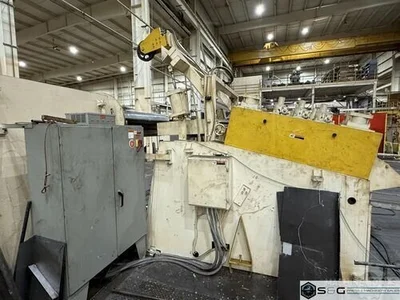

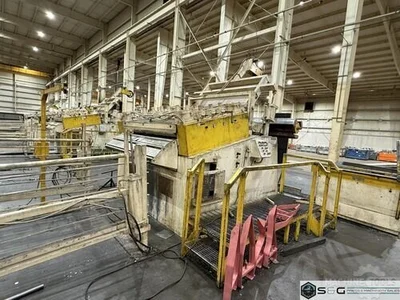

Coe Powered Coil Straightener Model No. CPPS-PO-500-72
Seven straightening rolls
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Stock Peeler table with integrated end De-bender
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers

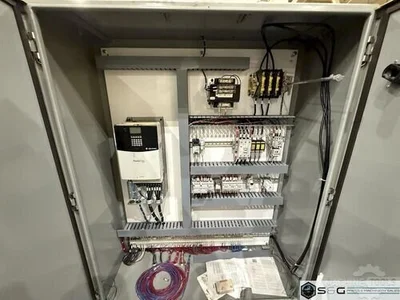

Updated Allen Bradley AC Variable Freq Drive and control system
Auto / run loop control

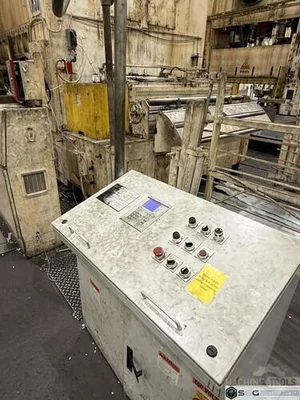

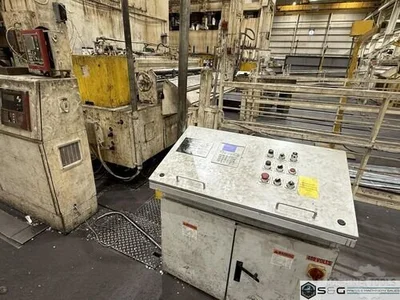

Operator's stations

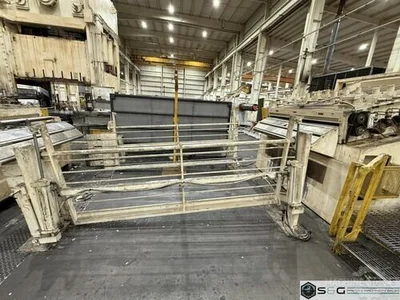

Dual Thread Table with Loop Control Model#: CPTT-1572

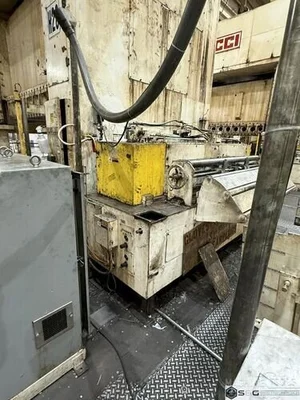

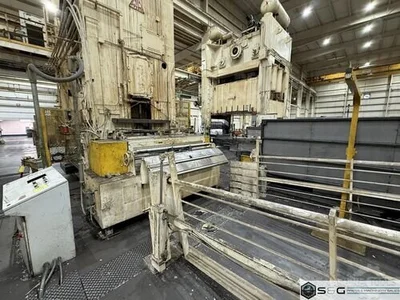

Coe Cabinet Mounted Feeder Model#: CPRF-8-72
8” diameter Upper and Lower Feed Rolls
Pilot Release of upper rolls
Cabinet Base Mounted
Entry Cascade Loop Support Rollers
AC Servo Drive and Controls
Adjustable Base Feeder
Motors and Controls

Can be seen under power in Midwest Plant with notice!  Call for more detail and schedule your inspection today.
Optimize your metal forming facility with this high-capacity 72" Coe Press Equipment Conventional Coil Feed Line. Engineered for heavy-duty performance, this line handles a 30,000 lbs. coil capacity and material thicknesses up to .187" at full 72" width. Featuring a CPPS-PO-500-72 straightener with seven rolls and a CPRF-8-72 cabinet-mounted servo feeder with 8” rolls, this system ensures precision flatness and feed accuracy for high-production environments.

When you buy from S&G Press and Machinery, you aren’t just buying equipment; you are gaining 26 years of technical expertise. We specialize in stocking and reconditioning premium brands like Coe, ensuring every line is production-ready. This specific Coe line features updated Allen Bradley AC Variable Frequency Drives and can be inspected under power, providing the ultimate transparency before your purchase. Trust S&G Press for reliable industrial machinery solutions that minimize downtime and maximize ROI.
