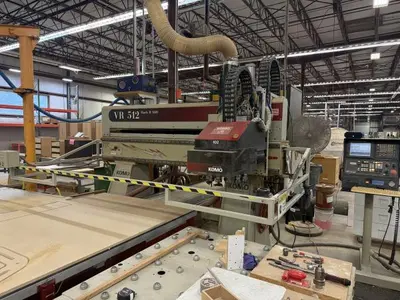

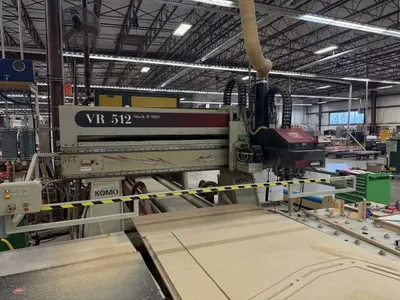

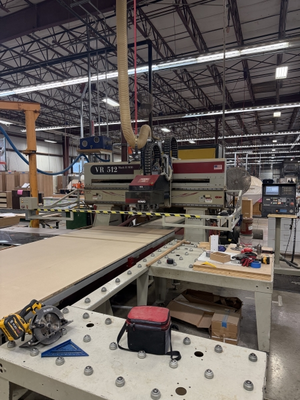

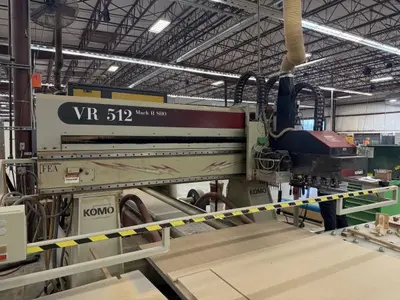

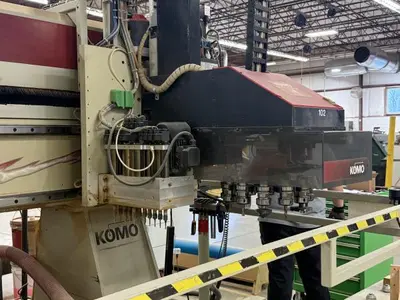

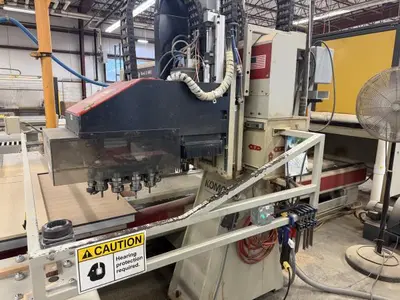

USED KOMO VR512

Standard Features
11” (279mm) Programmable Z Axis

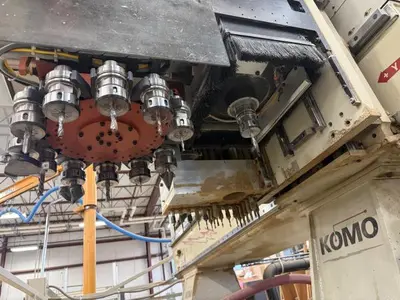

12 Pocket Automatic Toolchanger with Aggregate Capability
Automatic Tool Length Measurement
Universal Grid Fixture Table

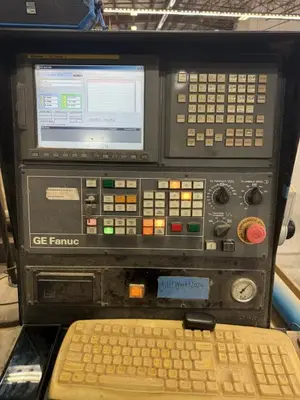

Komo-GE Fanuc Panel i Control with HVI Servo System and Integrated PC
Closed-loop Counterbalance System (minimizes air consumption)
Construction
Heavy-duty contour linear rail system with matched bearing trucks
Non-rotating ballscrew system for maximum acceleration and deceleration at high cutting feedrates

Technical Data
Following information taken from product literature

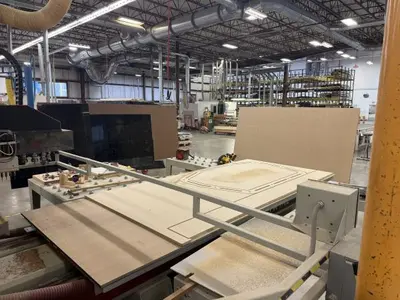

Tables
Number of Tables: 1
Table Dimensions: 144” x 60” (3658mm x 1524mm)
Material: cast precision machined aluminum vacuum plenum with four 1” part locating pins

Axis Travels
X Axis: 159” (4038mm)
Y Axis: 84” (2133mm)
Z Axis: 11” (279mm)

Feedrate/Traverse
X & Y Axes: up to 3150 IPM (80,000 mm/min.) with standard HSHP
Z Axis: 600 IPM (15,240 mm/min)

Positioning
± 0.0004” (0.01mm) unidirectional repeatability
± 0.0008” (0.02mm) unidirectional accuracy

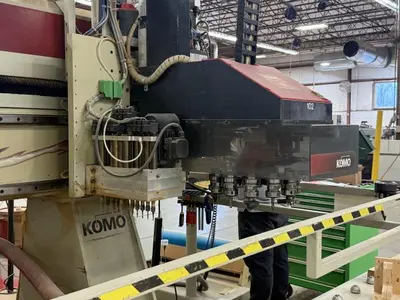

Spindle
Quantity: 1
Type: 20 HP peak, 16 HP continuous duty, 4-pole
RPM: up to 24,000, fully programmable
Taper: HSK 63F

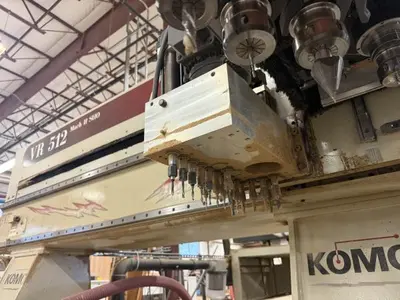

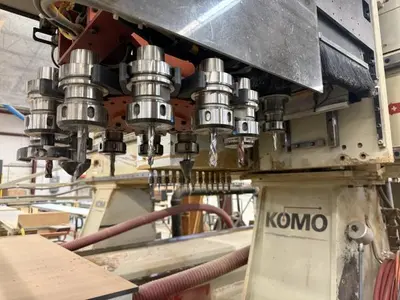

Aggregate-Capable Toolchanger
Maximum Number of Tools: 12
Maximum Diameter: 6.5” (165mm)
Maximum Weight: 12 lbs / 96 lbs total (5.4 kg / 43.5 kg)

Part Programming Solution
One seat of router-CIM CAM Companion software

Space (with guarding)
Height: 110” (2794mm)
Width: 142.75” (3626mm)
Depth: 314” (7976mm)

Vacuum System
Kaeser Compressor model CSV 150
PSIa: 14.5 / 0.145 vac
Power: 40 HP, 230/460V, 3 Ph
