The big daddy of HMC's
A rare big capacity machine.
Mazak Mazatech 4 AXIS - CNC Horizontal centre
Full B axis
Powered spindle in -out.
80 tool changer.
Currently still installed.
| X | 2,000 mm | 78.74" |
| Y | 1,524 mm | 60" |
| Z | 1,550" | 39,370 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 80 | 80 |
| Taper | ISO or Cat 50 | ISO or Cat 50 |
| Pallet-W | 1,270 mm | 50" |
| Pallet-L | 1,270 mm | 50" |
| Control | CNC (Mazatrol PC-Fusion 640M) | CNC (Mazatrol PC-Fusion 640M) |
| Weight | 31 tons | 31 tons |

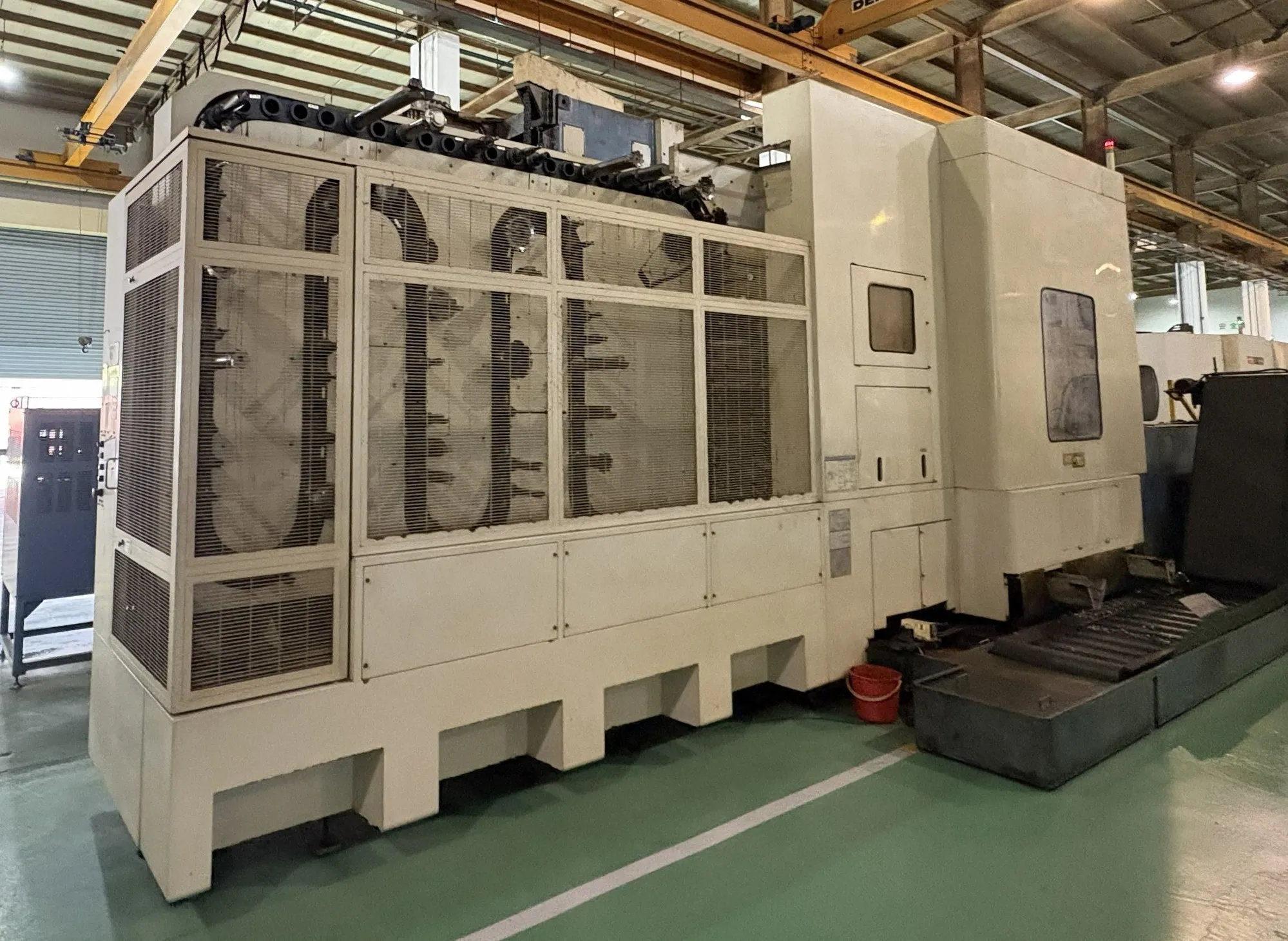

MAZAK H-1250 HORIZONTAL MACHINING CENTRE SPECIFICATIONS
Machine Type: Horizontal Machining Centre (HMC)
Pallet Size: 1250 mm x 1250 mm (49.4" x 49.4")
Number of Pallets: 2-Pallet Changer
Maximum Table Load: 4,000 kg
X-Axis Travel (Longitudinal): 2,000 mm (78.74")
Y-Axis Travel (Cross): 1,524 mm (60.00")
Z-Axis Travel (Vertical): 1550 mm
B-Axis Indexing: 0.001 Degree (Full 4th Axis)
Spindle Taper: ISO 50 / BT 50
Spindle Speed: 5,000 - 6,000 RPM
Tool Storage Capacity: 80 Positions (ATC)
