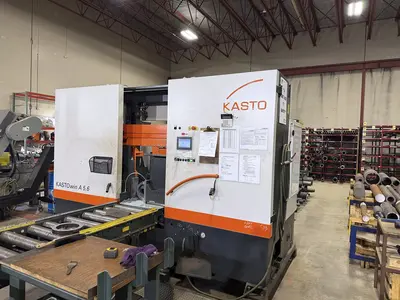

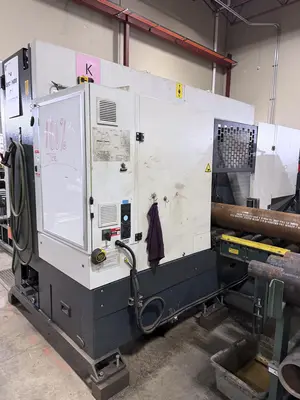

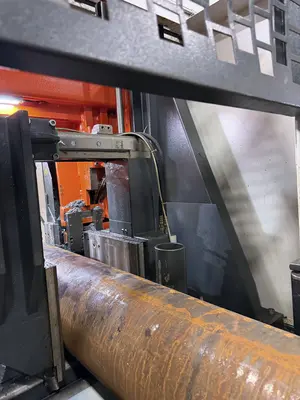

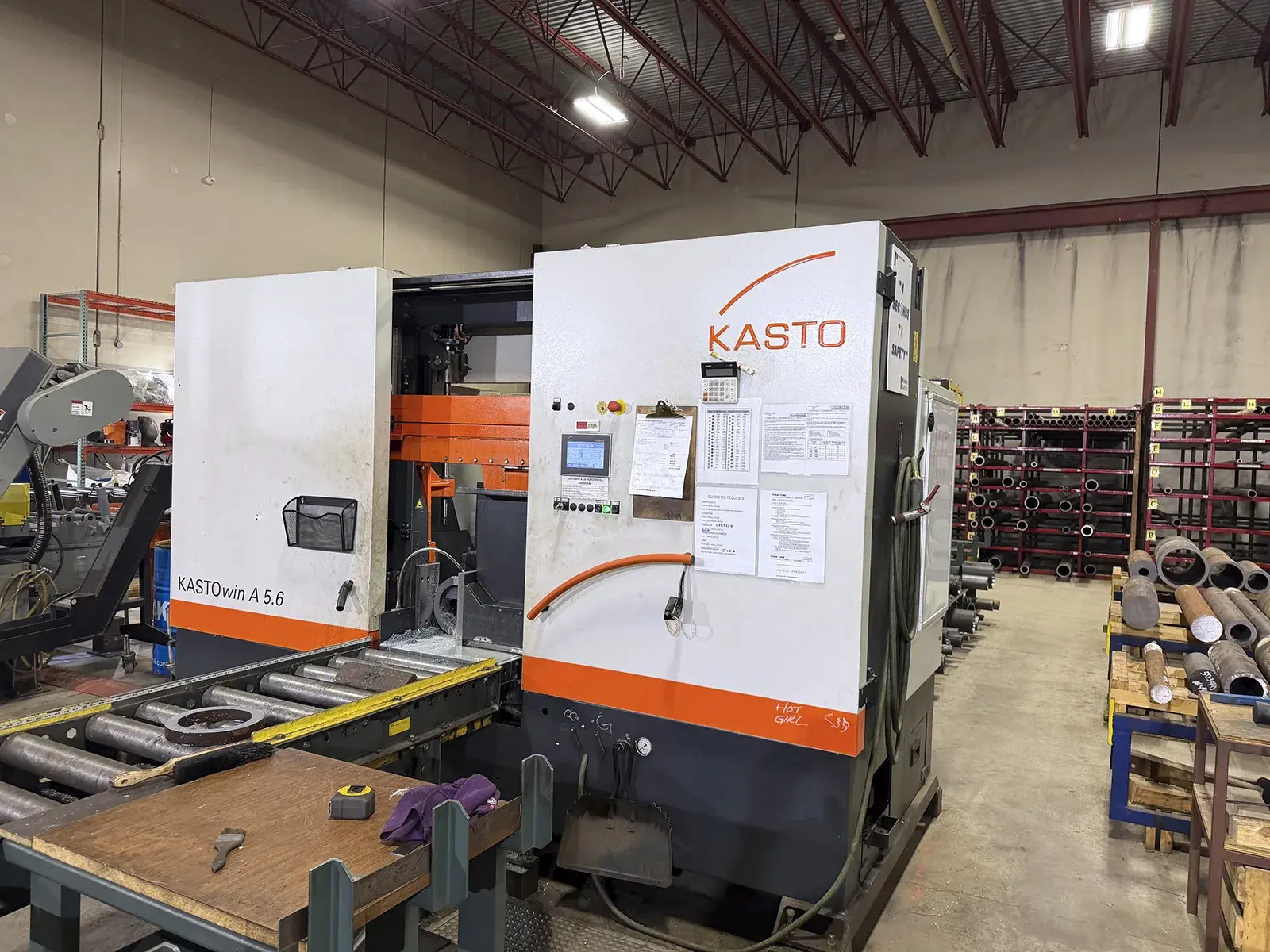

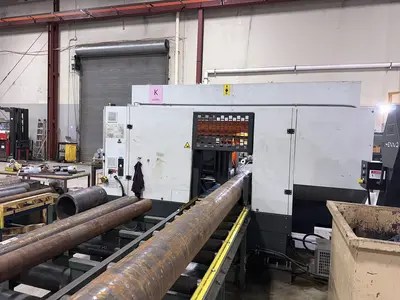

USED 2014 Kasto KastoWIN A 5.6

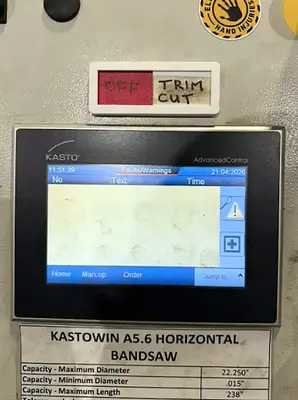

Enhance your cutting operations with this Kasto WIN A 5.6 horizontal band saw (2014) featuring Advanced Control for fully automatic, high-precision performance. Built for industrial-scale production, it delivers fast, accurate cuts on steel, stainless steel, and specialty alloys using carbide or bimetal blades. Ideal for steel service centers, forging, and manufacturing applications handling tubes, profiles, and solid materials.

Cutting Range:
Cutting range 90° round: 560 mm (22.05 in)
Cutting range 90° flat (W × H): 560 × 560 mm (22.05 × 22.05 in)
Clamping range: 0–560 mm
Smallest cut-off length: 10 mm (0.39 in)
Smallest dimension to be cut: 25 × 25 mm (0.98 × 0.98 in)
Shortest remnant length (automatic operation): 35 mm (1.38 in)
Shortest remnant length (individual cut): 10 mm (0.39 in)
Dimensions & Weight:
Length: 1,650 mm (64.96 in)
Width: 3,300 mm (129.92 in)
Height: 2,280 mm (89.76 in)
Material support height : 700 mm (27.56 in)
Weight: 3,800 kg (8,377.57 lbs)
Saw motor (frequency controlled): 5.5 kW (7.38 hp)
Total Power: 8 kW (10.73 hp)
Cutting speed (infinitely adjustable): 12–150 m/min (39–492 ft/min)
Saw Blade Dimensions: 7,067 × 54 × 1.6 mm (278.23 × 2.13 × 0.06 in)
Material feed length (individual cut): 500 mm (19.69 in)
Multiple Feed: 9,999 mm (393.66 in)
Machine roller conveyor length: 1,100 mm (43.31 in)
Transport rollers: 8 ball-bearing massive rollers, 70 mm diameter, spaced 135 mm apart
Cutting Feed: Electrically adjustable via ball bearing spindle
Material feed: Ball bearing spindle

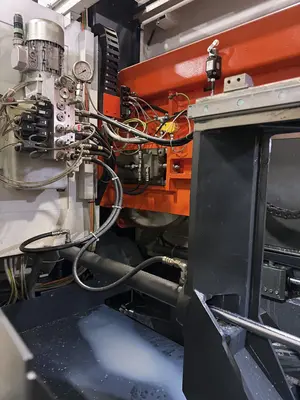

Material clamping: Hydraulic
Saw blade cleaning: Self-adjusting chip brush, driven by electric motor

Operating hours: 19385
Coolant System
