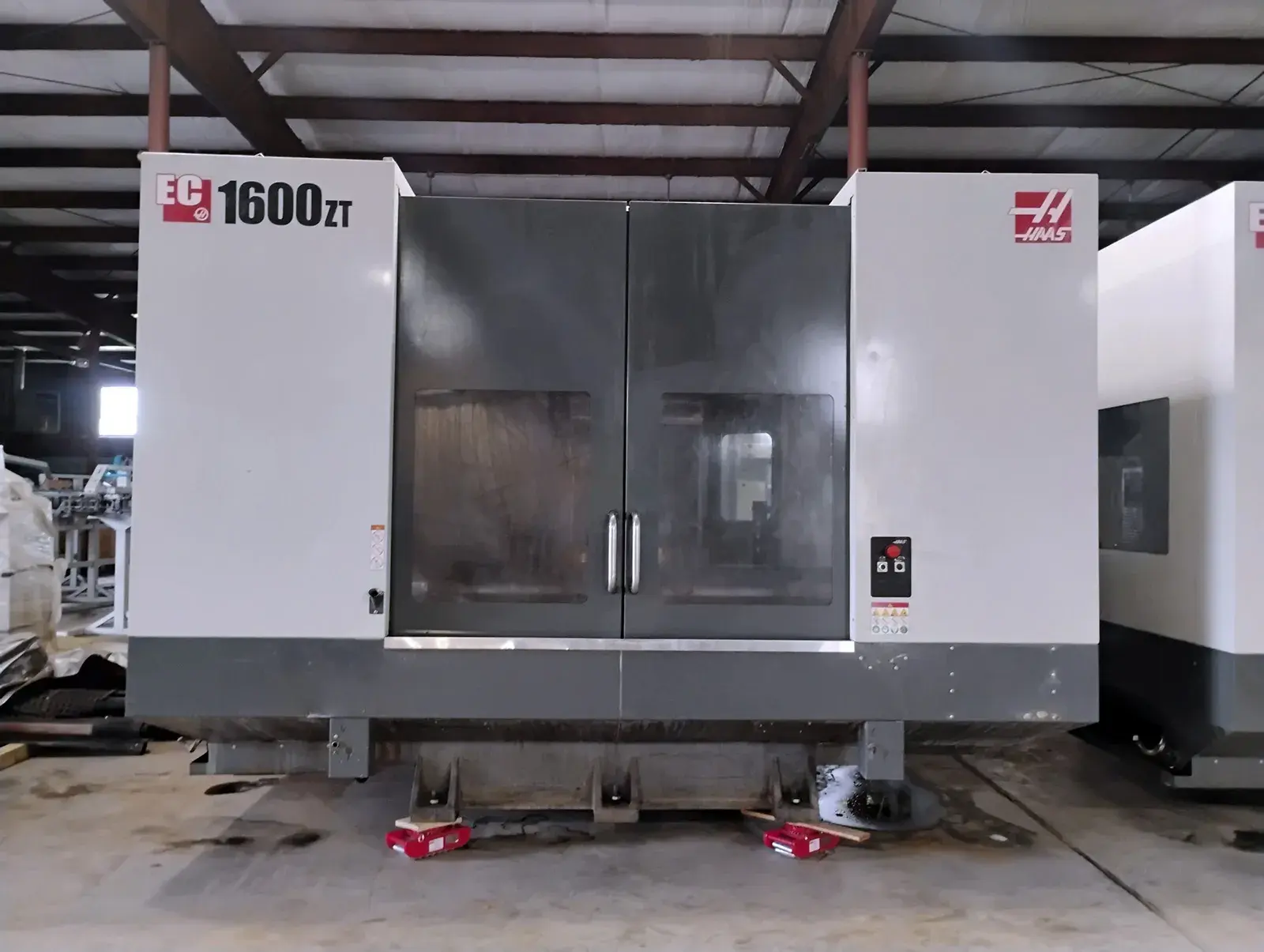

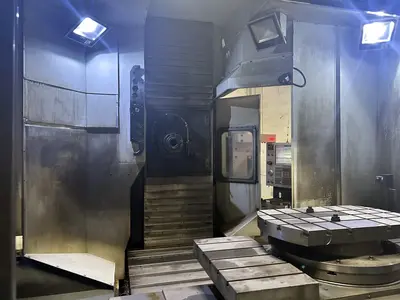

USED 2019 Haas EC-1600ZT
Overview
Description
The Haas EC-1600ZT Horizontal Machining Center (2019) with Haas Control is designed for high-precision, heavy-part milling in industries like aerospace, automotive, and energy. Its extended Z-axis travel allows for deep milling, drilling, and tapping on large, complex parts. Ideal for manufacturing engine blocks, structural components, molds, dies, and large valves, it optimizes productivity in demanding applications.
Specifications
X-Axis Travel: 64"
Y-Axis Travel: 50"
Z-Axis Travel: 40"
Rapid Rate: 600 IPM
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Spindle Taper: CT50

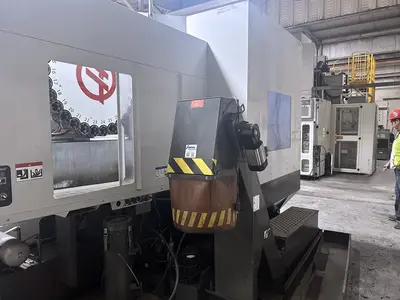

ATC: 30-Tool
Approx. Dimensions: 93" x 159" x 131"
Weight: 32,500 LBS
Table Size: 64" x 36"
Max Table Load: 10,000 LBS
Equipped With
Only 5323 Cutting Hours
Coolant Tank

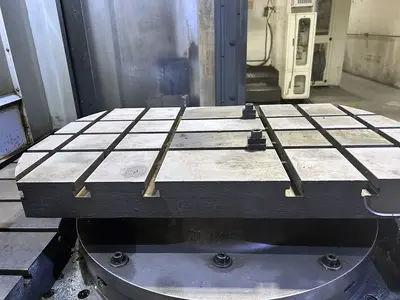

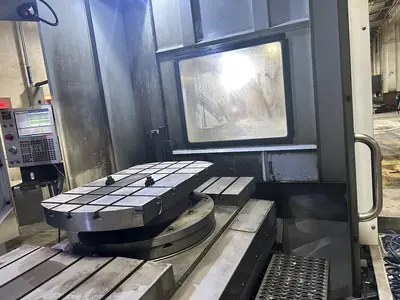

Integrated 4th Axis Platter
Rigid Tapping
Macros
Through Spindle Coolant

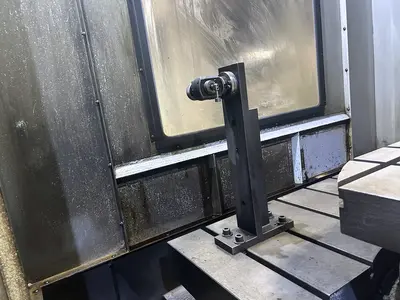

Tool Presetter
Renishaw Probing

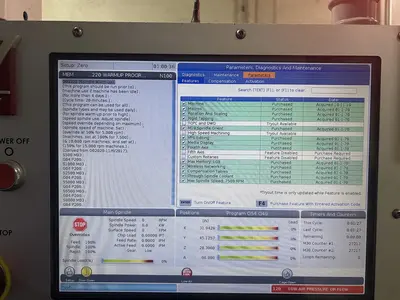

Haas NextGen Control
