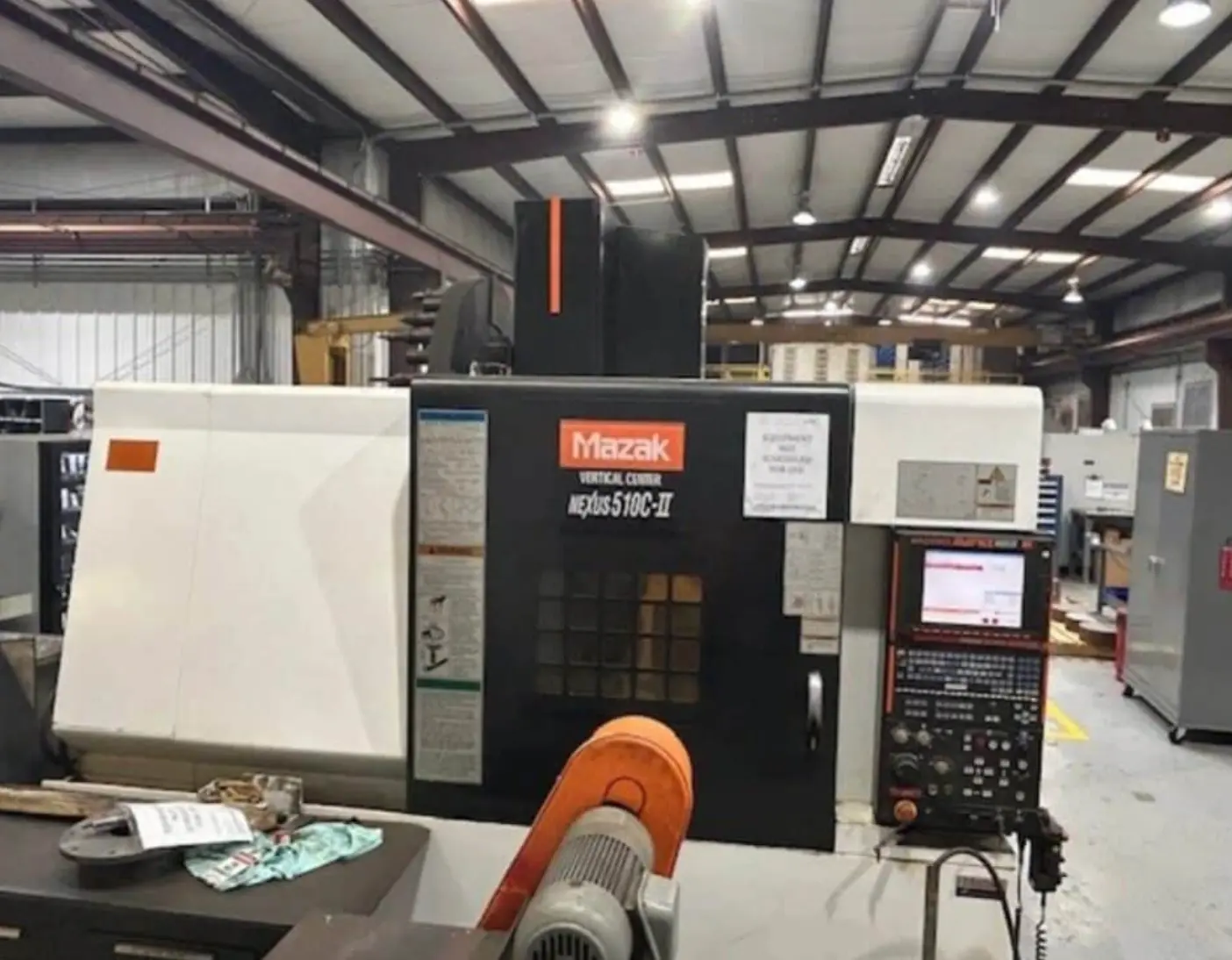

Used condition Vertical Machining Center, features X/Y/Z travels of 41.3/20/20 in and a 25 hp, 12000 RPM spindle. Equipped with Mazatrol Matrix Nexus control, Renishaw probing, chip conveyor, and USB port. 30-tool capacity.
| X | 41.3" | 1,049 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 21.6" | 548.64 mm |
| Table-L | 51.1" | 1,297.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
X Travel: 41.3 in (1049 mm)
Y Travel: 20 in (508 mm)
Z Travel: 20 in (508 mm)
Power: 25 hp (18.6 kW)
Spindle Speed:12000 RPM
Tool Changer Capacity: 30
Spindle Taper: Cat 40
Pallet Width: 21.6 in (548.64 mm)
Pallet Length: 51.1 in (1297.9 mm)
Table Capacity: 2640 lbs
Rapid Traverse Rate (X/Y/Z): 1417 IPM
Tool Changer Style: Side-Mount Twin-Arm
Tool Change Time: 1.3 Seconds
Max Tool Length: 13.8 in
Max Tool Weight: 17 lbs
Spindle Drive: 25 HP
Control Mazatrol Matrix Nexus, Renishaw Wireless Tool and Parts Probing System, Jorgensen Chip Conveyor System and USB Port
