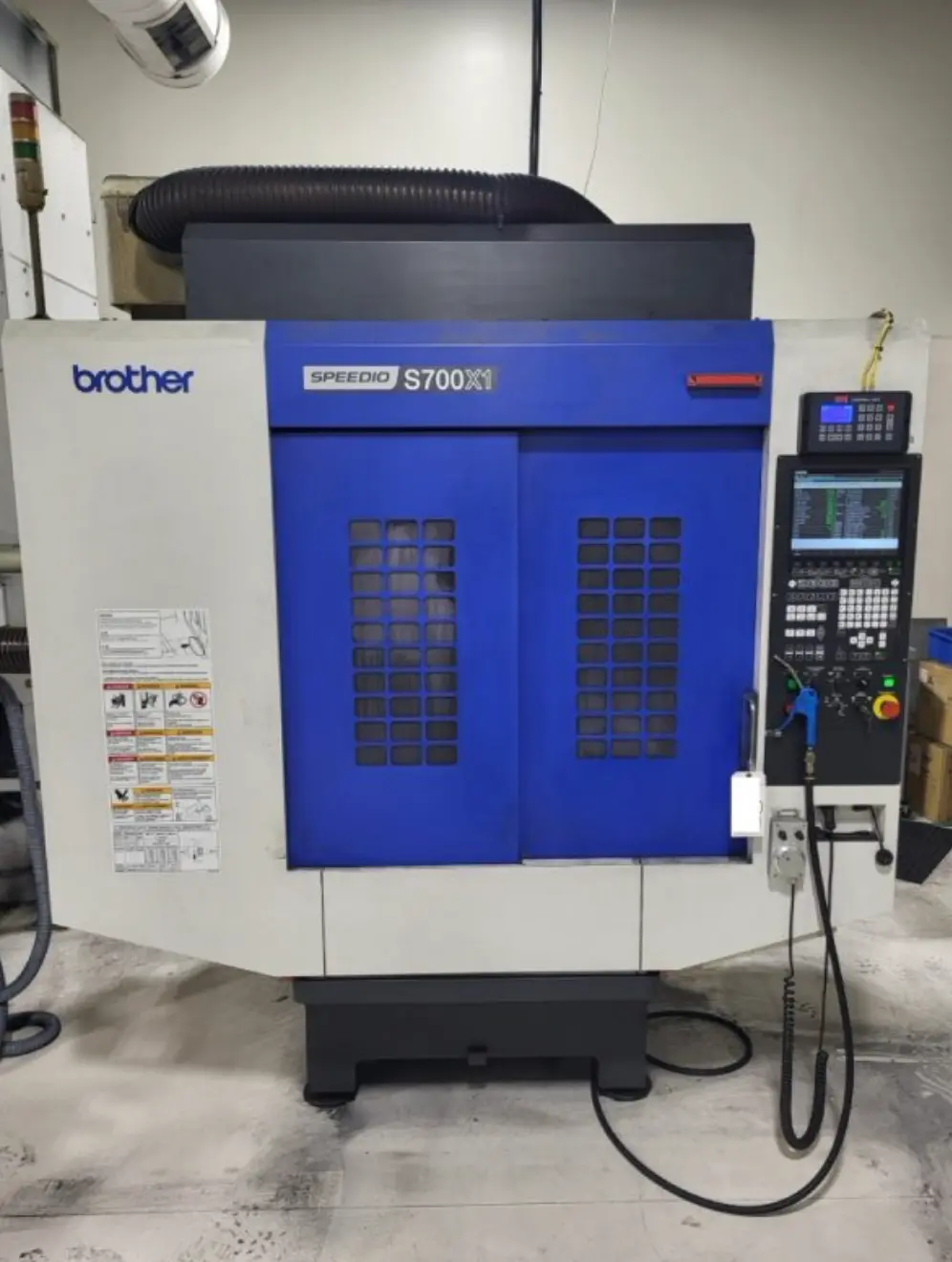

Used Vertical machining center featuring Brother CNC control, Yukiwa tilting rotary table, Blum probing, and Mistria mist collector. 10,000 RPM, 10 HP, 5-axis with a 21-tool capacity.
| X | 27.6" | 701.04 mm |
| Y | 15.7" | 398.78 mm |
| Z | 11.8" | 299.72 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT-30 | BT-30 |
| Table-W | 15.7" | 398.78 mm |
| Table-L | 31.5" | 800.1 mm |
| # Axis | 5 | 5 |
| Control | CNC (BROTHER) | CNC (BROTHER) |
| Dimensions | 82″ × 79″ × 90″ | 82″ × 79″ × 90″ |
| Weight | 6,200 lbs | 6,200 lbs |
Spindle Nose to Table: 5.1″ – 16.9″
Table Size: 31.5″ × 15.7″
Max Table Load: 1,323 lbs
Rapid Traverse X/Y/Z: 1,969 IPM
Cutting Feedrate: 0 – 787 IPM
Tool Capacity: 21 Tools
Tool Change Time (Tool-to-Tool): 0.8 sec
Power Requirement: 220V / 3-Phase
Brother CNC Control
5th axis YUKIWA CNC TILTING ROTARY TABLE
BLUM PROBING
MISTRIA MZ-10/15 MIST COLLECTOR
TOOLING NOT INCLUDED
