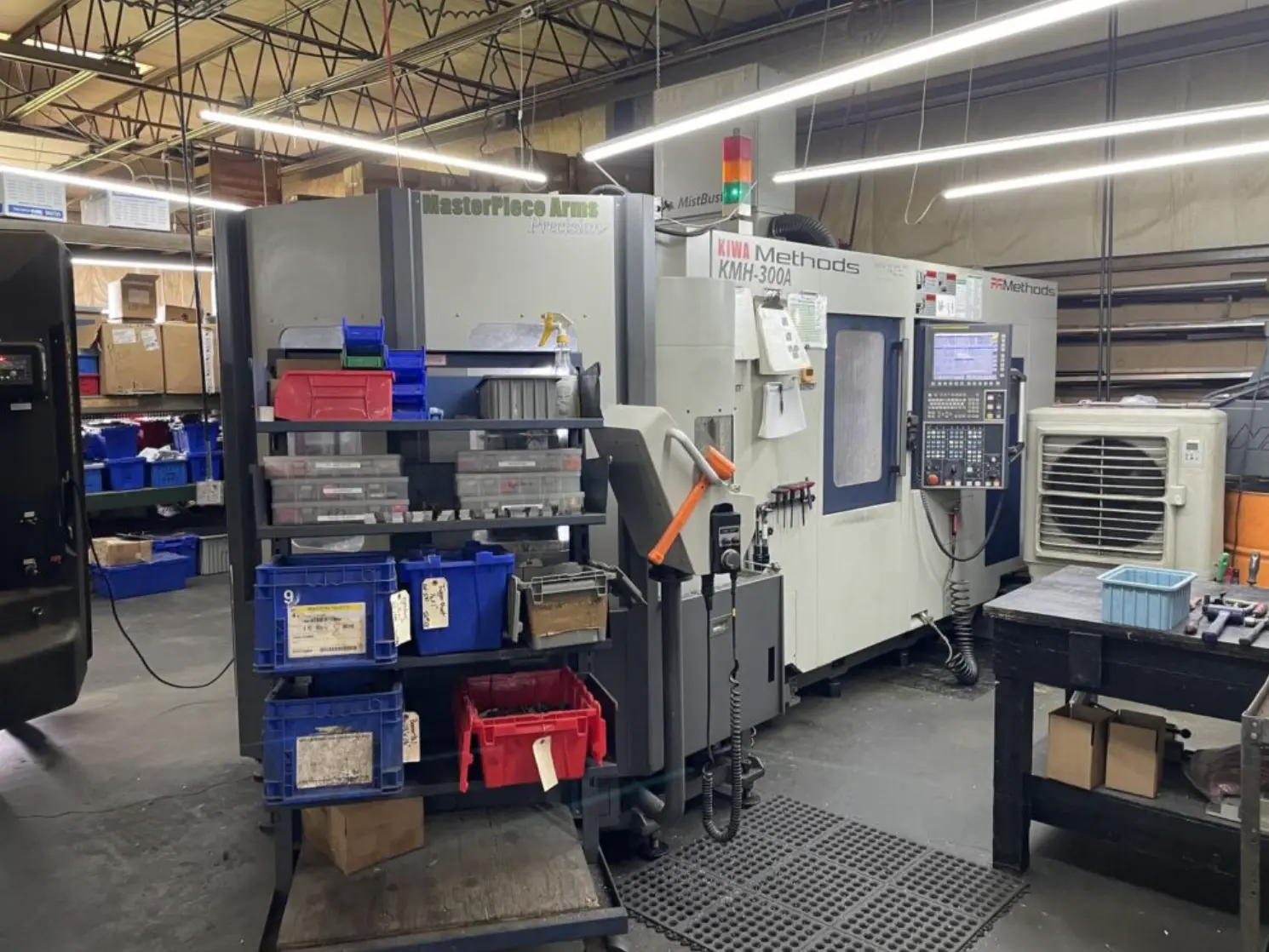

Used Horizontal Machining Center features 4-axis capability, 12,000 RPM spindle, and Fanuc Series Oi-MF controller. Equipped with 120 ATC, through spindle coolant, micro hinge conveyor, and Renishaw NC4 laser probe.
| X | 18.1" | 459.74 mm |
| Y | 18.1" | 459.74 mm |
| Z | 13.7" | 347.98 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT40 | CAT40 |
| Pallet-W | 12.6" | 320.04 mm |
| Pallet-L | 12.6" | 320.04 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Fanuc Series Oi-MF Controller, 12,000 RPM Spindle, 120 ATC, Through Spindle Coolant, Micro Hinge Conveyor, Chilled Ballscrews, Renishaw NC4 Laser Probe, CAT40, High Speed Machining, LNS Chip Conveyor
