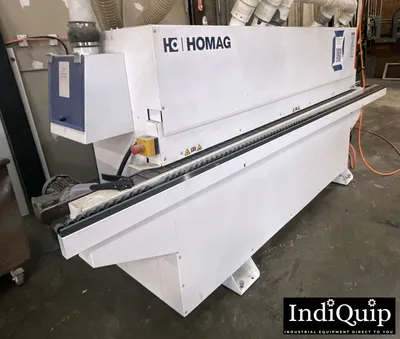

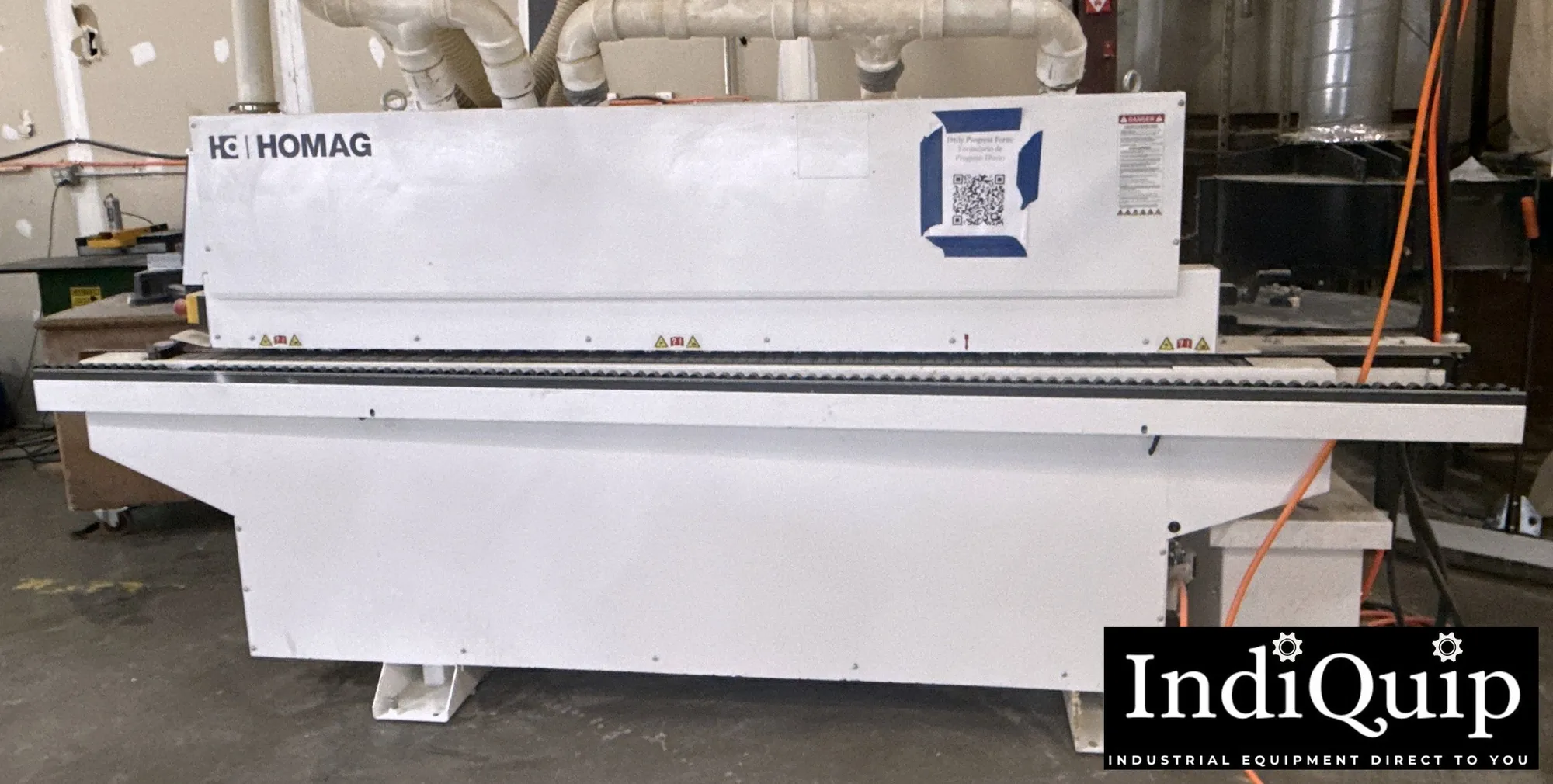

USED 2023 HOMAG Edgeteq S-200
Overview
Description
2023 HOMAG EDGETEQ S-200 (Optimat KDF 110) edgebander with 8–60 mm panel capacity and PUR glue capability. Compact single-sided edgebander with trimming, scraping, and buffing units for high-quality edge processing.
Specifications
Workpiece Thickness: 8 – 60 mm
Minimum Workpiece Width: 70 mm
Edgebanding Thickness (Roll): 0.3 – 3.0 mm
Edgebanding Thickness (Strip): 0.6 – 3.0 mm
Feed Speed: Up to 8 m/min
Machine Length: 3690 – 4305 mm (145" – 170")
Control System: HOMAG easyTouch (7" touchscreen)
Programs Capacity: 20 storable programs
Material Compatibility: Melamine, ABS/PVC, Veneer, Solid Wood
Gluing System: Hot-melt glue application (EVA / PUR compatible)
Equipped With
Joint Trimming Unit
Gluing Station
Snipping Unit
Chamfer / Radius Trimming Unit
Profile Trimming Unit
Profile Scraper
Glue Joint Scraper
Buffing Unit
