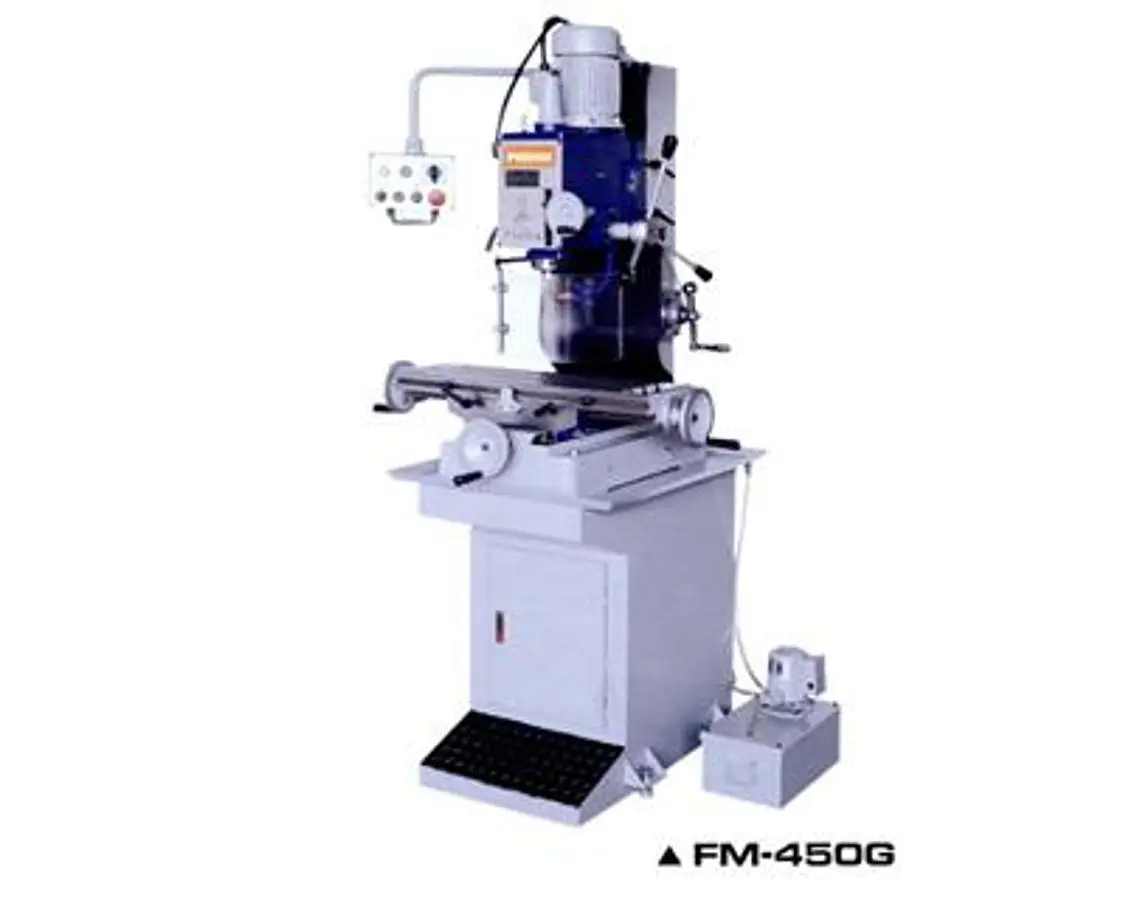

NEW TOP PHOENIX FM-450G FM-500GⅢ
Overview
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
Table surface: 210x730mm (8-1/4"x28-3/4") 240x820mm (9-7/16"x32-1/4")
Longitudinal travel (X axis): 430mm (16-15/16") 500mm (19-11/16")
Traverse travel (Y axis): 275mm (10-13/16") 350mm (13-3/4")
Vertical travel (Z axis): 335mm (13-3/16") 360mm (14-3/16")
Spindle dia.: Ø75mm (3")
Spindle taper: MT3 or R8
Spindle speed: (50HZ) 50~1250 r.p.m. (60HZ) 60~1500 r.p.m.
Quill travel: 120mm (4-3/4")
Spindle nose to table: 90~425mm (3-1/2"~16-3/4") 100~460mm (3-15/16"~18-1/8")
Spindle center to column surface: 275 (10-13/16")
Spindle swiveling angle (L&R): ±90°
Spindle motor: 1HP 1-1/2HP
Rapid feed of Z axis: 1/4HP gear motor (opt.) 1/4HP gear motor (opt.)
Coolant pump: 1/8HP (opt.) 1/8HP (opt.)
Dimension (w/stand): 870x890x1920mm (34-1/4"x35"x75-1/2") 1050x980x1875mm (41-5/16"x38-1/2"x73-13/16")
Net/gross weight: 400/435kgs (880/957 lbs) 700/760kgs (1540/1782 lbs)
