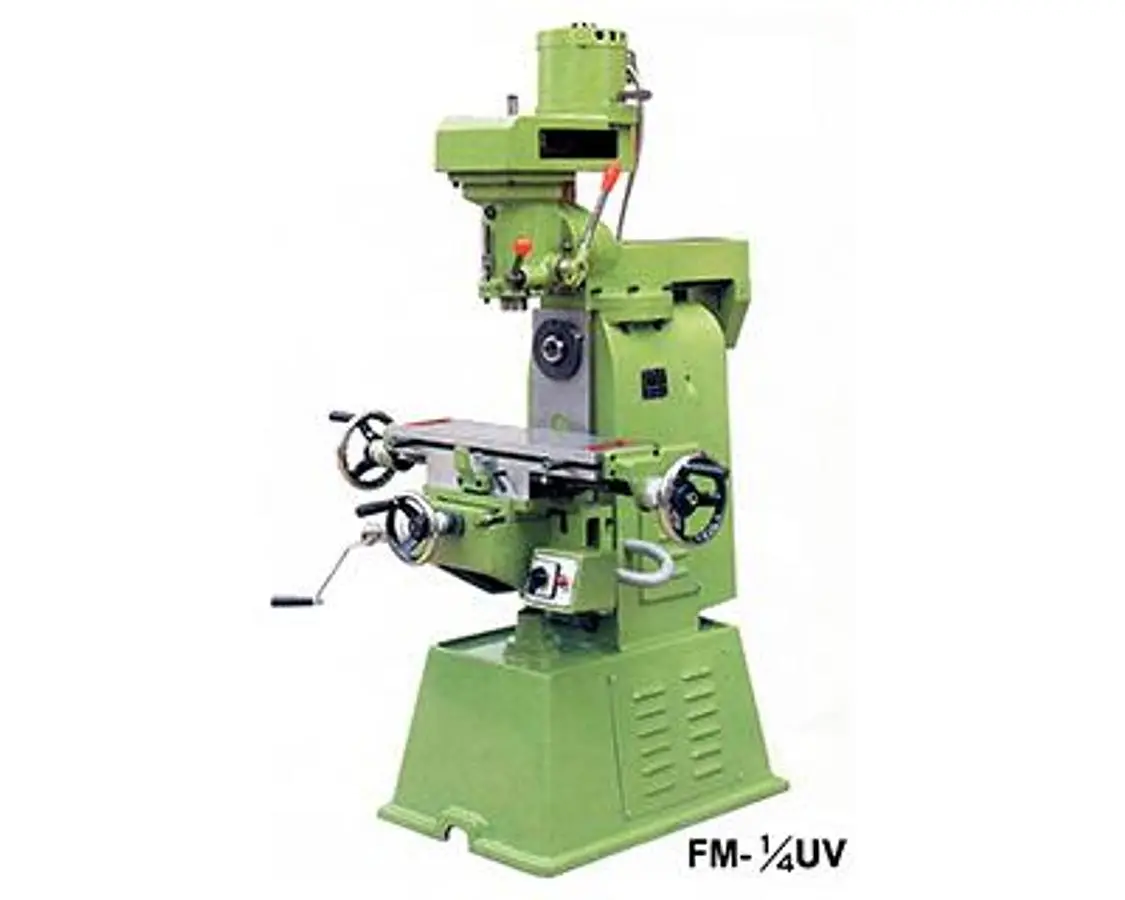

NEW TOP PHOENIX FM-1/4UV FM-3/4UV

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.

Table sizes: 160x545mm (6-1/4"x21-7/16") 220x815mm (8-11/16"x32-1/16")
Longitudinal travel (X-axis): 270mm (10-5/8") 420mm (16-1/2")
Traverse travel (Y-axis): 125mm (4-15/16") 220mm (8-5/8")
Vertical travel (Z-axis): 230mm (9") 370mm(14-9/16")
Horizontal spindle size: N.S.T. 30 x 1"
Horizontal spindle motor: 3ph, 2HP
No. of horizontal spindle speed: 4 NOS. 6 NOS.
Range of horizontal spindle speed: 240~1200 r.p.m. (240, 410, 710, 1200 r.p.m.) 80~760 r.p.m. (80, 105, 220, 290, 370, 760 r.p.m.)
Vertical spindle center to column: 135~375mm(5-5/16"~14-3/4") 215~595mm (8-7/16"~23-7/16")
Quill travel of vertical spindle: 80mm(3-1/8") 110mm (4-5/16")
Swivel angle (R&L) of vertical milling head: 45°
Swivel angle of ram: 180°
No. of vertical spindle speed: 4 Nos.
Range of vertical spindle speed: 500~1720 r.p.m. (500, 850, 1200, 1720 r.p.m.) 480~2050 r.p.m. (480, 850, 1350, 2050 r.p.m.)
Vertical spindle motor: 3ph, 1HP 3ph, 2HP
Packing dimension: 950x850x1550 mm (37-3/8"x33-7/16"x61") 1300x1200x1950 mm (51-3/16"x47-1/4"x76-3/4")
Net weight: 360kgs (794 lbs) 780kgs (1720 lbs)
