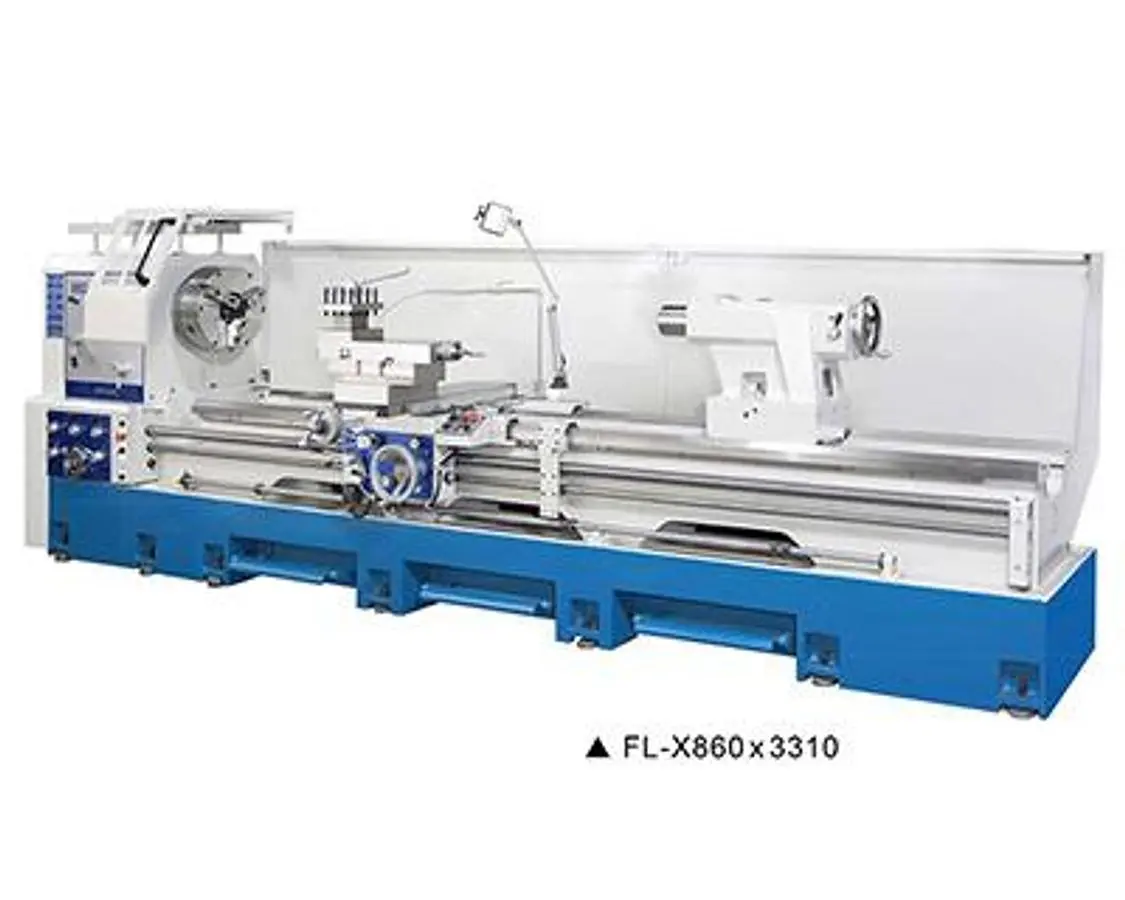

NEW TOP PHOENIX FL-X860 FL-X960 FL-X1060
Overview
Specifications
1810: 2310 3310 4310 5310 6310 7310 8310
Swing over bed: 860mm(33-13/16") 960mm(37-3/4") 1060mm(41-11/16")
Swing over cross slide: 625mm(24-9/16") 725mm(28-1/2") 825mm(32-7/16")
Distance between centers: 1810mm (71-1/4") 2310mm (90-7/8") 3310mm (130-1/4") 4310mm (169-5/8") 5310mm (209") 6310mm (248-3/8") 7310mm (287-3/4") 8310mm (327-1/8")
Swing over gap: 1180mm(46-7/16") 1280mm(50-3/8") 1370mm(53-15/16")
Gap length: 475mm(18.700")
Bed width: 510mm(20.079")
Spindle nose: A2-11 / A2-15(opt.)
Spindle bore: 158mm(6.220") / 230mm(9.055")(opt.)
Taper of spindle bore: MT 7 / 1/20(opt.)
Spindle speed: 8~680r.p.m.(12 steps)/6~500r.p.m.(12 steps)(opt.)
Inch threads range: 2~28 T.P.I.
Metric threads range: P 0.8~14mm
Longitudinal feeds range: 0.05~0.07mm/rev.
Cross feeds range: 0.025~0.35mm/rev.
Leadscrew diameter: 45mm(1.772")
Leadscrew pitch: 2 T.P.I./P 12mm(opt.)
Taper of tailstock center: MT 6
Tailstock quill travel: 290mm(11-3/8")
Tailstock quill diameter: 120mm(4.724")
Main drive motor: 20 HP / 30 HP(opt.)
Coolant pump: 1/8 HP (0.1KW)
Compound rest travel: 330mm(13")
Cross slide travel: 520mm(20-7/16")
Net weight (kgs) (approx.) (FL-X860): 5700 6100 6800 7600 8400 9200 10000 10800
