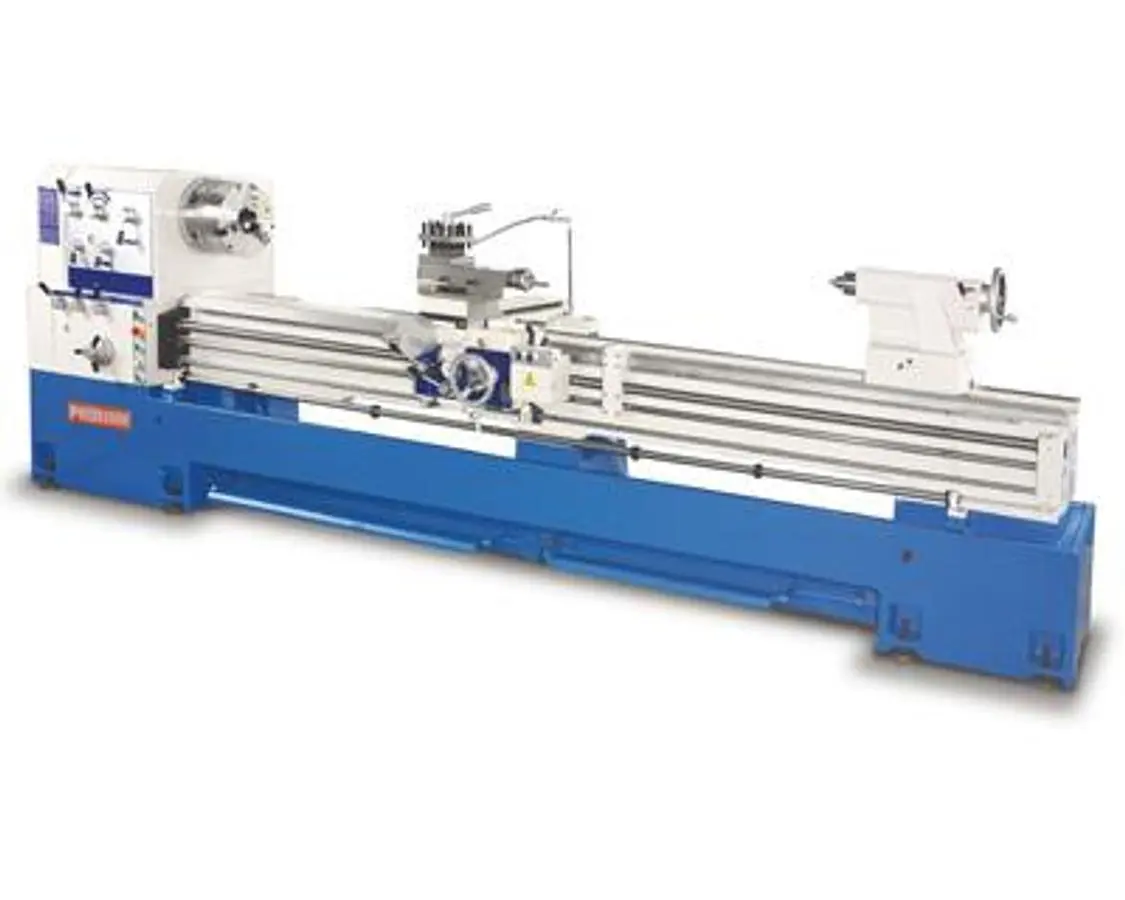

NEW TOP PHOENIX FL-L560 FL-L660 FL-L760 FL-L830

The manufacturer reserves the right to modify the design, specifications, mechanisms¡Ketc. to improve the performance of the machine
without prior notice. All the specifications shown above are just for reference.

1000: 1500 2000 2500 3300 4300
Swing over bed: 560mm(22") 660mm(25-15/16") 760mm(29-7/8") 830mm(32-5/8")
Swing over cross slide: 340mm(13-3/8") 440mm(17-5/16") 540mm(21-1/4") 610mm(24")
Center height: 280mm(11.024") 330mm(12.992") 380mm(14.960") 415mm(16.339")
Distance between centers: 1000mm (39-3/8") 1500mm (59") 1930mm (75-7/8") 2430mm (95-5/8") 3180mm (125-1/8") 4225mm (166-1/4")
Swing over gap: 788mm(31") 890mm(35") 990mm(38-15/16") 1060mm(41-11/16")
Bed width: 400mm(15.748")
Spindle nose: ASA D1-8 / D1-11 (opt.) ASA D1-11
Spindle bore: 85mm(3.346")/120mm(4.724")(opt.) 120mm(4.724")
Taper of spindle bore: MT7
Spindle speed: 15~1500 r.p.m. (12 steps) (Ø85mm bore) / 10~1000 r.p.m. (12 steps) (Ø120mm bore) 10~1000 r.p.m. (12 steps)
Inch threads range: 2~56 T.P.I.
Metric threads range: P0.5~14mm
Longitudinal feeds range: 0.05~0.82mm(0.002~0.032")
Cross feeds range: 0.02~0.4mm(0.001~0.0094")
Leadscrew diameter: 38mm(1.496")
Leadscrew pitch: 4 T.P.I. or 6mm
Taper of tailstock center: MT5
Tailstock quill travel: 165mm(6-1/2")
Tailstock quill diameter: 85mm(3.346")
Main drive motor: 10HP(7.5KW) / 15HP/6P(11KW)(opt.) 15HP/6P(11KW)
Coolant pump: 1/8HP(0.1KW)
Compound rest travel: 200mm(7-7/8")
Cross slide travel: 375mm(14-3/4")
Net weight (kgs): 2200/2550/2900 3150/3650/4860 2280/2630/2980 3230/3730/4940 2360/2710/3060 3310/3810/5020 2410/2760/3110 3360/3860/5070
