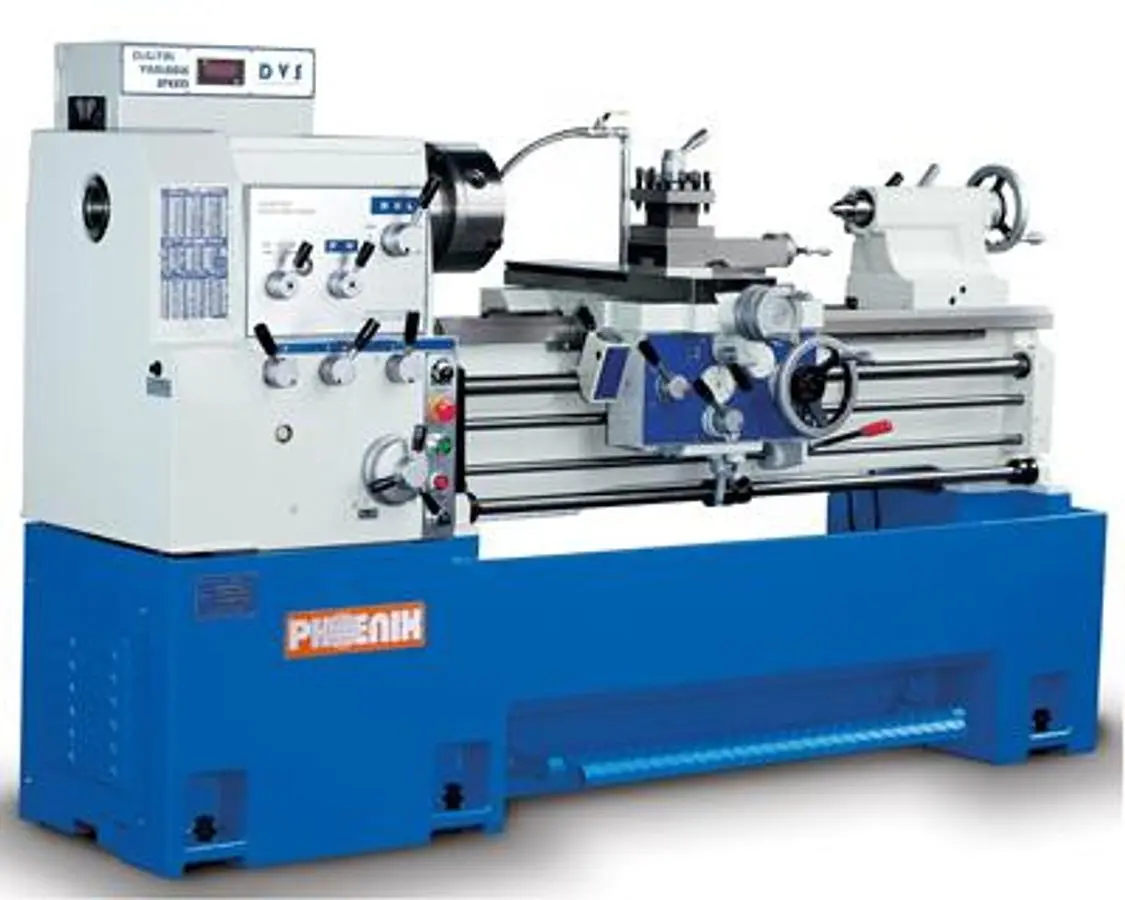

NEW TOP PHOENIX FL-V430 FL-V480 FL-V530

560: 760 1000 1500 2200
Swing over bed: 430mm(16-7/8") 470mm(18-1/2") 520mm(20-7/16")
Swing over cross slide: 240mm(9-7/16") 280mm(11") 330mm(12-15/16")
Center height: 215mm(8.465") 235mm(9.252") 260mm(10.236")
Distance between centers: 510mm(20") 690mm(27-1/8") 940mm(37") 1440mm (56-5/8") 2200mm(86-1/2")
Swing over gap: 650mm(25-9/16") 690mm(27-1/8") 740mm(29-1/8")
Bed width: 300mm(11.811")
Spindle nose: ASA D1-6/D1-8(opt.) ASA D1-8
Spindle bore: 58mm(2.283") / 80mm(3.150")(opt.) 80mm(3.150")
Taper of spindle bore: MT 6 / MT7(opt.)
Spindle speed: 20~2000r.p.m.(stepless)
Inch threads range: 4~56 T.P.I.
Metric threads range: P 0.5~7mm
Longitudinal feeds range: 0.05~0.82mm(0.002~0.032")
Cross feeds range: 0.02~0.4mm(0.001~0.0094")
Leadscrew diameter: 35mm(1.378")
Leadscrew pitch: 4 T.P.I. or 6 mm
Taper of tailstock center: MT 4
Tailstock quill travel: 150mm(5-7/8")
Tailstock quill diameter: 58mm(2.283") 68mm(2.677")
Main drive motor: 7.5HP(5.625KW)
Coolant pump: 1/8HP(0.1KW)
Compound rest travel: 125mm(4-7/8")
Cross slide travel: 245mm(9-5/8") 275mm(10-13/16")
Net weight (kgs): 1500 / 1680 / 1760/ 2050 / 2405 1540 / 1720 / 1800/ 2075 / 2465 1580 / 1760 / 1810 /2135 / 2525
