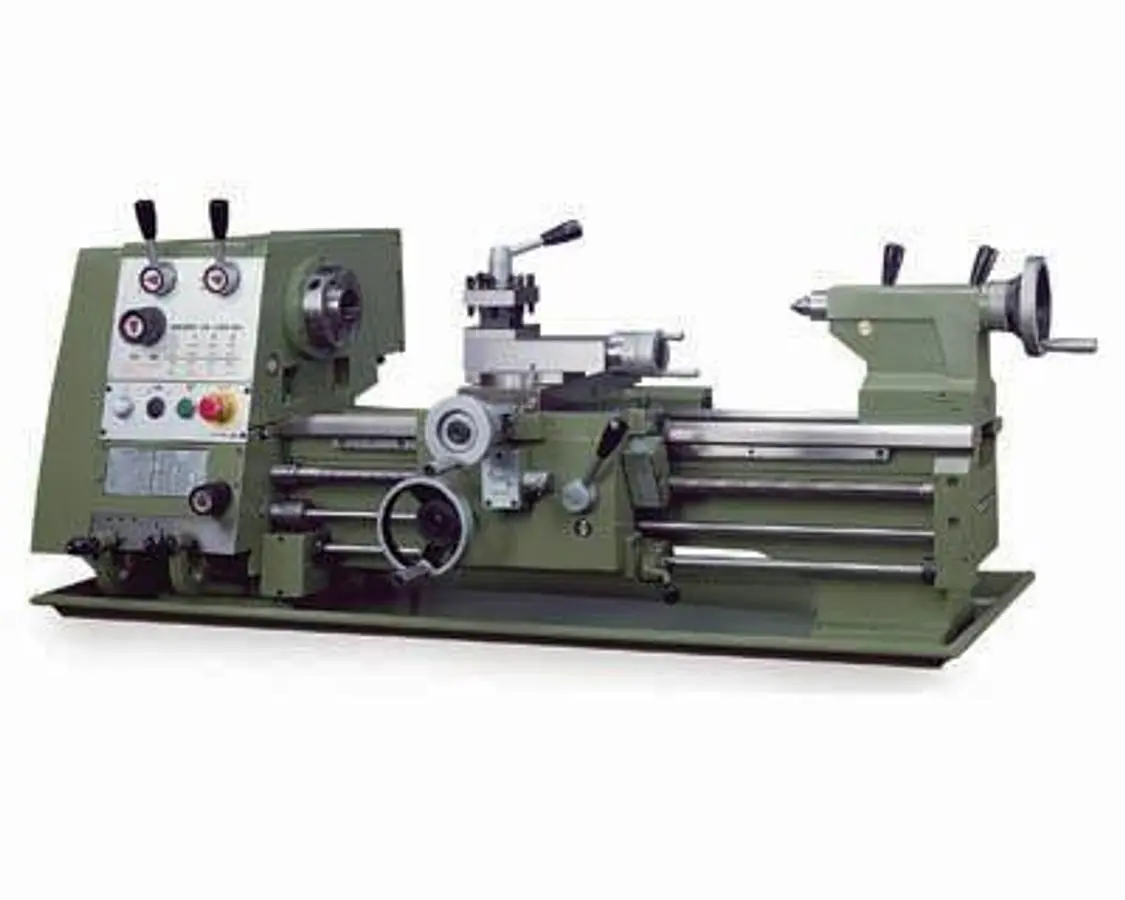

NEW TOP PHOENIX FL-1216GH FL-1224GH FL-1236GH FL-1324GH FL-1336GH FL-1340GH
Overview
Specifications
Swing over bed: 305mm (12”) 330mm (13”)
Swing over cross slide: 166mm (6-9/16”) 190mm (7-1/2”)
Swing in gap: 461mm (18-1/8”) 486mm (19-1/8”)
Gap length in front of face plate: 122mm (4-3/4”)
Distance between centers: 406mm (16”) 609mm (24”) 915mm (36”) 609mm (24”) 915mm (36”) 1000mm (40”)
Hole through spindle: 40mm (1-9/16”)
Taper of spindle bore: M.T.No.5
Taper of center: M.T.No.3
No. & range of spindle speeds: 12 Nos. 70-1400 r.p.m.
Spindle nose: D1-4
Dia. & pitches of lead screw: 22mmx4mm (Metric) or 7/8x8 T.P.I. (Inch)
Number of threads for Metric lead screw: 24(Metric), 39 (Inch)
Range of pitches for Metric lead screw: 0.25-7mm (Metric), 3 1/2-104 T.P.I. (Inch)
Number of threads for Inch lead screw: 24 (Metric), 40 (Inch)
Range of threads for Inch lead screw: 0.25-7.5mm (Metric), 4-112 T.P.I. (Inch)
Cross slide travel: 170mm (6-3/4”)
Compound rest travel: 90mm (3-1/2”)
Max. size cutting tool: 16mmx16mm (5/8”x5/8”)
Dia. & travel of quill: Ø40mm (1-9/16”) & 100mm (4”)
Taper of quill: M.T. No. 3
Width of bed: 190mm (7-1/2”)
Floor space (L x W x H): 1140x635 x584 mm (44-7/8”x25” x23”) 1290x635 x584 mm (50-3/4”x25” x23”) 1670x635 x584 mm (65-3/4”x25” x23”) 1290x635 x597mm (50-3/4”x25” x23-1/2”) 1670x635 x597 mm (65-3/4”x25 ”x23-1/2”) 1770x635 x597 mm (69-11/16”x25” x23-1/2”)
Net weight: 260kgs 280kgs 310kgs 280kgs 310kgs 320kgs
Motor: 1 1/2HP
Packing size (L x W x H): 1270x750 x750mm (50”x30” x30”) 1420x750 x750mm (56”x30” x30”) 1780x750 x750mm (70”x30” x30”) 1420x750 x750mm (56”x30” x30”) 1780x750 x750mm (70”x30”x30”) 1855x750 x750mm (79”x30” x30”)
Gross weight: 310kgs 330kgs 370kgs 330kgs 370kgs 380kgs
