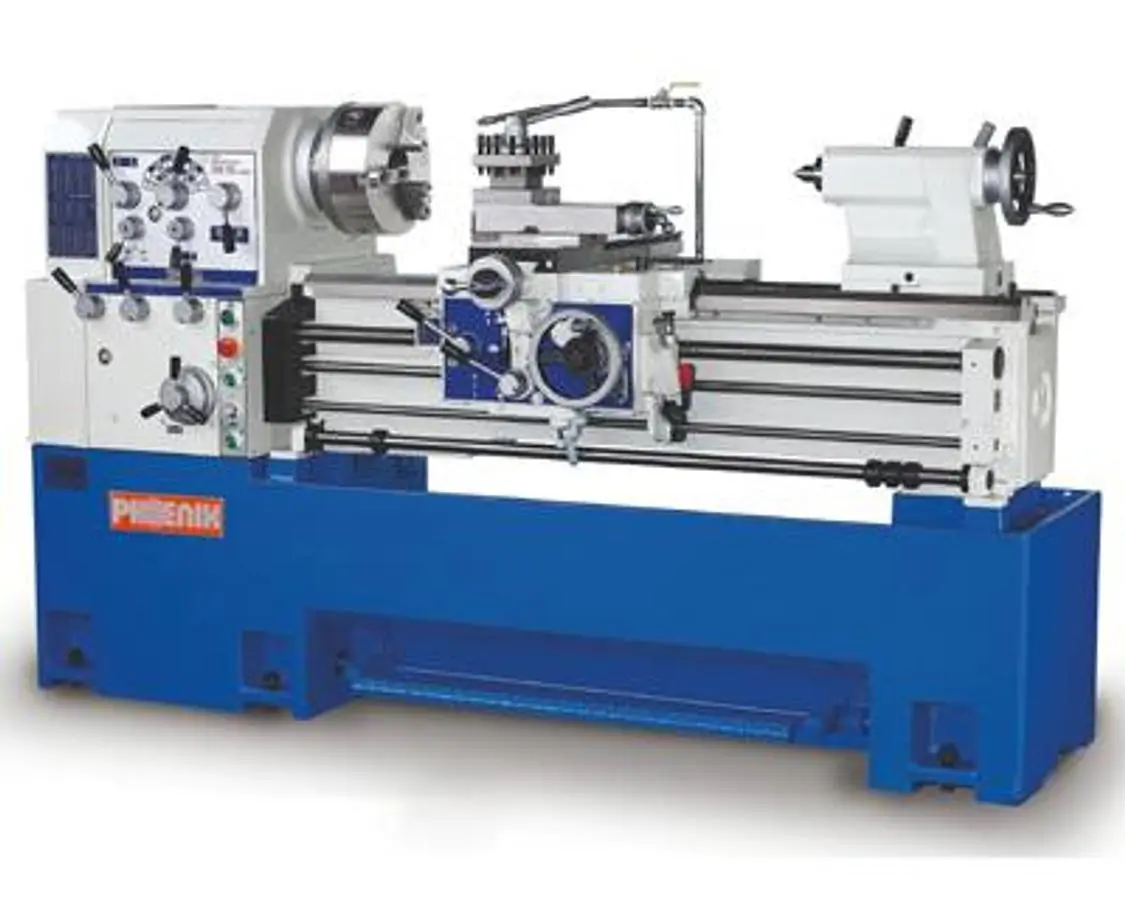

NEW TOP PHOENIX FL-S430 FL-S480 FL-S530 FL-M560 FL-M660
Overview
Description
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Specifications
560: 760 1000 1500 2200 1000 1500 2200
Swing over bed: 430mm(16-7/8") 470mm(18-1/2") 520mm(20-7/16") 560mm(22") 660mm(25-15/16")
Swing over cross slide: 240mm(9-7/16") 280mm(11") 330mm(12-15/16") 340mm(13-3/8") 440mm(17-5/16")
Center height: 215mm(8.465") 235mm(9.252") 260mm(10.236") 280mm(11.024") 330mm(12.992")
Distance between centers: 510mm (20") 690mm (27-1/8") 940mm (37") 1440mm (56-5/8") 2200 mm (86-1/2") 1000mm (39-3/8") 1500mm (59") 2200mm (86-1/2")
Swing over gap: 650mm (25-9/16") 690mm(27-1/8") 740mm (29-1/8") 788mm(31") 890mm(35")
Bed width: 300mm(11.811") 350mm(13.780")
Spindle nose: ASA D1-6/D1-8(opt.) ASA D1-8 ASA D1-8
Spindle bore: 58mm(2.283") / 80mm(3.150")(opt.) 80mm(3.150") 85mm(3.346") / 105mm(4.134")(opt.)
Taper of spindle bore: MT 6 / MT7(opt.) MT7
Spindle speed: 20~2000r.p.m.(12 steps)-spindle bore:58mm/ 40~2000r.p.m.(12 steps)-spindle bore:80mm 15~1500r.p.m. (12 steps)(Ø85mm bore)/ 14~1380r.p.m.(12 steps)(Ø105mm bore)
Inch threads range: 4~56 T.P.I. 2~56 T.P.I.
Metric threads range: P 0.5~7mm P 0.5~14mm
Longitudinal feeds range: 0.05~0.82mm(0.002~0.032") 0.05~0.82mm(0.002~0.032")
Cross feeds range: 0.02~0.4mm(0.001~0.0094") 0.02~0.4mm(0.001~0.0094")
Leadscrew diameter: 35mm(1.378") 38mm(1.496")
Leadscrew pitch: 4 T.P.I. or 6mm 4 T.P.I. or 6mm
Taper of tailstock center: MT 4 MT 5
Tailstock quill travel: 150mm(5-7/8") 165mm(6-1/2")
Tailstock quill diameter: 58mm(2.283") 68mm(2.677") 75mm(2.953")
Main drive motor: 5HP(3.75KW)/ 7.5HP(5.625KW(opt.) 7.5HP(5.625KW)/ 10HP(7.5KW)(opt.) 7.5HP(5.625KW)/ 10HP(7.5KW)(opt.)
Coolant pump: 1/8HP(0.1KW) 1/8HP(0.1KW)
Compound rest travel: 125mm(4-7/8") 200mm(7-7/8")
Cross slide travel: 245mm(9-5/8") 275mm(10-13/16") 300mm(11-13/16")
Net weight (kgs): 1500 / 1680 / 1760 / 2050 / 2405 1540 / 1720 / 1800 / 2075 / 2465 1580 / 1760 / 1810 /2135 / 2525 2200 / 2400 / 2750 2250 / 2450 / 2800
