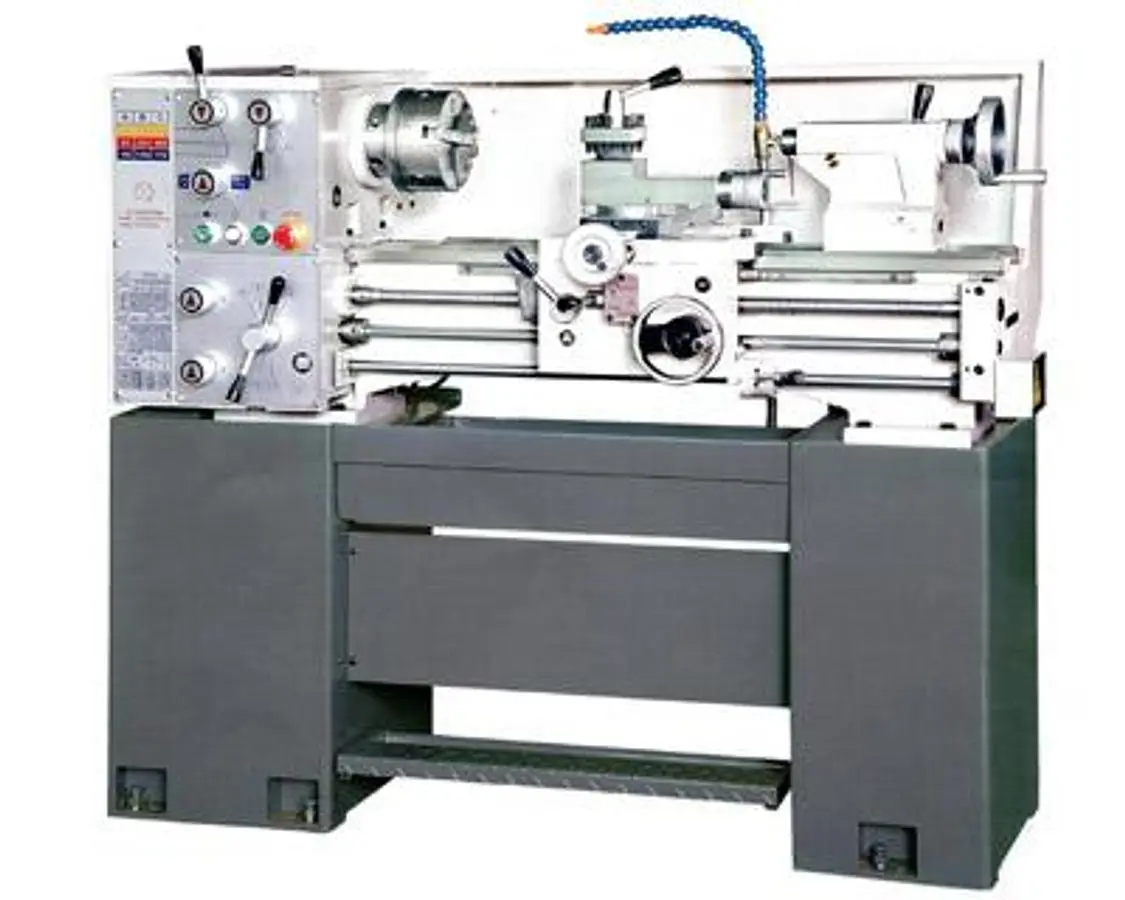

NEW TOP PHOENIX FL-1324E FL-1424E FL-1340E FL-1440E

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Swing over bed: 330mm(13") 360mm(14") 330mm(13") 360mm (14")
Swing over cross slide: 190mm (7-1/2") 225mm(8-3/4") 190mm(7-1/2") 225mm (8-3/4")
Distance between centers: 600mm(24") 1000mm(40")
Swing over gap: 490mm(19-1/4") 520mm(20-3/4") 490mm(19-1/4") 520mm(20-3/4")
Width of bed: 190mm(7-1/2”)
Number of spindle speeds: 9
Range of spindle speeds: 82-2000R.P.M.
Hole through spindle: 40mm(1-1/2")
Spindle nose: D1-4 Camlock
Taper of spindle bore: M.T.No.5
Main motor: 2HP, 1ph, or 3HP, 3ph
Tailstock quill taper: M.T.No.3
Tailstock quill travel: 100mm(4")
Cross slide travel: 165mm(6-1/2")
Compound rest travel: 100mm(4")
Metric threads: (30)0.4-7.0MM
Inch threads: (32)4-56 T.P.I.
Longitudinal feeds: 0.068-0.936mm/rev.(0.0026"-0.0638"/rev.)
Cross feeds: 0.034-0.468mm/rev. (0.0013"-0.0319"/rev.)
Machine net weight: 580kgs(1276 lbs) 600kgs(1320 lbs) 600kgs(1320 lbs) 620kgs(1364 lbs)
Machine gross weight: 660kgs(1452 lbs) 700kgs(1540 lbs) 700kgs(1540 lbs) 720kgs(1584 lbs)
Case dimension LxWxH: 1473x762x1473mm(58"x30"x58") 1855x762x1473mm(73"x30"x58")
