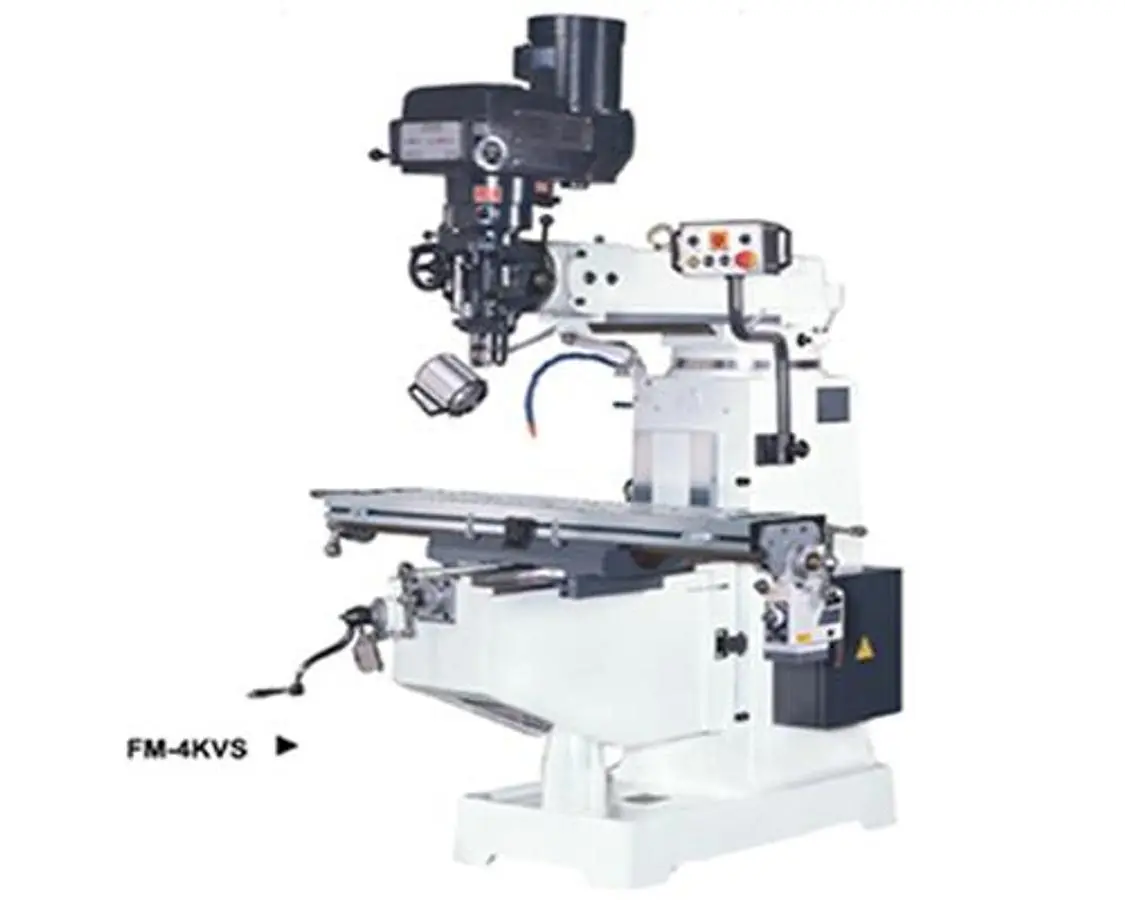

NEW TOP PHOENIX 70~4200 R.P.M.(50/60HZ)

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Table size: 1270x254mm (50"x10") 1370x254mm (54"x10")(opt.) 1370x305mm (54"x12") 1524x305mm(60"x12")(opt.)
No. of T-slots: 3
T-slots width: 16
Slideway hardened & surface ground: YES
Table surface hardened & ground: YES
Slideway "dovetail" or "square": X Axis : Dovetail Y/Z Axes : Square
X axis: 800mm (31-1/2") 915mm (36") (w/opt. 54"x10" table) 800mm (31-1/2") 1100mm(43-5/16") (w/opt. 60"x12" table)
Y axis: 380mm(15") 430mm(17") 380mm(15")
Z axis: 430mm(17") 520mm(20-7/16") 480mm(18-7/8")
Distance from spindle nose to table surface: 50~480mm (2"~18-7/8") 50~570mm (2"~22-7/16") 50~530mm (2"~20-7/8")
Distance from spindle center to column: 120~660mm (4-11/16"~26") 220~750mm (8-5/8"~29-1/2")
Travel reduced with power feed: 60mm (X axis) None
Head swivel angle (R/L): ±90°
Head tilting angle (up/down): ±45°
Ram travel: 508mm(20") / 530mm (20-13/16")(NT40) 530mm(20-13/16")
Main motor: 3HP / 5HP(opt.) 5HP
Spindle taper: R8 or NT30, NT40(opt.) NT40
Spindle travel: 127mm(5")
Quill feed rate: 0.04, 0.08, 0.15 mm/rev
Quill diameter: 85.7mm(3-3/8") / 100mm(3-15/16")(opt.) 100mm(3-15/16")
Machine net weight: 1050 kgs 1300 kgs 1400 kgs
