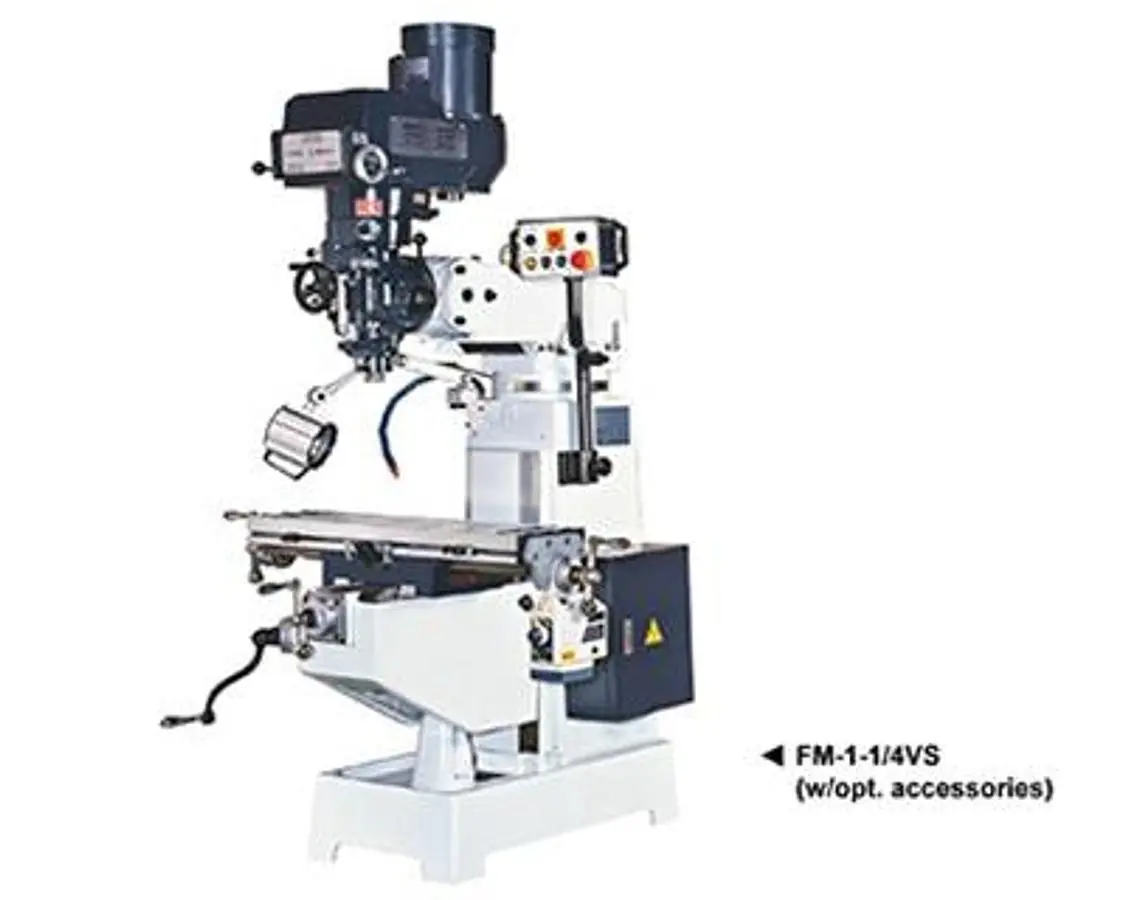

NEW TOP PHOENIX 60~3600 R.P.M(50HZ)                                           70~4200 R.P.M(60HZ)

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Table size: 889x228mm (35"x9") 1067x228 mm (42"x9") or 1244x228mm(49"x9") 1270x254mm (50"x10") 1370x254mm(54"x10")(opt.)
No. of T-slots: 3
T-slots width: 16
Slideway hardened & surface ground: YES
Table surface hardened & ground: YES
Slideway "dovetail" or "square": X/Y/Z Axes : Dovetail
X axis: 610mm (24") 700mm (27-1/2") 860mm (33-13/16") (w/opt. 49"x9" table) 800mm (31-1/2") 915mm (36") (w/opt. 54"x10" table)
Y axis: 300mm(11-13/16") 330mm(13") 380mm(15")
Z axis: 380mm(15") 410mm(16-1/8") 430mm(17")
Distance from spindle nose to table surface: 50~430mm (2"~17") 50~460mm (2"~18-1/8") 50~480mm (2"~18-7/8")
Distance from spindle center to column: 140~450mm (5-1/2"~17-11/16") 160~490mm (6-5/16"~19-5/16") 140~660mm (5-1/2"~26")
Travel reduced with power feed: 40mm 60mm (X axis)
Head swivel angle (R/L): ±90°
Head tilting angle (up/down): ±45°
Ram travel: 310mm(12-3/16") 350mm(13-3/4") 508mm(20")
Main motor: 2HP 3HP 3HP / 5HP(opt.)
Spindle taper: R8 or NT30 R8 or NT30, NT40(opt.)
Spindle travel: 127mm(5")
Quill feed rate: 0.04, 0.08, 0.15 mm/rev
Quill diameter: 85.7mm(3-3/8")
Machine net weight: 650 kgs 950 kgs 1000 kgs
