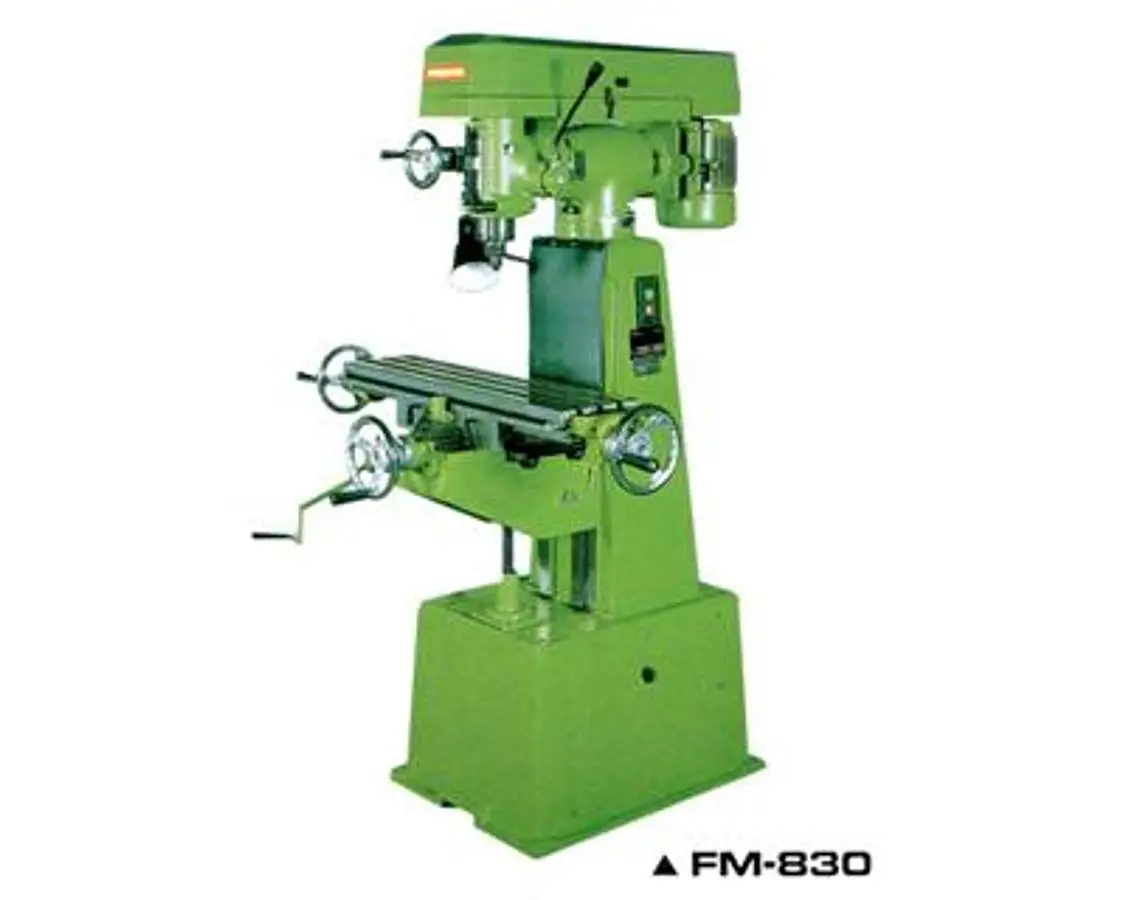

NEW TOP PHOENIX FM-626 FM-830
Overview
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.
Specs
Longitudinal travel: 370mm (14-1/2") 440mm (17-5/16")
Traverse travel: 150mm (6") 200mm (8")
Spindle nose to table surface: 0-320mm (0-12-1/2") 65-480mm (2-1/2"-18-7/8")
Distance between spindle and column: 155mm (6") 195mm (7-5/8")
Head tilting angle (R & L): 90°
Ram swivelling angle: 360°
Taper of spindle: MT3 or R-8 or NT30
No. of spindle speeds: 9
Range of spindle speeds: 230-2500 r.p.m. 270-3200 r.p.m.
Spindle travel: 80mm (3-1/8")
Motor: 1-1/2HP 1ph or 3ph
T-slotted table size: 152x600mm (6"x26") 205x760mm (8"x30")
Floor space (LxWxH): 1085x990x1180mm (42-3/4"x39"x46-1/2") 1210x1120x1700mm (47-5/8"x44"x67")
Net weight: 260kgs (572 lbs) 450kgs (990 lbs)
Packing dimension (LxWxH): 1020x1070x1475mm (40"x42"x58") 1120x1120x1930mm (44"x44"x76")
Gross weight: 360kgs (792 lbs) 540kgs (1188 lbs)
