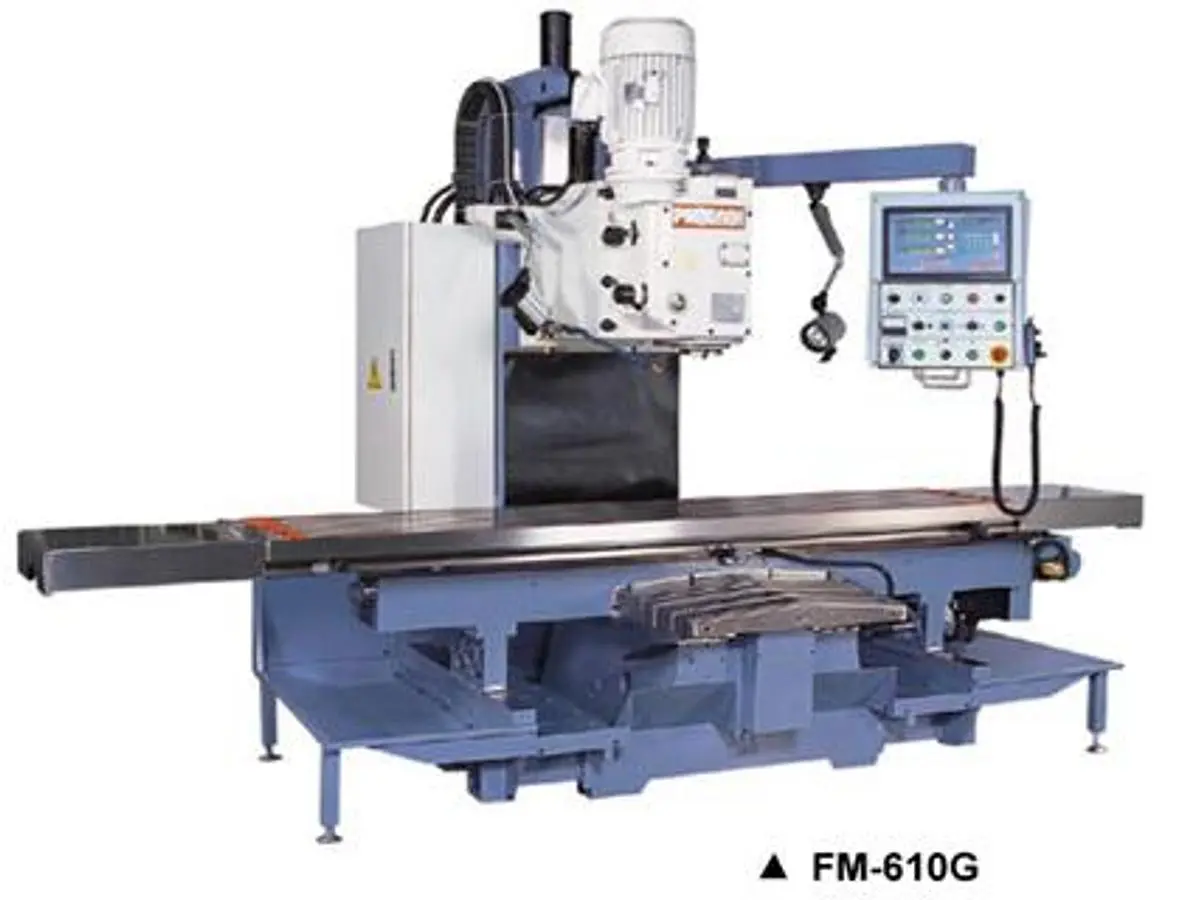

NEW TOP PHOENIX FM-610 FM-610F FM-610G

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference

Working surface: 2450 x 580mm (96-7/16"x22-13/16")
T-slot (size x number x pitch): 18mmx4x70mm (0.708"x4x2.755")
Max. table load: 1500kgs (3315 lbs)
Longitudinal travel (X axis): 2000mm (78-3/4")
Cross travel (Y axis): 650mm (25-5/8")
Vertical travel (Z axis): 700mm (27-9/16") or 800/900/1000 mm (opt.) 600mm (23-5/8") or 700/800/900mm (opt.)
Distance from spindle end to table: 100~800/900/1000/ 1100mm 90~690/790/890/ 990mm 120~720/820/920/ 1020mm
Distance from spindle center to cloumn: 650mm (25-9/16") 610mm (24")
Spindle nose taper: NT40 / BT40 NT50 / BT50
Spindle speeds: Inverter operated vari 85~3600r.p.m. Inverter operated vari 60~3000r.p.m. (3 steps) 6 steps 125~1100r.p.m. (60HZ) or 104~1400r.p.m. (50HZ)
Quill dia: Ø110mm (4-5/16") Ø128.57mm (5")
Cutting feed rate X,Y,Z axes: vari 10~3000 mm/min.
Rapid traverse X,Y,Z axes: vari 4800 mm/min.
Spindle drive motor: 7-1/2HP 10HP/ 4P or 15HP/4P (opt.) 10HP 2P/4P
X,Y,Z axes motor: 4.5Nm
Coolant pump: 1/8HP
Machine weight (net): 5700kgs (12597 lbs) 6000kgs (13260 lbs)
