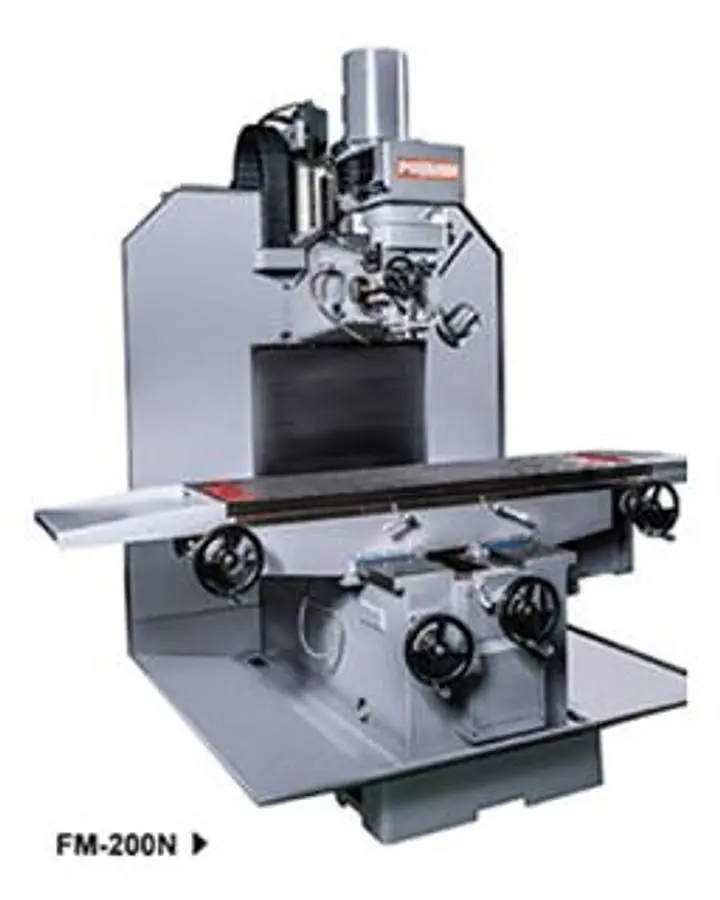

NEW TOP PHOENIX FM-200N

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Working surface: 1400 x 450mm (55-1/8" x 17-11/16") or 1600 x 450mm (63" x 17-11/16")(opt.)
T-slots (size x number x pitch): 18mmx3x100mm (0.708" x 3 x 3.937")
Max. table load: 1000kgs (2210 lbs)
Longitudinal travel (X axis): 1000mm (39-3/8") or 1200mm (47")(opt.)
Cross travel (Y axis): 550mm (21-5/8")
Vertical travel (Z axis): 600mm (23-5/8")
Distance from spindle end to table: 100 ~ 700mm (3-15/16" ~ 27-9/16")
Distance from spindle center to column: 570mm (22-7/16")
Spindle nose taper: NT40
Spindle speeds: 75 ~ 3500 r.p.m. (60HZ) (10 steps) or vari 55 ~ 3600 r.p.m. ; High/Low (Inverter)(opt.)
Quill travel: 140mm (5-1/2")
Quill dia.: Ø105mm (4-1/8")
Quill feeds per revolution of spindle: 0.04 / 0.08 / 0.15 mm/rev. (0.0015" , 0.0030" , 0.0059")
Swiveling angle of head (R&L): 45°
Cutting feed rate: 1 ~1500mm/min (max.)(3 axes)
Rapid traverse: 1.8m/min (max.)(3 axes)
Spindle drive motor: 3.75KW (5HP)
X, Y axes motor: AC servo 0.75KW
Z axis motor: AC servo 0.75KW
Coolant pump: AC 1/8 HP
Machine size: 3150 x 2350 x 2650 mm (124" x 92-1/2" x 104-5/16")
Machine weight: 3300kgs (7293 lbs)
