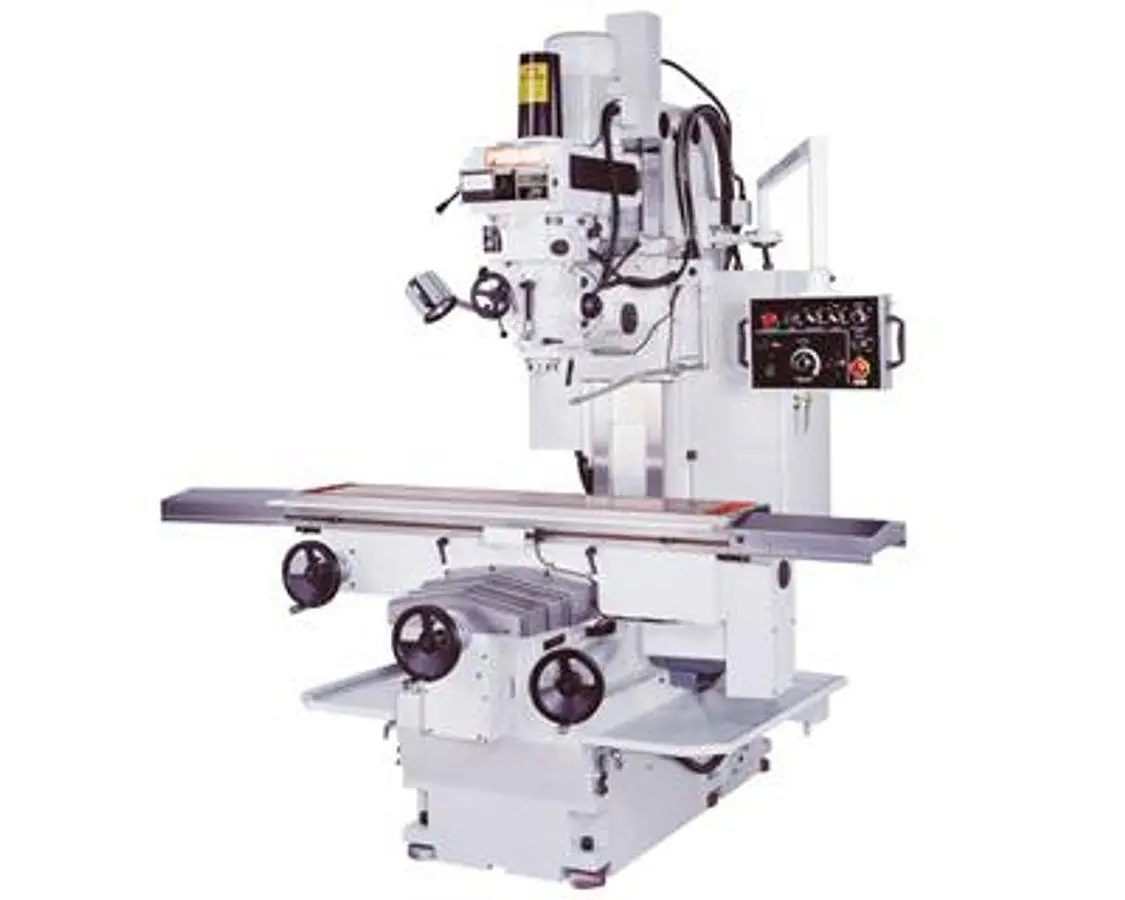

NEW TOP PHOENIX FM-185L

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Working surface: 1470 x 305mm (57-7/8" x 12 ")
T-slots (size x number x pitch): 16mmx3x63mm (0.630" x 3 x 2.480")
Max. table load: 600kgs (1326 lbs)
Longitudinal travel (X axis): 1040mm (40-7/8")
Cross travel (Y axis): 500mm (20")
Vertical travel (Z axis): 560mm (22-1/16")
Distance from spindle end to table: 45 ~ 605mm (1-3/4" ~ 23-13/16")
Distance from spindle center to column: 565mm (22-1/4")
Spindle nose taper: NT40
Spindle speeds: Mechanical operated or inverter operated (opt.) vari 50 ~ 3600 r.p.m. ; High/Low gear
Quill travel: 120mm (4-3/4")
Quill dia.: Ø105mm (4-1/8")
Quill feeds per revolution of spindle: 0.04 , 0.08 , 0.14 mm/rev. (0.0015" , 0.0030" , 0.0055")
Swiveling angle of head (R&L): 45°
Cutting feed rate: vari, 25 ~1200mm/min (X, Y & Z (opt.) axes)
Rapid traverse: 2000 mm/min (X, Y & Z (opt.) axes)
Spindle drive motor: 5 HP or 7-1/2 HP (opt.)
X, Y axes motor: Inverter operated 1/2HP reduction gear motor
Z axis motor: 1/2 HP (power up/down ) or inverter operated, 1/2HP reduction gear motor (opt.)
Coolant pump: 1/8 HP
Machine size: 1750x2430x2520 mm (68-7/8"x95-5/8"x 99-3/16")
Machine weight: 2350kgs (5170 lbs)
