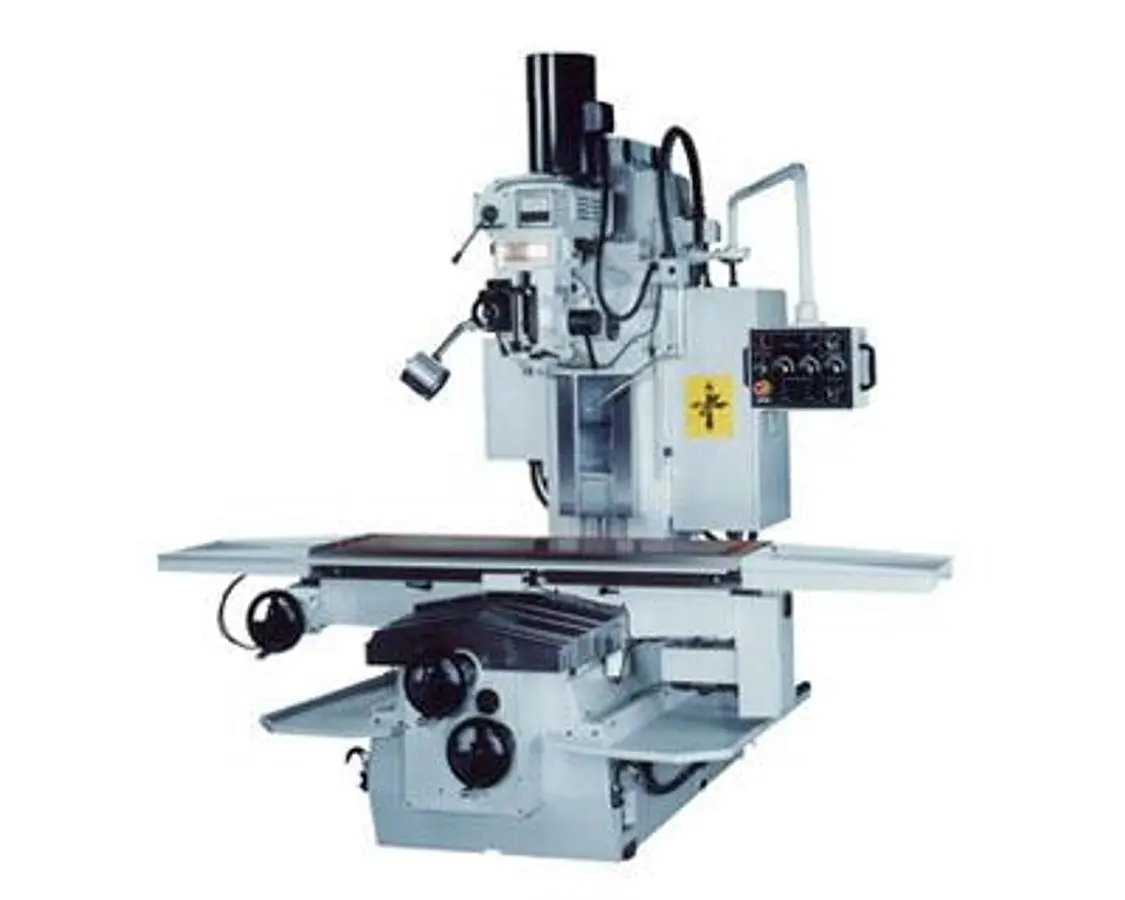

NEW TOP PHOENIX FM-240
Overview
The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Specs
Working surface: 1470 x 380mm (57-7/8" x 14-7/8 ")
T-slots (size x number x pitch): 16mmx3x75mm (0.630" x 3 x 2.953")
Max. table load: 1000kgs (2210 lbs)
Longitudinal travel (X axis): 1200mm (47")
Cross travel (Y axis): 500mm (20")
Vertical travel (Z axis): 630mm (24-3/4")
Distance from spindle end to table: 140 ~ 770mm (5-1/2" ~ 30-1/4")
Distance from spindle center to column: 490mm (19-1/4")
Spindle nose taper: NT40
Spindle speeds: Inverter operated vari 50 ~ 3600 r.p.m. ; High/Low gear
Quill travel: 140mm (5-1/2")
Quill dia.: Ø110mm (4-5/16")
Quill feeds per revolution of spindle: 0.035 , 0.07 , 0.14 mm/rev.
Swiveling angle of head (R&L): 45°
Cutting feed rate: vari, 25~1200 mm/min. (X, Y & Z axes)
Rapid traverse: 2000 mm/min (X, Y & Z axes)
Spindle drive motor: 7-1/2HP
X, Y axes motor: Inverter operated 1/2HP reduction gear motor
Z axis motor: Inverter operated 1/2HP reduction gear motor
Coolant pump: 1/6HP
Machine size: 2050 x 2250 x 2100 mm (80-11/16" x 88-9/16" x82-5/8")
Machine weight: 3100kgs (6944 lbs)
