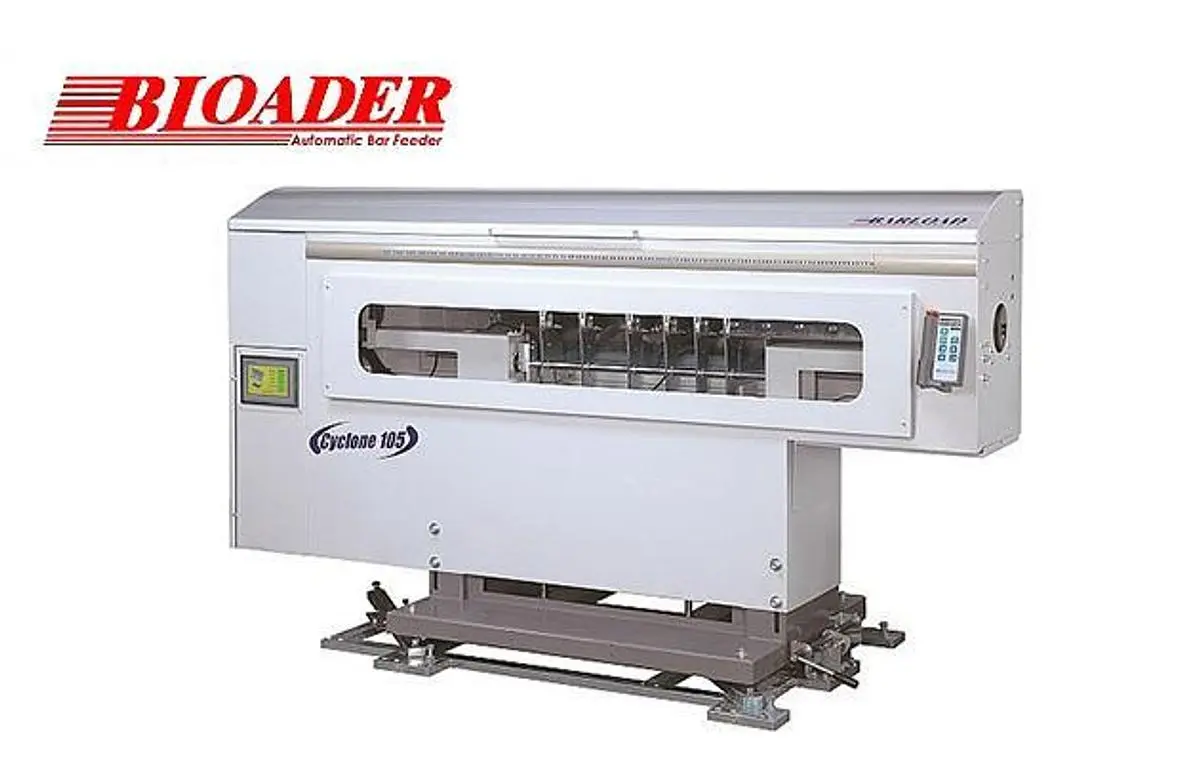

NEW BARLOAD BK105，BK105L
Overview
Increase productivity and reduce manufacturing costs.
No vibrations allow precision machining at high speed.
Stronger mechanical design, max bar diameter up to 105mm.
The servo feeding system permits an accurate positioning bar without a turret stopper.
Adjusting free when bar diameter changes.
External LED displays easily monitor feeding and alarm situations.
A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).
An optical sensor top-cut system features speedy and accurately.
A HMI system with touch screen as user-friendly.
Quickly pusher change-over.
Magazine capacity max size up to 105mm bar x 5 pcs. Movable rail with X axis or Z axis device as optional allowing an easy job on spindle maintenance / service.
A PLC control features stable software applications interfacing with various CNC lathe source.
Specs
Bar Length: 1100mm ，1600mm，depends on entire spindle length.
Machine Weight: 600KG ， 700KG
Bar Diameter: 8mm-105mm
Bar Capacity: 105mm / 5 pcs
Power Supply: 220V
