No adjustment is required for material clamping(patented)

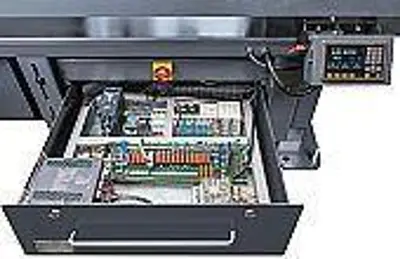

Concealed and safe wiring
A material change is quickly accomplished
Torque and speed are adjustable to meet the requirement
Oil and remnants are separately collected
Equipped with LED external display. During bar feeding, various messages such as "barlength","bar change",feeder error", and "CNC lathe error" are more easily shown,permitting remote momitoring.(Patented)
Mitsubishi PLC fata bank. Feeding position, torque and speed are accurately and perfectly interfaced with lathes.

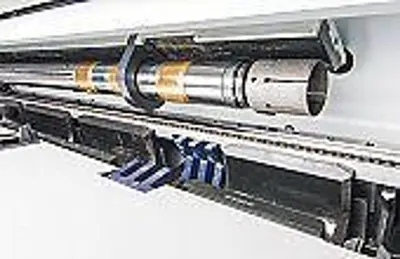

Full size guide channel, easy quick change and less noise
Remote control greatly increases convenience as user friendly
Easy adjusting“ V type ”anti-vibration, without change-over.
A beefed-up clamping structure.

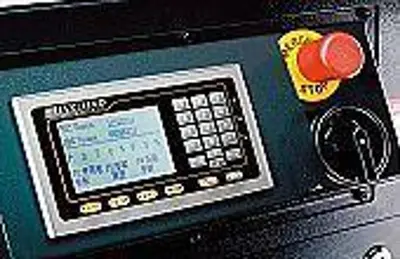

Multi-function features with Human-machine-interface display.Friendly user.
Silent load, free vibration, smooth load, servo motor.
Bar Diameter: 10 - 80 mm
Bar Capacity: 10 mm / 36pcs
Transmission: SERVO MOTOR
Machine Weight: 3.0M - 2100 KG / 3.6M - -2600 KG
Lubricant: FK ISO VG68 FK HYDRAULIC OIL 68
Power Supply: 3φ x 220V 50/60Hz
Power Consumption: 2000W
Air Pressure: 6 kgf / cm² 70psi
