A self-adjustment of clamping device. (Patented)
A bar loading time runs rapidly.
Offers a quick changeover of guide channel sets.
Features lubricant and remnants to work independently. (Patented)
A servo motor feeding system offers speedy & accurate.
Both left and right feeding is available for individual lathe application.
A power metallurgy-made guide channel set is available to choose from. (Optional)
A clamping device functions well to insert bar material stably.
An external LED display features a bar material position while operating.
A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).

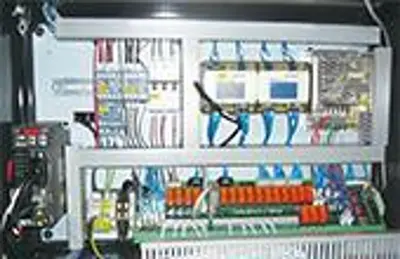

A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.
A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.
A loading system features speed, accuracy, and simple.
An anti-vibration-roller set easily adjust for bar material changeover.
A remote control box is durable and conforms with ergonomics.
PU guide channel sets of BWG model are easy & quick to changeover.
A power metallurgy made guide channel set performs durably. (optional)
Specifications: 2.5M,3.0M
Pu Guide Channel: 11mm,14mm,17mm,19mm,21mm,23mm,25mm
Bar Diameter: 3~10mm,3~12mm,3~16mm, 5~20mm
Steel Guide Channel: 11mm,13mm,17mm,21mm
Bar Capacity: 10mm(3/8”)X22pcs
Bar Length: 2.5M:2700mm,3.0M:3200mm
Machine Weight: 2.5M-270Kg,3.0M-320Kg
Air Pressure: 6Kgf/ cm² 70psi
Transmission: SERVO MOTOR
Lubricant: FK ISO VG68,FK HYDRAULIC OIL 68
Capacity: 30L(7.5 GALLON)
Power Consumption: 630W
Powre Supply: 3Φx220V/50/60Hz
