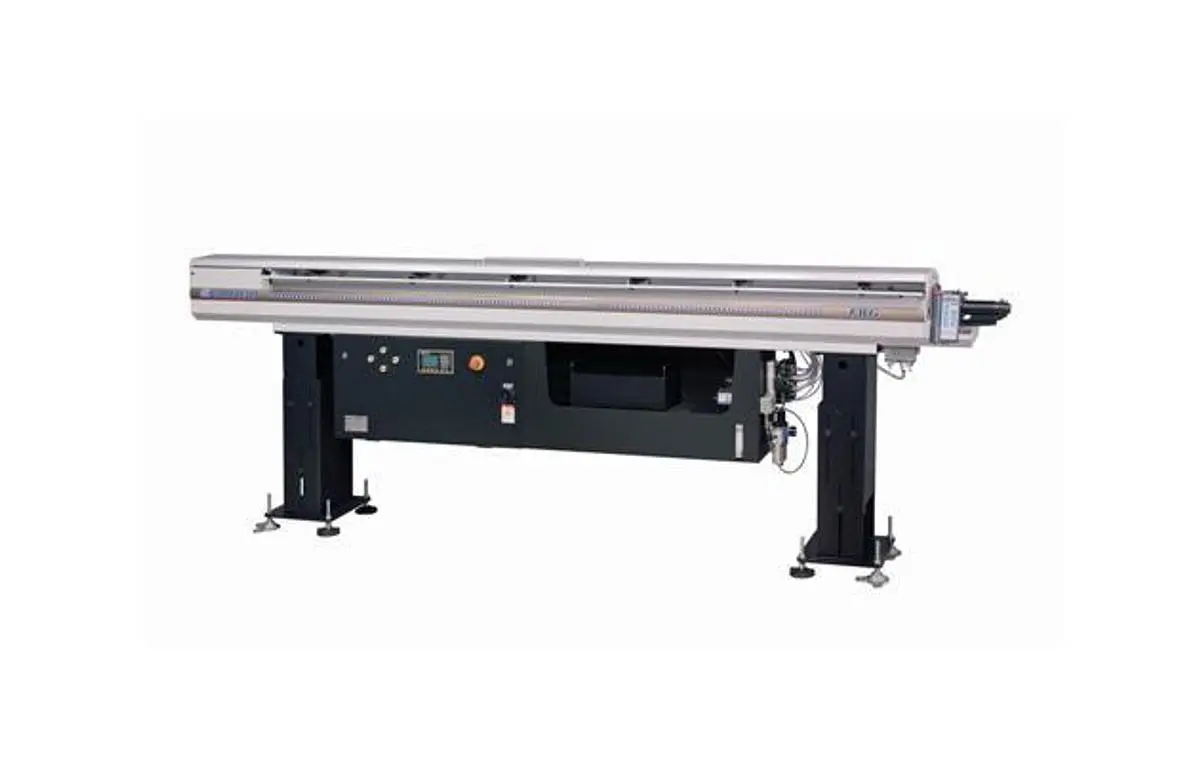

NEW BARLOAD BWG / EWG

EWG，BWG Series Φ3-26mm
A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).
A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.
A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.
A loading system features speed, accuracy, and simple.
A mobile remote control box is user friendly to operate with.
PU guide channel sets of BWG model are easy & quick to changeover.
Powder-metallurgy guide channel sets of EWG model are super durable to run guarantying to provide a longevity ever.wear-resistance, high rigidity, accuracy and durability.
Free adjustment of clamping device while bar material is changed.

Specifications: 2.5M / 3.0M / 3.6M
BWG PU Guide Channel: 11mm，14mm，17mm，19mm，21mm，23mm，25mm，27mm
BWG Bar Diameter: 3~10mm，3~13mm，3~16mm，3~18mm，5~20mm，5~22mm，5~24mm，5~26mm
EWG Steel Guide Channel: 11mm，13mm，17mm， 21mm，24mm，27mm
EWG Bar Diameter: 3~10mm，3~12mm，3~16mm，5~20mm，5~23mm， 5~26mm
Bar Capacity: 10mm(3/8”)X23pcs
Bar Length: Long
Machine Weight: 2.5M–450kg，3.0M–500 kg，3.6M–650 kg
Air Pressure: 6kgf/cm² 70psi
Transmission: SERVO MOTOR
Lubricant: FK ISO VG68，FK HYDRAULIC OIL 68
Capacity: 38L(10 GALLON)
Power Consumption: 630W
Powre Supply: 3φx220V 50/60Hz
Type: Manual
Headstock Type: Sliding
