Adjustment-free for sizing bar materials.(Patented)

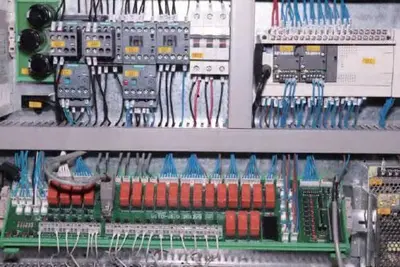

Hidden-and-secured wirings.
Speedy bar-change.
Adjustable torque force and speed.
Well-designed for separating lubricant drain and remnant collection.
A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).
A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.

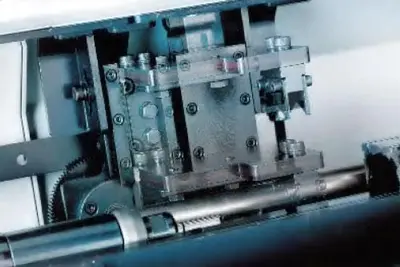

Free adjustment of clamping device while bar material is changed.
A V-shape anti-vibration device ( bush pairs) is one size to fit all in terms of economy and efficiency.
A mobile remote control box is user friendly to operate with.
PLC control, easy to match any CNC lathe, reliable and accurate.
Specifications: 2.5m ， 3.0m ， 3.6m，4.2m
Guide Channel: 21mm， 27mm，33mm，37mm，39mm，43mm
Bar Diameter: 5-20mm，5-26mm，5-32mm，5-36mm，5-38mm，5-42mm
Bar Capacity: 10mm/26 Pcs
Bar Length: Long
Machine Weight: 2.5m – 860kg ， 3.0m – 950kg ， 3.6m – 1060kg
Air Pressure: 6 Kgf / Cm² 70 Psi
Transmission: Servo Motor
Lubricant: Fk Iso Vg68/ Fk Hydraulic Oil68
Capacity: 38l (10 Gallon)
Power Consumption: 810w
Power Supply: 3ø X 220v 50/60hz
Type: Automatic
Headstock Type: Fixed
