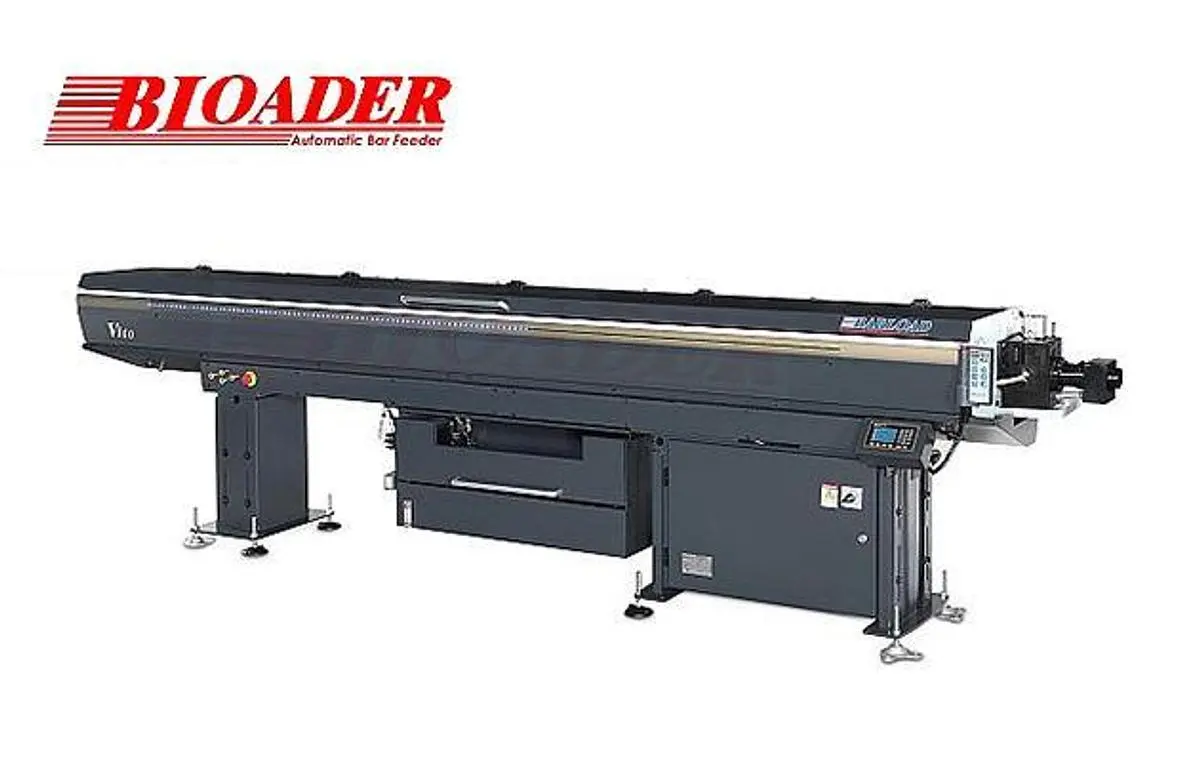

VITO56 φ8mm-56mm
A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).
A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.
Free adjustment of clamping device while bar material is changed.
A V-shape anti-vibration device ( bush pairs) is one size to fit all in terms of economy and efficiency.
A mobile remote control box is user friendly to operate with.

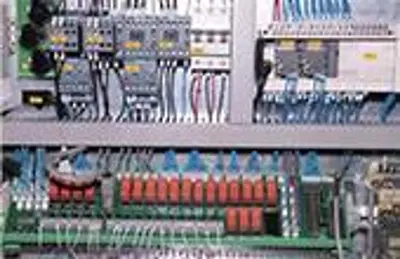

A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.
Specifications: 2.5M ， 3.0M ， 3.6M
Guide Channel: 21mm， 27mm，33mm，37mm，39mm，43mm，46mm，52mm，57mm
Bar Diameter: 5-20mm，5-26mm，5-32mm，5-36mm，5-38mm，5-42mm，5-45mm，8-51mm，8-56mm
Bar Capacity: 10mm/26 pcs
Bar Length: 2700mm，3200mm，3800mm
Machine Weight: 2.5M – 860kg ， 3.0M – 950kg ， 3.6M – 1060kg
Air Pressure: 6 kgf / cm² 70psi
Transmission: SERVO MOTOR
Lubricant: FK ISO VG68/ FK HYDRAULIC OIL68
Capacity: 38L (10 GALLON)
Power Consumption: 810W
Power Supply: 3 X 220V 50/60Hz
