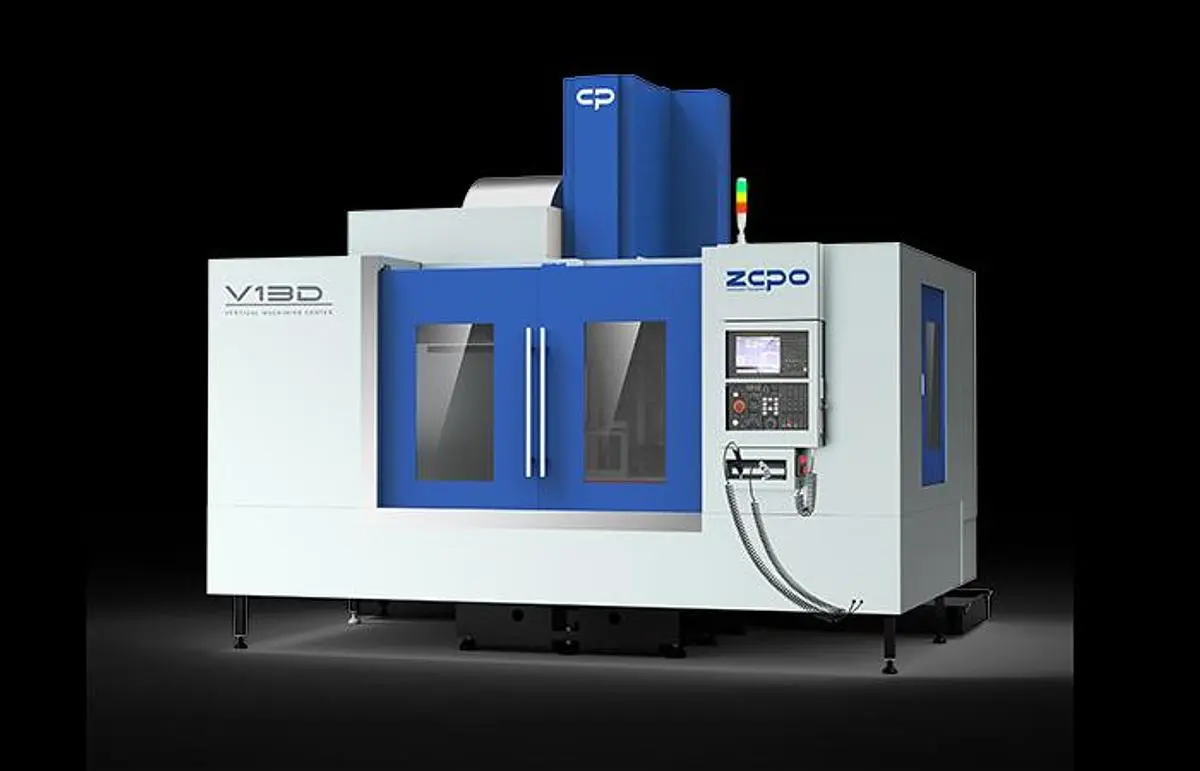

High rigidity, high efficiency, high stability basic structure
Hot sale 8000+ units
Excellent overall performance, high cost performance
The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machines of the same size.
The base adopts a large-span base structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
Built-in spindle for processing molds, aluminum parts, and thin-walled parts
The lightweight design of moving parts realizes the characteristics of high speed, fast feed, high precision, etc., and is particularly suitable for the processing of non-ferrous metal mold parts.
By reducing tool change time and improving the acceleration/deceleration time of all axis feed systems, higher productivity is achieved. It has excellent efficiency and precision in small hole processing, short stroke acceleration/deceleration processing, small line segment curved corner processing and other scenarios.
Superior processing capabilities
The VMC series machines with stable cutting performance are suitable for automotive parts, 3C industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
X/Y/Z axis travel: 1300/700/650mm
Distance from column to spindle center: 762mm
Distance from table surface to spindle nose: 190-840mm
Worktable size: 680x1500mm
T-slot size: 5-18*125mm
Max. load bearing of worktable
Length: 800kg
Spindle hole taper: BBT40
Main motor power: 16/18.5KW
Spindle speed: 16000(built-in)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 30/36/24m/min
Tool magazine capacity: 24T
Max.Tool change time: 2.5S
Machine dimension: 3550*2800*2700mm
Machine weight: 8000kg
