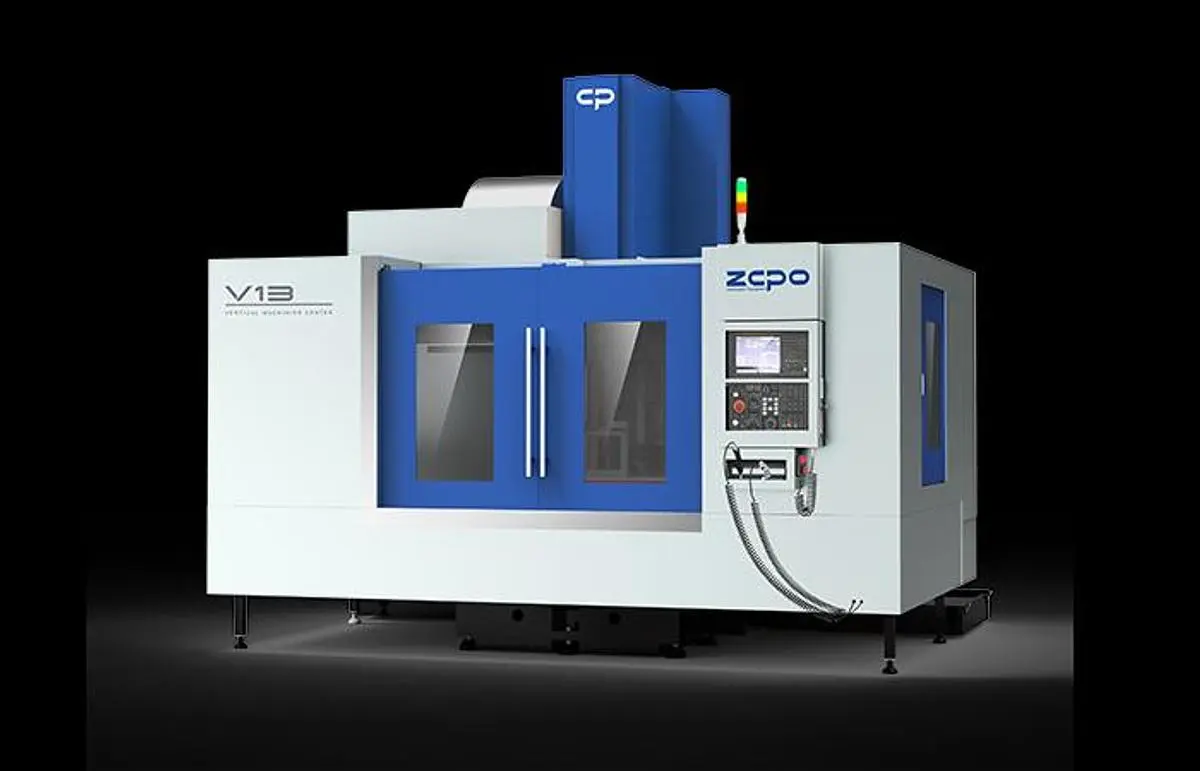

NEW 2026 ZOPO V13

High rigidity, high efficiency, high stability basic structure
Hot sale 8000+ units
Excellent overall performance, high cost performance

The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machines of the same size.
The base adopts a large-span base structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.
Direct spindle
The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly
Greatly improve processing efficiency and quality
Extend tool life and reduce processing costs
Direct-coupled spindle
Superior processing capabilities
Superior processing capabilities
The VMC series machines with stable cutting performance are suitable for automotive parts, 3C industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.

X/Y/Z axis travel: 1300/700/650mm
Distance from column to spindle center: 762mm
Distance from table surface to spindle nose: 200-850mm
Worktable size: 680x1500mm
T-slot size: 5-18*125mm
Max. load bearing of worktable
Length: 800kg
Spindle hole taper: BT40
Main motor power: 7.5/11KW
Spindle speed: 12000(Direct)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 30/36/24m/min
Tool magazine capacity: 24T
Max.Tool change time: 2.5S
Machine dimension: 3550*2800*2700mm
Machine weight: 8000kg
