Overview
Horizontal Table Type Boring Mills
SB MACHINE TOOLSHBA-110T-R2 HBA-110T-R3 HBA135P-R5 HBA-135P-P5

Stock USA

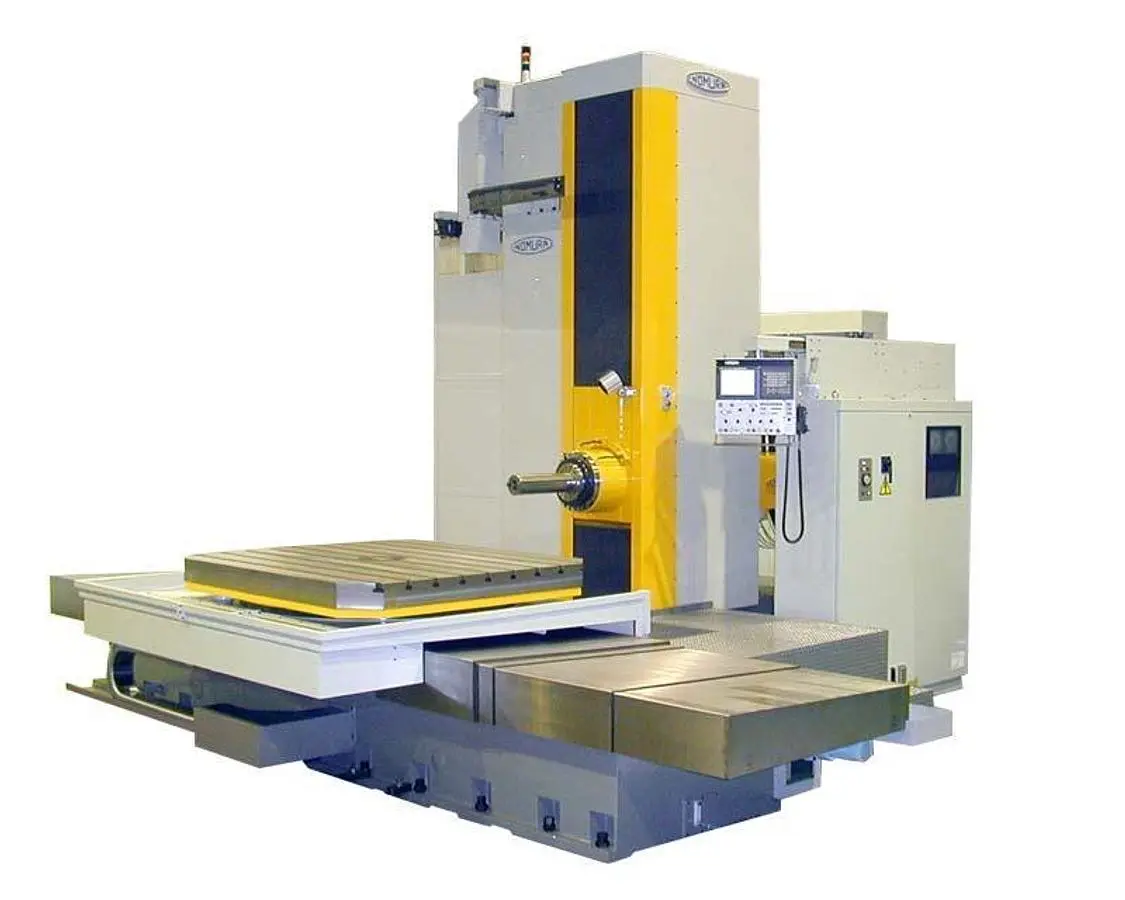

HBA-135 Series CNC Table Type Horizontal Boring and Milling Machine
5.3" spindle diameter
Oversized large diameter ball screws and feed motors
Nitrided hardened, ground and hand-lapped spindle (HRC 67+)
Extra-large spindle bearings with oil-mist cooling device
Full CNC controlled B axis rotary table with double warm
Three ranges of geared-headstock with 60HP spindle motor (2,930 Ft. Lbs)
The bed, the saddle, the column and the table are of high grade FC 300 iron
All the slideways are hardened and ground
The mating surfaces are coated with a fluorine-resin and forced lubricated

Rigid Bed and Saddle

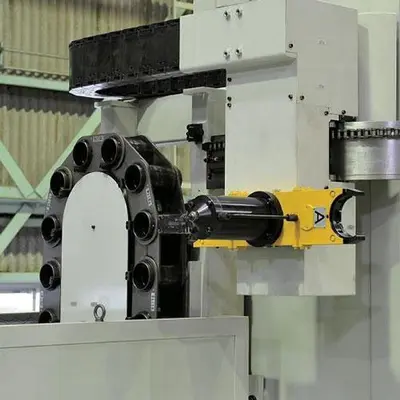

ATC Magazine

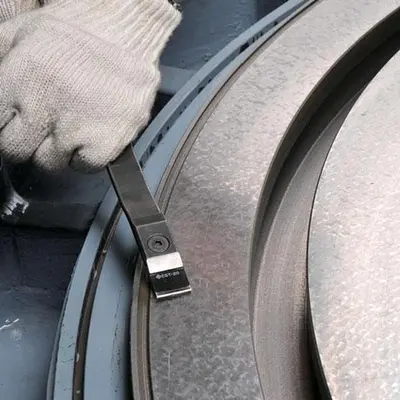

Hand Scraped Slide Ways
Nose Type head stock, extra reach to work piece
Built-in Chip Conveyor

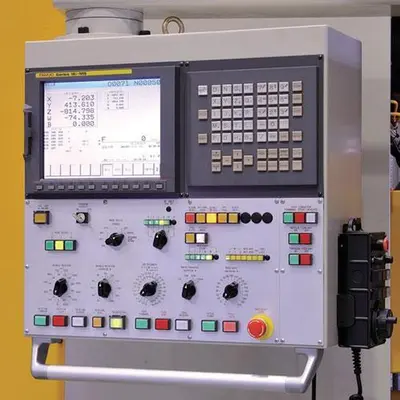

Operator-Friendly Controller (Fanuc)

Specs

Spindle Diameter: 5.31"
Spindle Speed: 3,000 rpm
Spindle Taper: 7/24 Taper No 50
Max. Spindle Torque: 2,922 ft-lbs
Max. Spindle Thrust: 6,609 lbs
X Axis (table cross traverse): 118.1"
Y Axis (headstock vertical travel): 90.5"
Z Axis (column longitudinal travel): 55.1"
W. Axis (spindle travel): 27.5"
Table Size: 70.8" x 78.7"
Max. Load on Table (uniformly distributed load): 33,000 lbs.
Min. Command Indexing Angles on Table (B Axis): 0.001 deg.
Rapid Traverse of X,Y and Z Axes: 393.7"/min
Rapid Traverse of W Axis: 236.2"/min
Feed Rate: 0.004"/min~196.8"/min
Table Rotation Speed: 500 deg/min
Spindle Drive Motor: 60 HP
Machine Height: 182"
Required Floor Space: 265" x 285"
Machine weight: 83,800 lbs
