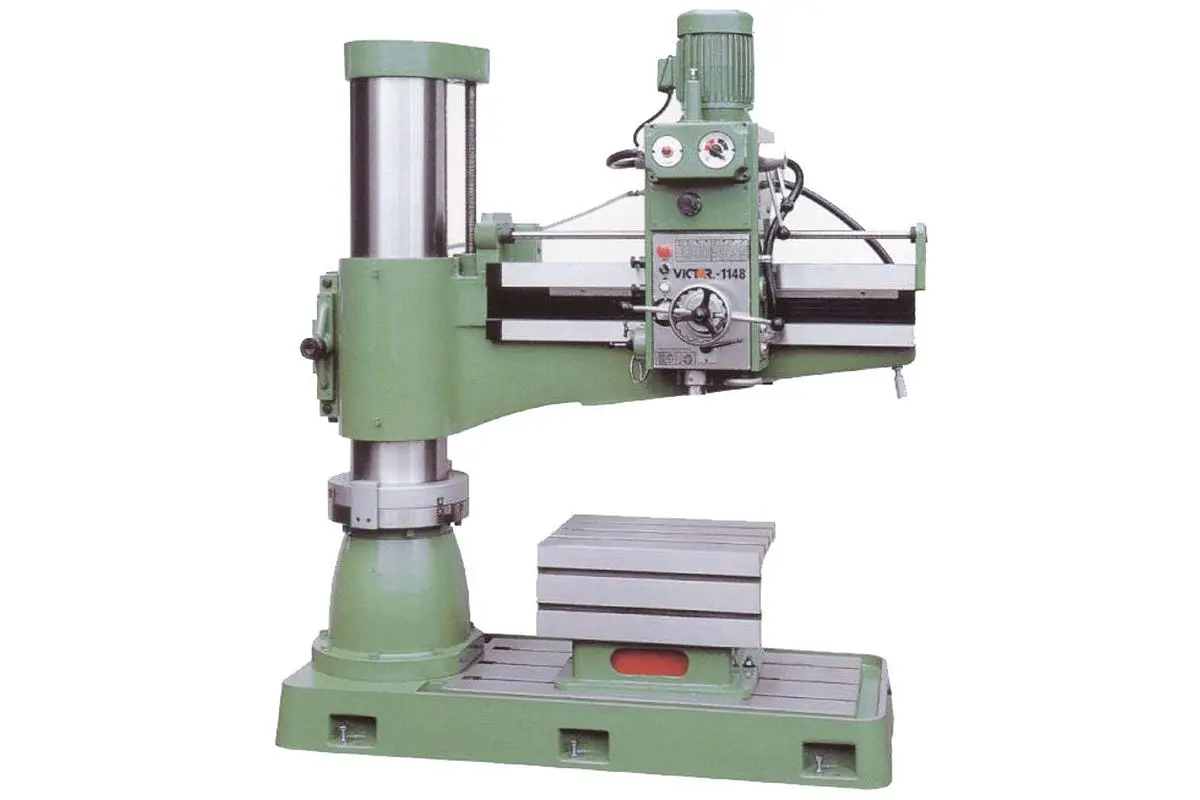

NEW VICTOR MACHINES 1148

FEATURES:
Power elevating motor arm with an anti-fall safety device
Electric clamping of column, arm, and head independently controlled by a push-button switch
Hardened and precision ground arm ways
High speed gears are made of Nickel-Chrome steel and through the heat treatment process and precision grinding
The arm is made of high quality cast iron through the heat treatment process and precision grinding
Bearing bracket of gearbox uses standard bearing for arm slide to provide gearbox smooth movement along arm slide
The spindle is counterbalanced by means of an adjustable block
Limit safety device for operation
Built-in work light
Built-in coolant system

STANDARD ACCESSORIES:
Plain box table
Work light
Coolant system

Type: Radial Drill
Diameter of column: 11.19"
Max. distance column to spindle center: 48.50"
Min. distance column to spindle center: 13.38"
Travel of spindle head: 35"
Max. distance base surface to spindle end: 54"
Min. distance base surface to spindle end: 19.38"
Elevating height of arm: 34.63"
Effective area of box table: 24-3/4" x 20-1/2" x 16-1/2"
Dimensions of base: 67-3/4" x 28" x 6-1/2"
Drill capacity (steel): 1.56"
Drill capacity (cast iron): 2.19"
Tapping capacity (steel): 0.75"
Tapping capacity (cast iron): 0.75"
Boring capacity (steel): 3.38"
Boring capacity (cast iron): 4.75"
Spindle taper: M.T. 4
Spindle travel: 9.875"
Spindle speeds (rpm x steps): 44 ~ 1,500 rpm x 12 steps (44, 77, 88, 141, 154, 228, 282, 398, 456, 750, 796, 1500)
Spindle feeds (rev. x steps): 0.002", 0.0035", 0.0059" x 3 steps
Main motor: 3 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP
Coolant pump motor: 1/8 HP
Machine height from floor: 109-1/2"
Shipping dimensions (LxWxH): 80" x 39" x 89"
Net weight: 4,620 lb.
Gross weight: 4,950 lb.
