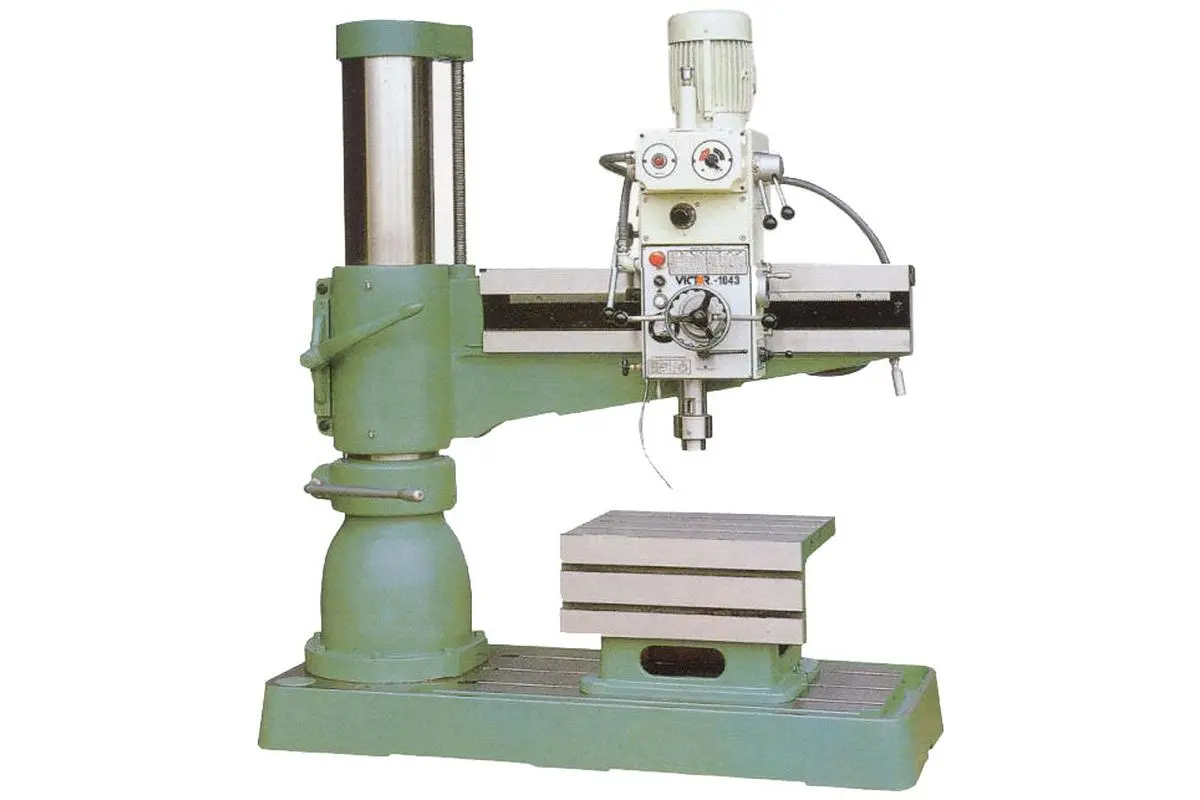

NEW VICTOR MACHINES 1043

FEATURES:
Power elevating motor arm with an anti-fall safety device
Spindle is balanced by means of cylinder shap spring
Hardened and precision ground arm ways
High speed gears are made of Nickel-Chrome steel and through the heat treatment process and precision grinding
Manual clamping of column, arm, and head
Limit safety device for operation
Built-in work light
Built-in coolant system

STANDARD ACCESSORIES:
Plain box table
Work light
Coolant system

Type: Radial Drill
Diameter of column: 10.25"
Max. distance column to spindle center: 43.31"
Min. distance column to spindle center: 9.625"
Travel of spindle head: 33.625"
Max. distance base surface to spindle end: 50.375"
Min. distance base surface to spindle end: 12.625"
Elevating height of arm: 24"
Effective area of box table: 24-3/4" x 20-1/2" x 16-1/2"
Dimensions of base: 67-3/4" x 28" x 6-1/2"
Drill capacity (steel): 1.56"
Drill capacity (cast iron): 2.19"
Tapping capacity (steel): 0.75"
Tapping capacity (cast iron): 0.75"
Boring capacity (steel): 3.38"
Boring capacity (cast iron): 4.75"
Spindle taper: M.T. 4
Spindle travel: 9"
Spindle speeds (rpm x steps): 44 ~ 1,500 rpm x 12 steps (44, 77, 88, 147, 154, 228, 282, 398, 456, 750, 796, 1500)
Spindle feeds (rev. x steps): 0.002", 0.0035", 0.0059" x 3 steps
Main motor: 3 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Coolant pump motor: 1/8 HP
Machine height from floor: 100"
Shipping dimensions (LxWxH): 74" x 34" x 89"
Net weight: 3,960 lb.
Gross weight: 4,290 lb.
