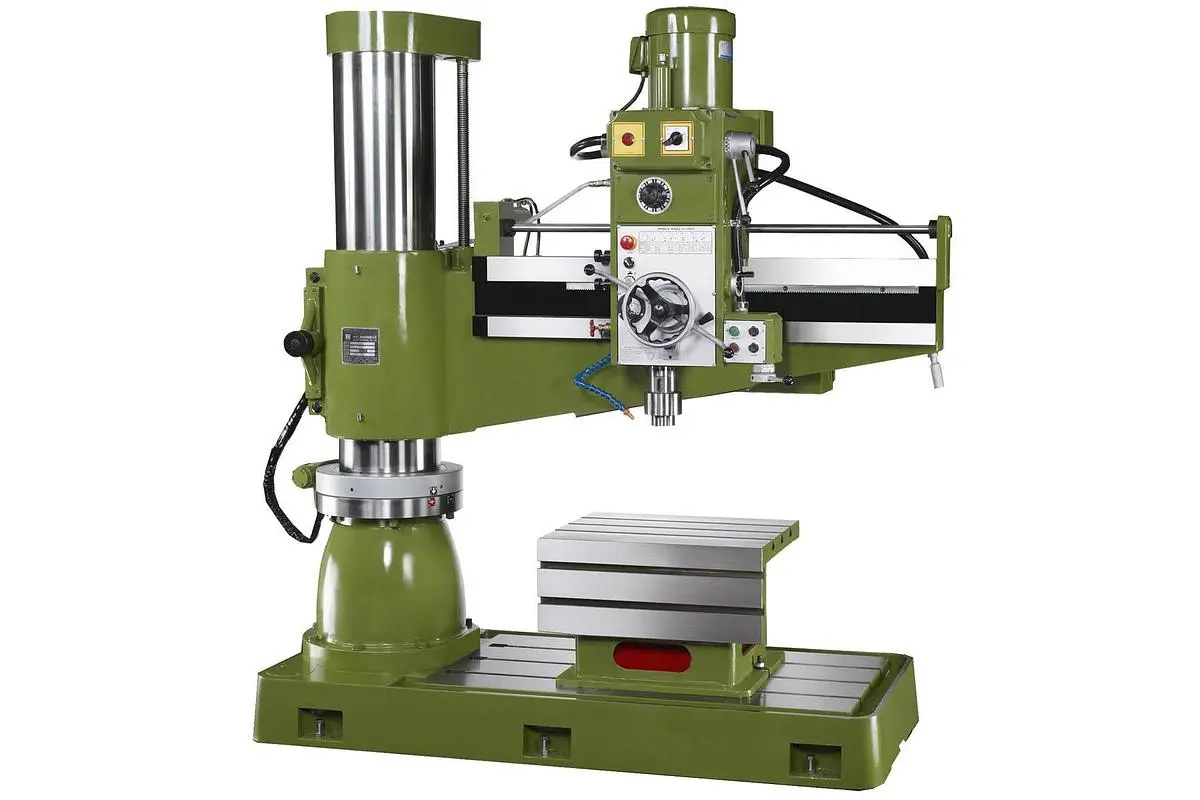

NEW VICTOR MACHINES 1249H

FEATURES:
The hydraulic clamping system of column, arm, and head controlled by a push-button switch
Power elevating motor arm with an anti-fall safety device
Hardened and precision ground arm ways
The arm is made of high quality cast iron through the heat treatment process and precision grinding
The spindle is counterbalanced by means of an adjustable block
Limit safety device for operation
Built-in coolant system
Work light
5 HP 2-speed spindle motor

STANDARD ACCESSORIES:
Plain box table
Work light
Coolant system

Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")
Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")

Type: Radial Drill
Diameter of column: 11.81"
Max. distance column to spindle center: 49.21"
Min. distance column to spindle center: 14.17"
Travel of spindle head: 35.04"
Max. distance base surface to spindle end: 52.95"
Min. distance base surface to spindle end: 17.32"
Elevating height of arm: 24.41"
Effective area of box table: 25" x 20.47" x 16.54"
Dimensions of base: 70.28" x 30.91" x 7.48"
Drill capacity (steel): 1.97"
Drill capacity (cast iron): 2.36"
Tapping capacity (steel): 1.57"
Tapping capacity (cast iron): 1.97"
Spindle taper: M.T. 5
Spindle travel: 10.63"
Spindle speeds (rpm x steps): 56 ~ 1,450 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0024", 0.0039", 0.0079" x 3 steps
Main motor: 5 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP hydraulic
Coolant pump motor: 1/8 HP
Machine height from floor: 104.13"
Shipping dimensions (LxWxH): 82" x 40" x 89"
Net weight: 5,070 lb.
Gross weight: 5,510 lb.
