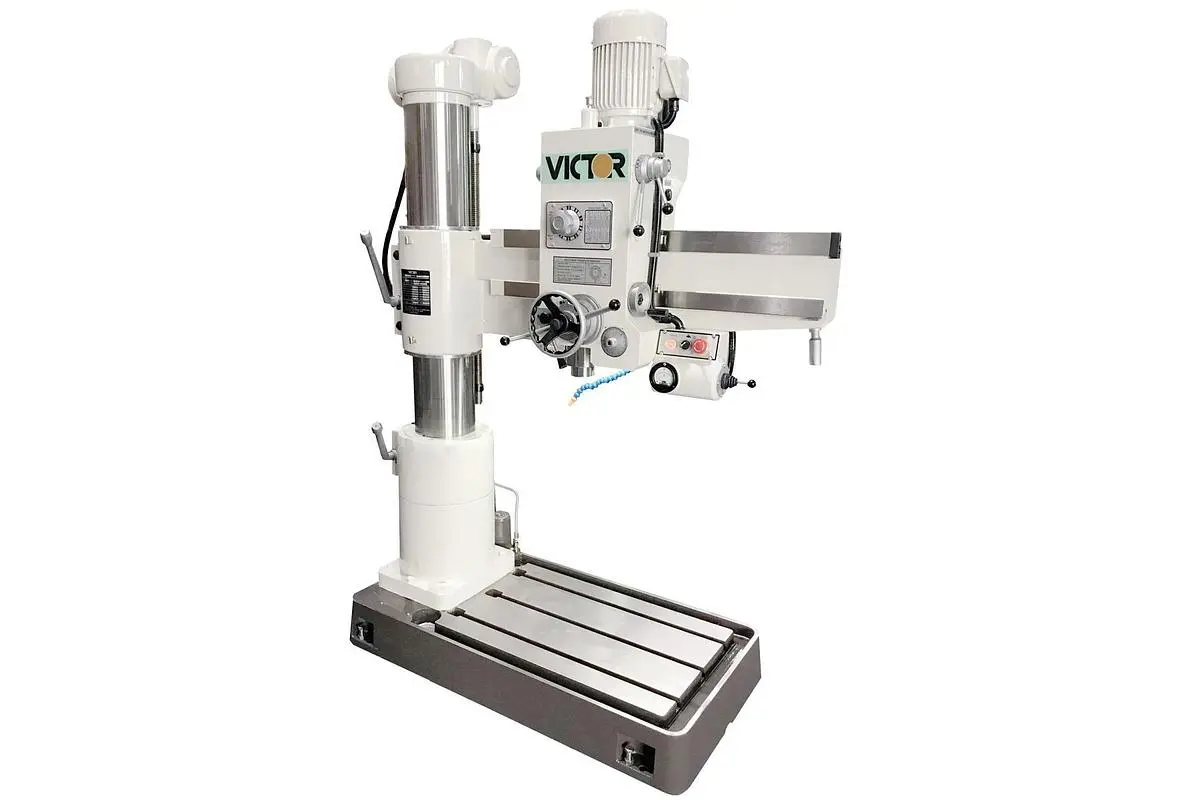

NEW VICTOR MACHINES 829
Overview
FEATURES:
Power elevating motor arm with an anti-fall safety device
Hardened and precision ground arm ways
High speed gears are made of Nickel-Chrome steel and through the heat treatment process and precision grinding
Extra auxiliary dial for spindle feed depth indication to review the momental feed depth of spindle
Special mechanism for spindle balance to avoid the defect on breaking of balance spring
Manual clamping of column, arm, and head
Built-in work light
Built-in coolant system
STANDARD ACCESSORIES:
Plain box table
Work light
Coolant system
Specs
Type: Radial Drill
Diameter of column: 8.25"
Max. distance column to spindle center: 29.50"
Min. distance column to spindle center: 8.625"
Travel of spindle head: 20.875"
Max. distance base surface to spindle end: 41.75"
Min. distance base surface to spindle end: 9.625"
Elevating height of arm: 23.81"
Effective area of box table: 23-7/16" x 17-23/32" x 14-31/32"
Dimensions of base: 49-5/8" x 25-3/16" x 6-9/32"
Drill capacity (steel): 1.25"
Drill capacity (cast iron): 1.97"
Tapping capacity (steel): 0.875"
Tapping capacity (cast iron): 0.875"
Boring capacity (steel): 2.75"
Boring capacity (cast iron): 4.17"
Spindle taper: M.T. 4
Spindle travel: 8.25"
Spindle speeds (rpm x steps): 88, 154, 282, 455, 796, 1500 x 6 steps
Spindle feeds (rev. x steps): 0.002", 0.0035", 0.0059" x 3 steps
Main motor: 2 HP 3 Phase
Elevating motor: 1 HP
Clamping motor: N/A
Coolant pump motor: 1/8 HP
Machine height from floor: 85-7/16"
Shipping dimensions (LxWxH): 64" x 32" x 82"
Net weight: 2,530 lb.
Gross weight: 2,806 lb.
