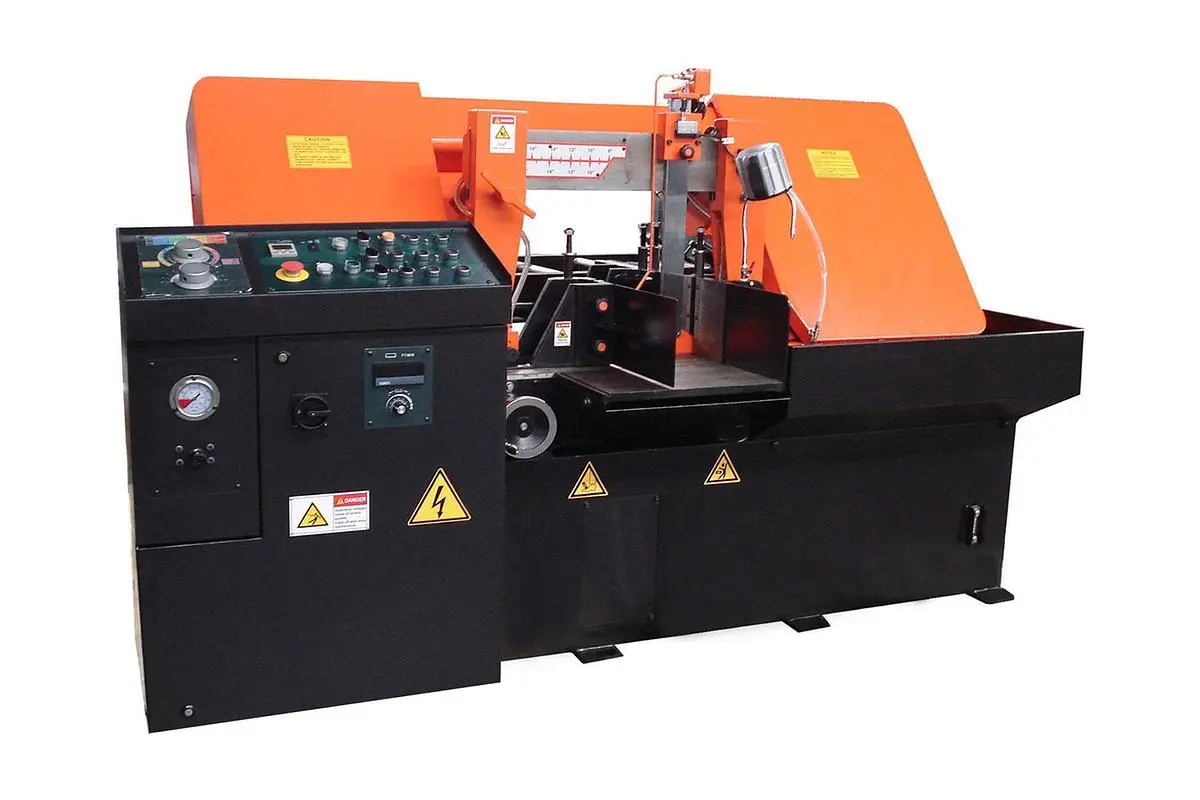

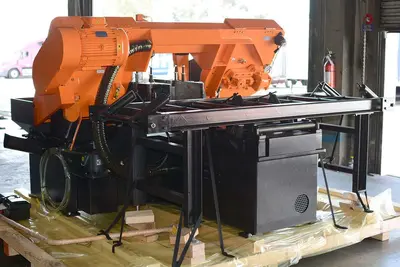

NEW VICTOR MACHINES AUTO-400H

FEATURES:
Pivot type bandsaw

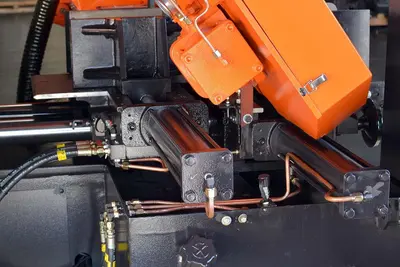

Hydraulic full stroke dual-vise clamping system
Shuttle type automatic feed
Roller bearing with carbide blade guide system
Preset cut counter with shut off
Out-of-stock shut off
Automatic work height control by fast approach bar sensor
Infinitely variable speed control by inverter
Power driven blade cleaning brush
Hydraulic blade tensioning
Floating shuttle vise system
PLC control for all electric and hydraulic functions
Nesting fixture for bundle cutting
Split front vise
Idler wheel motion detector with blade stalling and breakage shut off
Flushing hose for machine cleaning
Work light
Blade speed tachometer
Automatic chip conveyor
NC touch screen control with a self-diagnostic system

STANDARD ACCESSORIES:
NC touch screen control
Automatic chip conveyor
Roller table
Standard saw blade
Work light

Type: Auto Shuttle Vise Horizontal Bandsaw
Round capacity (90º): 16.5"
Rectangular (90º): 16.5" x 16.5"
Speed: 65 ~ 330 fpm
Size: 180" x 1.6" x 0.05"
Tension: Hydraulic
Guides: Roller bearing Carbide guides
Cleaning: Powered wire brush & flood coolant
Blade motor: 7.5 HP 3 Phase
Hydraulic motor: 2 HP
Coolant pump motor: 1/4 HP
Work feeding type: Hydraulic automatic
Vise type: Hydraulic dual-vise clamping system
Dimensions (LxWxH): 91" x 100" x 80"
Gross weight: 5,190 lb.
