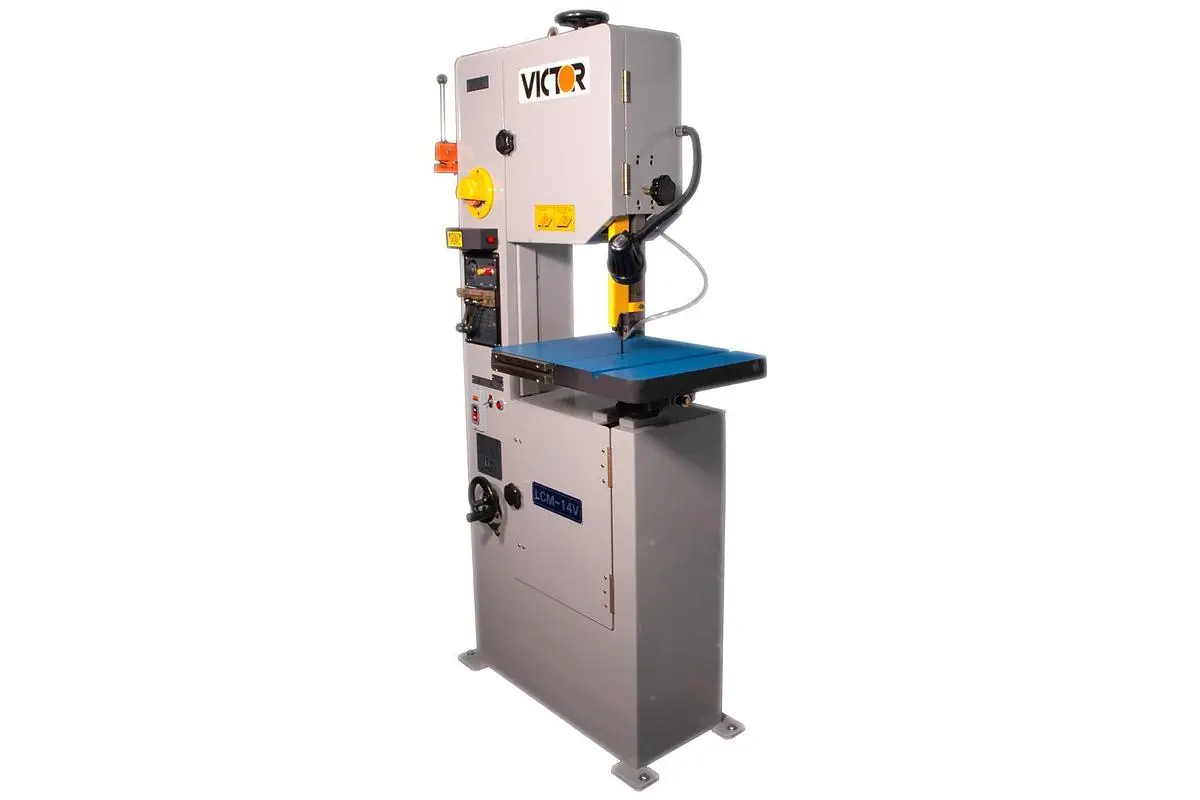

NEW VICTOR MACHINES LCM-14VTS
Overview
Description
FEATURES:
Machine frame is completely enclosed steel construction. Sturdiness design guarantees highest efficiency and quiet operation
4-way tilting heavy cast iron table with T-slot
Easy quick adjustable blade guides firmly support blade
Upper / lower V-type saw guide with ground carbide inserts corresponding to blade size in use. Air nozzle blows off chips as in sawing
Butt welder and annealing unit provides easy welding work
Built-in work light
STANDARD ACCESSORIES:
Saw blade cutter
Saw blade welder
Saw blade grinder
Air nozzle
Halogen work light
Standard saw blade - 1 piece
Rip fence for straight cutting
Miter protractor for angular cutting
Specifications
Type: Vertical Bandsaw (with T-slot Table)
Throat capacity: 14"
Max. thickness: 9"
Table size: 19.50" x 15.25"
Table inclination (4-way): 15°
Speed: 65 ~ 295 fpm
Length: 111-13/16"
Width: 1/8" ~ 5/8"
Butt welder capacity: 1/8" ~ 5/8"
Main motor: 1 HP 3 Phase
Dimensions (LxWxH): 38" x 23" x 73"
Net weight: 540 lb.
Gross weight: 640 lb.
